Using partial-width laminate, Back of card – Zebra Technologies P1013372-001 REV. A User Manual
Page 33

Installation and Setup
Loading the Laminate
P1013372-001 Rev. A
Zebra ZXP Series 8 Card Printer with Laminator
29
Using Partial-Width Laminate

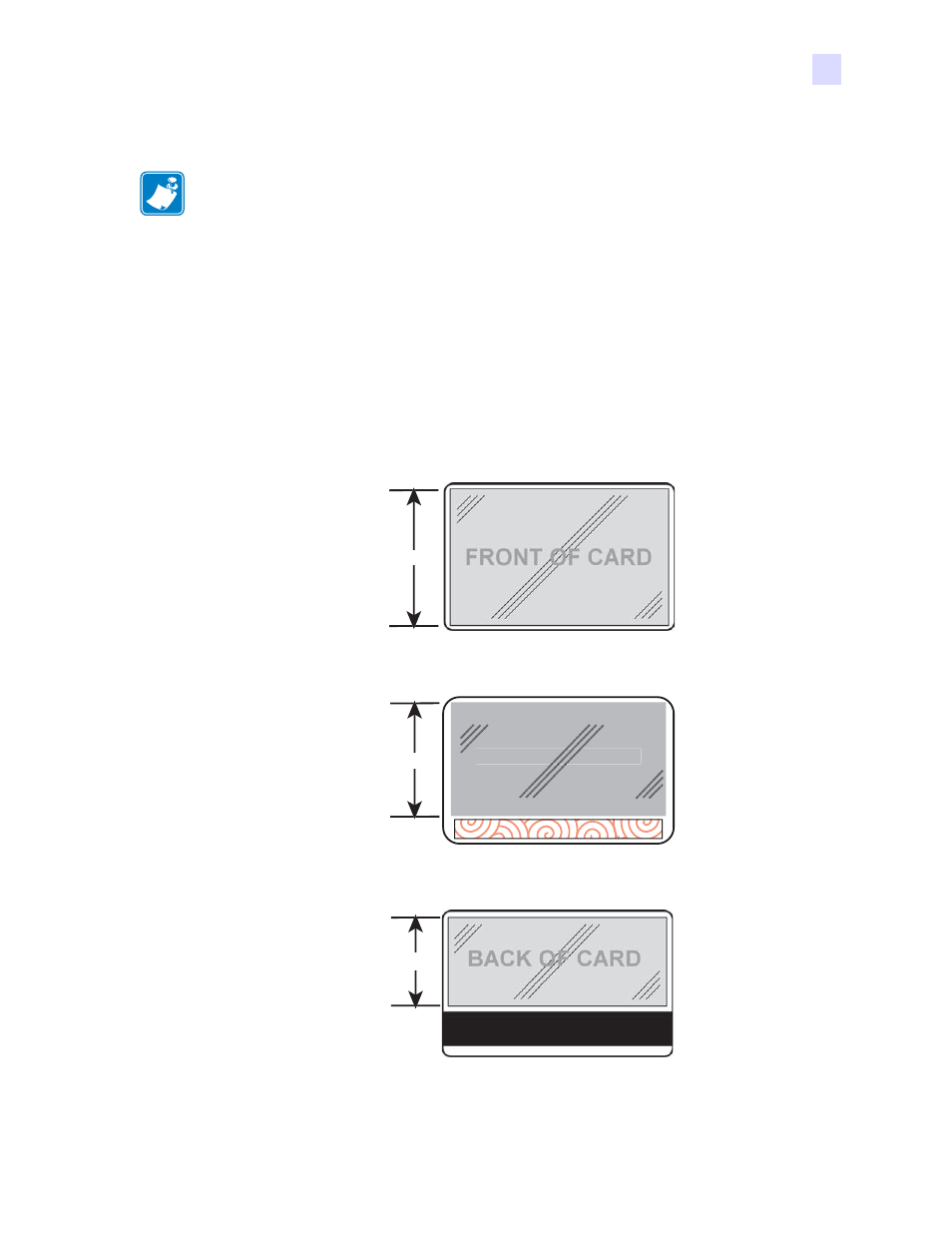

Laminates come in three widths:
“Full-Width” laminate is 2 in (51 mm) wide. The full-width laminate is used on the front (i.e.,
upper) or back (i.e., lower) surface of the card.
“Partial-Width” laminate is available in two widths:
•
1.66 in (42mm) wide laminate is used for cards with a writable signature panel
•
1.33 in (33 mm) wide laminate is used for cards with a magnetic stripe
For either partial-width laminate, a collar on the spool keeps the laminate positioned correctly.
Note •
Since partial-width laminates are only used for the back (i.e., lower) surface of the
card, this section only applies to the dual-sided laminator.
2“
1.3”
BACK OF CARD
BACK OF CARD
OF
OFF
OF
F C
F C
1.66“
Full-Width
Signature Panel
Magnetic Stripe
