Cleaning: laminator media feed rollers – Zebra Technologies P1013372-001 REV. A User Manual

Page 116

112

Zebra ZXP Series 8 Card Printer with Laminator

P1013372-001 Rev. A

Cleaning

Cleaning the Laminator

Cleaning: Laminator Media Feed Rollers

The default cleaning interval is once every 5000 cards.

Step 1.

Select Clean Lam Rollers to run the Laminator Roller Cleaning Routine.

Step 2.

Lift the Laminator Door to its upright position.

Step 3.

Remove the Laminate Cassette(s).

Step 4.

Leave the Laminator Door open

Step 5.

Use the Cleaning Swab in the Laminator Cleaning Kit. Bend the swab to release the

cleaning fluid.

Step 6.

Press Next when ready, then press Top.

Step 7.

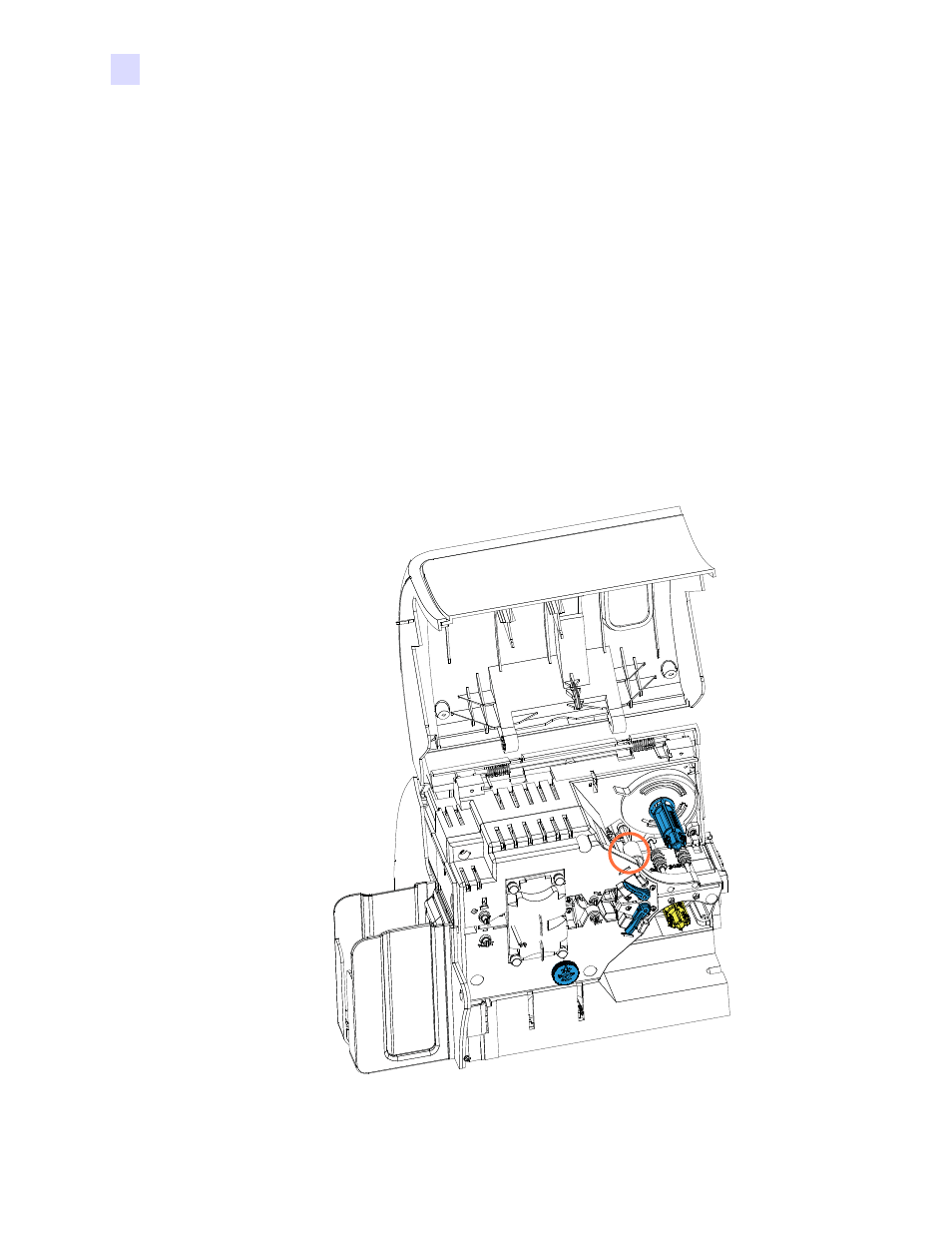

Clean the top media roller (circled below) by moving swab tip side-to-side as it turns

five full revolutions. Only use moderate force.
