DocuTech 128/155/180 HighLight Color Operator Guide 3- 53
Routine maintenance
1. Open the finisher doors.
2. Lift the stitcher panel, which is located directly above the
stitcher spools.
3. Pull the green stitcher head release handle forward and up
until it latches into place, as shown in figure 3-51.

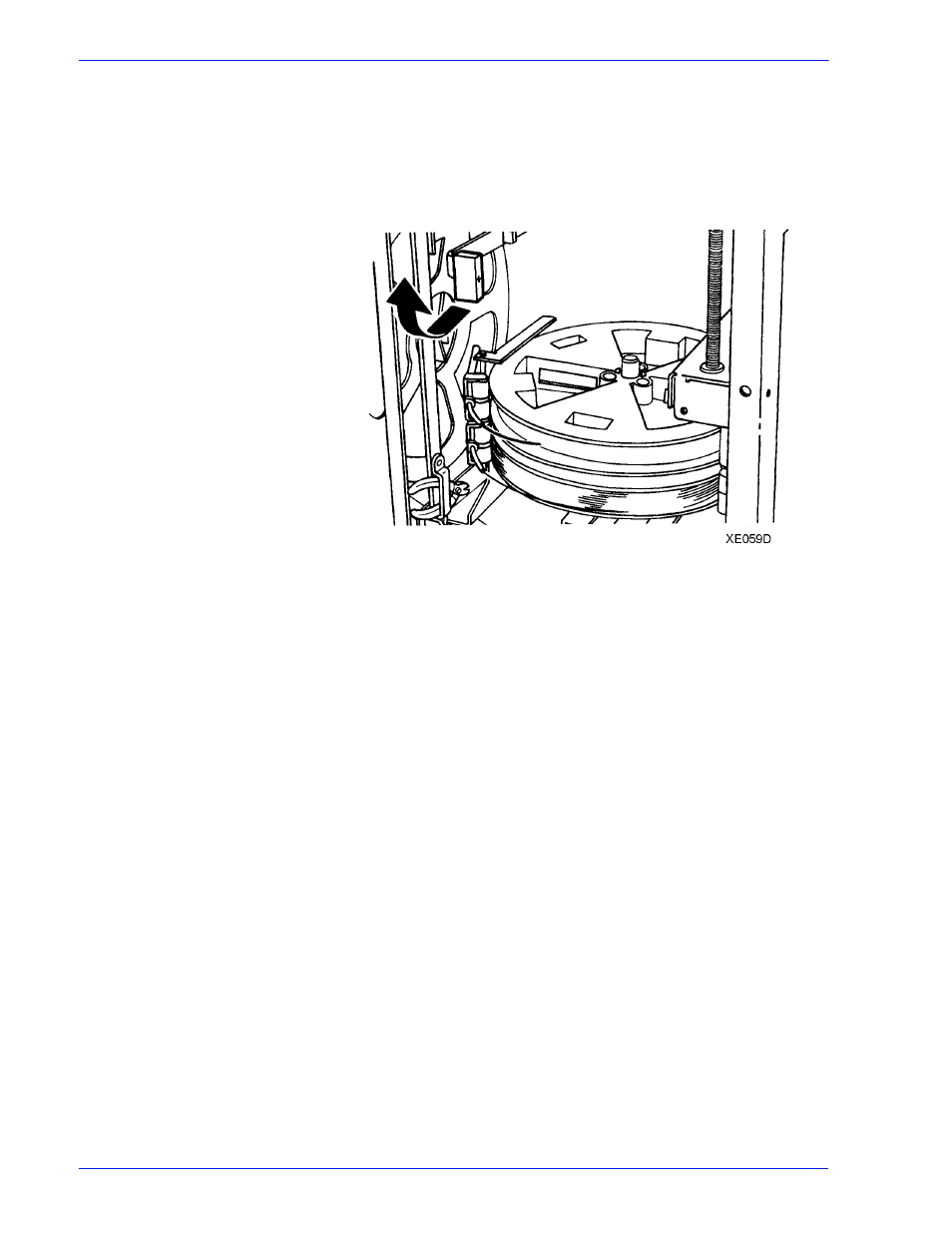

Figure 3-51 Releasing the stitcher head
4. Remove the stitcher wire plug.
a. The stitcher wire plug is located above the binder area, as
shown in figure 3-52.
b. Press and hold down the release clip.
c. Pull the plug out of the stitcher head.
