Xerox 128 - Manual (Page 59)

DocuTech 128/155/180 HighLight Color Operator Guide 3- 13
Routine maintenance

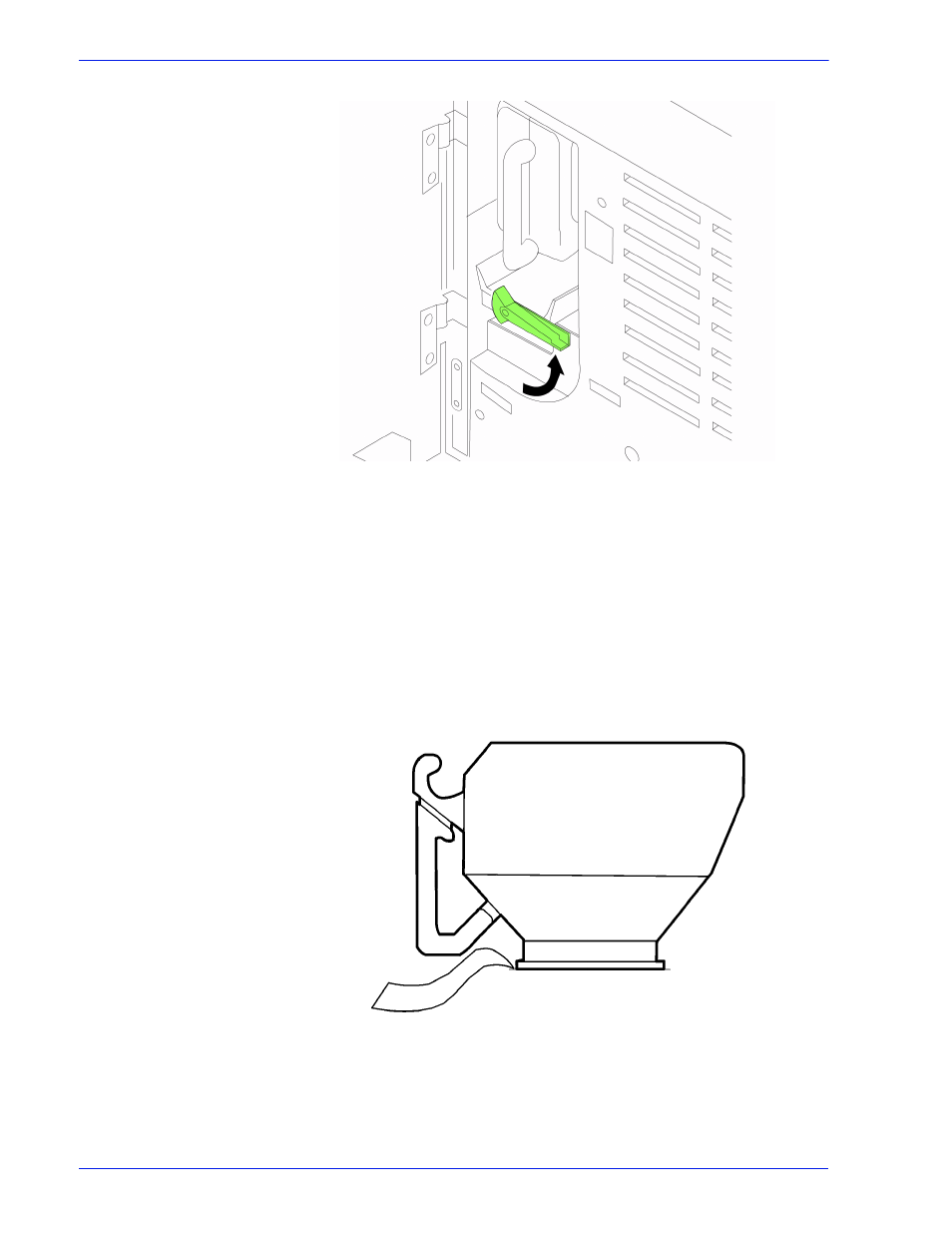

Figure 3-8 Removing the empty bottle
4. To insert a new bottle, place the bottle on the edge of the bottle
guide.
a. With a slow, firm motion push the bottle into the dispense
position over the hopper.
b. Turn a new bottle of dry ink upside down and shake the
bottle thoroughly to loosen the contents. Insert the full
bottle until it stops.
Figure 3-9 Inserting and latching the bottle
c. Slide the full bottle all the way into the system.
d. Hold the bottle in place with one hand and remove the
