3 - 1 8 DocuTech 128/155/180 HighLight Color Operator Guide
Routine maintenance
5. Then, turn the yellow CCU handle a quarter turn clockwise.

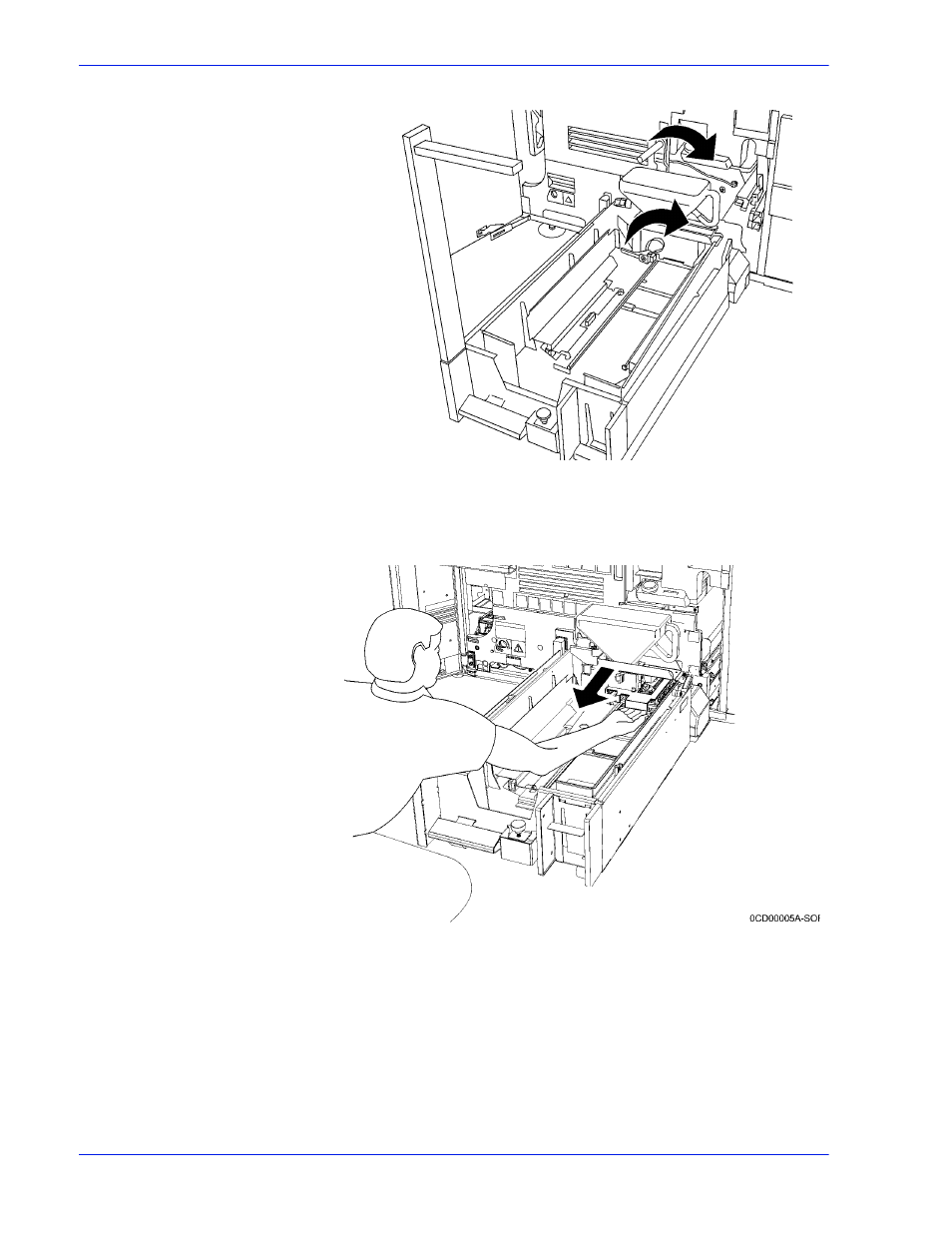

Figure 3-13 Unlatching the CCU
9. Using the metal flange of the color CCU, pull the CCU out of
the printer until it is completely in the cart. The flange is
located directly below the bottle.
Figure 3-14 Removing the CCU from the printer
10. Push down firmly on the cart pedal until you hear or feel a
click. The pallet, which now contains the CCU, is lowered into
