DocuTech 128/155/180 HighLight Color Operator Guide 3- 45
Routine maintenance

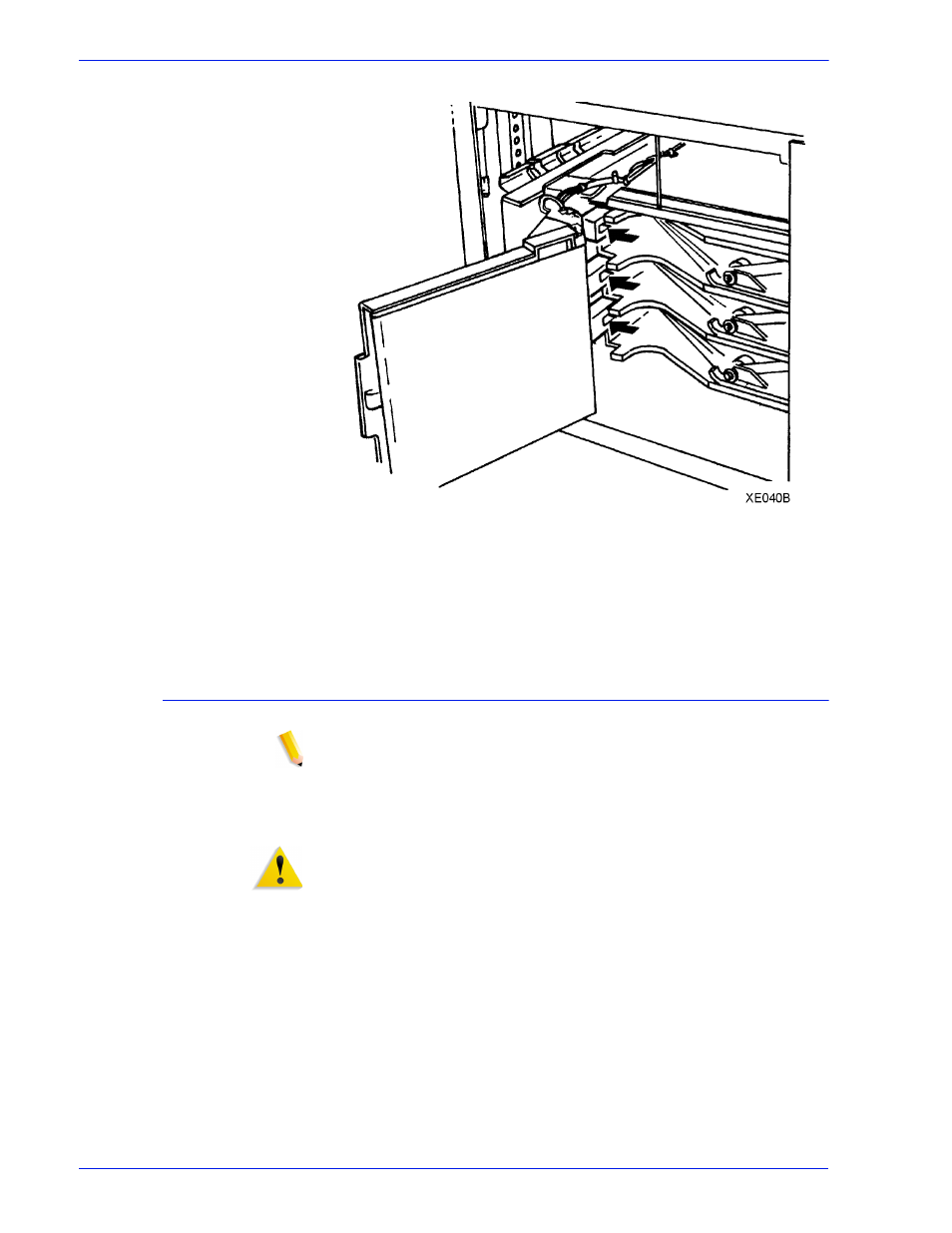

Figure 3-42 Locating the Q1205, Q1206, and Q1207 sensors
4. Brush a folded sheet of paper across each sensor to clear any
obstruction.
5. Close the bindexer and finisher doors.
Clearing the Q1213 sensor
NOTE: Production publisher configuration only
Clearing the Q1213 sensor should be performed only when
directed by a Customer Support Center Representative.
1. Open the finisher doors.
WARNING: The top of the binder is approximately 425°F (218°C).
Do not touch the heated areas or you may get burned. If the
binder has been in a "Ready" condition, allow it to cool for at least
1 hour before continuing the procedure.
2. Grasp the green handle on the binder drawer. Pull the drawer
out until it stops.
3. Locate the Q1213 sensors, as shown in figure 3-43
