DocuTech 128/155/180 HighLight Color Operator Guide 4- 29
Problem Solving
• Fold a piece of copy paper in half lengthwise. Place the
folded sheet of copy paper under the stitcher head, as
shown in figure 4-27.
• Pull out the stitcher knob and allow it to snap back into
place to free any stitcher wire fragments.
• Remove the copy paper carefully, being sure not to drop
any wire fragments into the system.

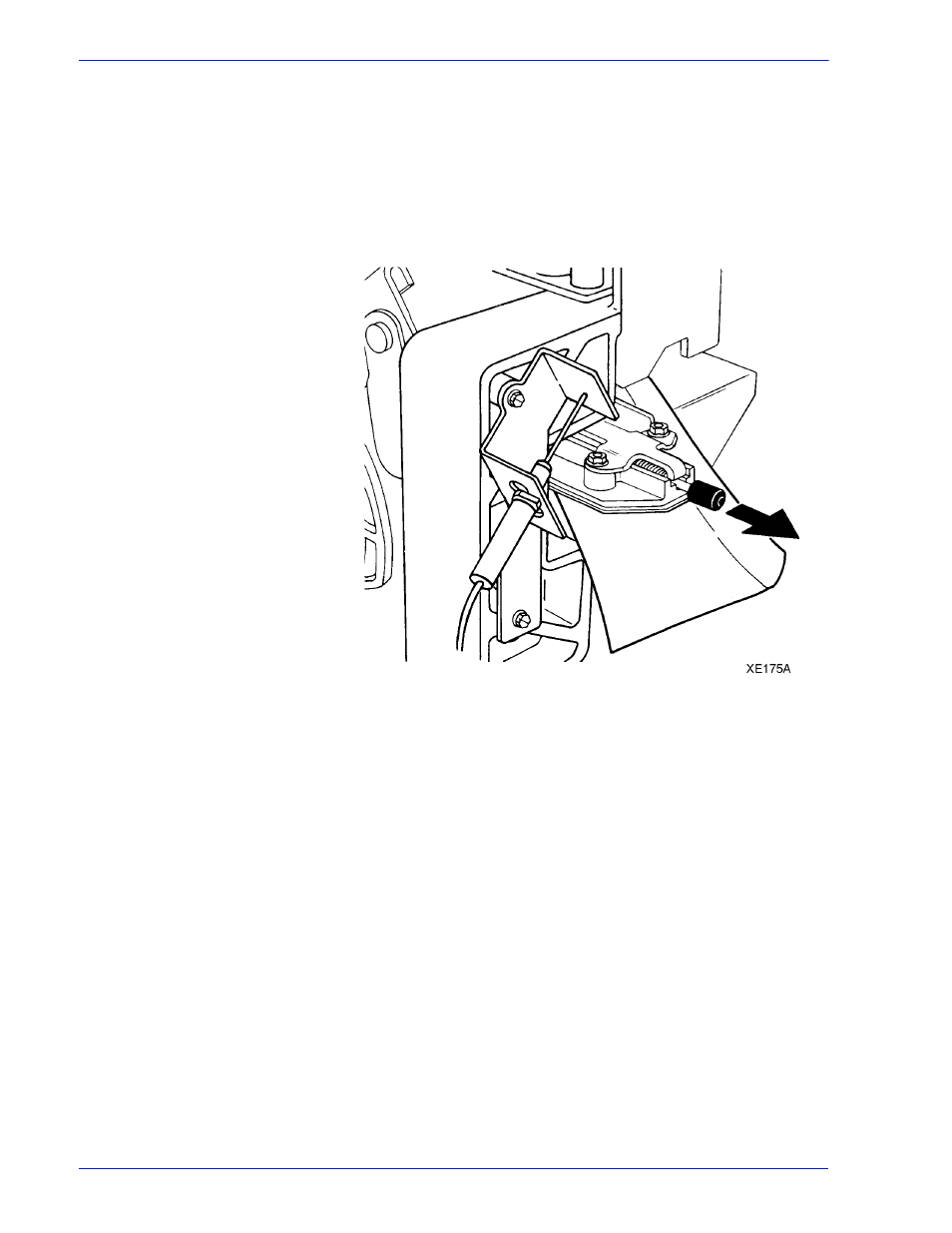

Figure 4-27 Removing the wire fragments
10. Push the green stitcher head release handle down and back.
11. Pull the plug from the measuring bracket.
12. Insert the plug into the stitcher head until the plug snaps into
place.
NOTE: Ensure that the wire cutters are not touching the stitcher
spools. This can prevent the stitcher wire from feeding properly.
13. Place the wire cutters in the storage bracket.
NOTE: Ensure that the stitcher panel has been lowered. The
stacker will not deliver printed sets if the stitcher panel is left in the
up position
14. Lower the stitcher panel.
15. Close the finisher doors. The printer icon indicates "Ready."
