Routine maintenance

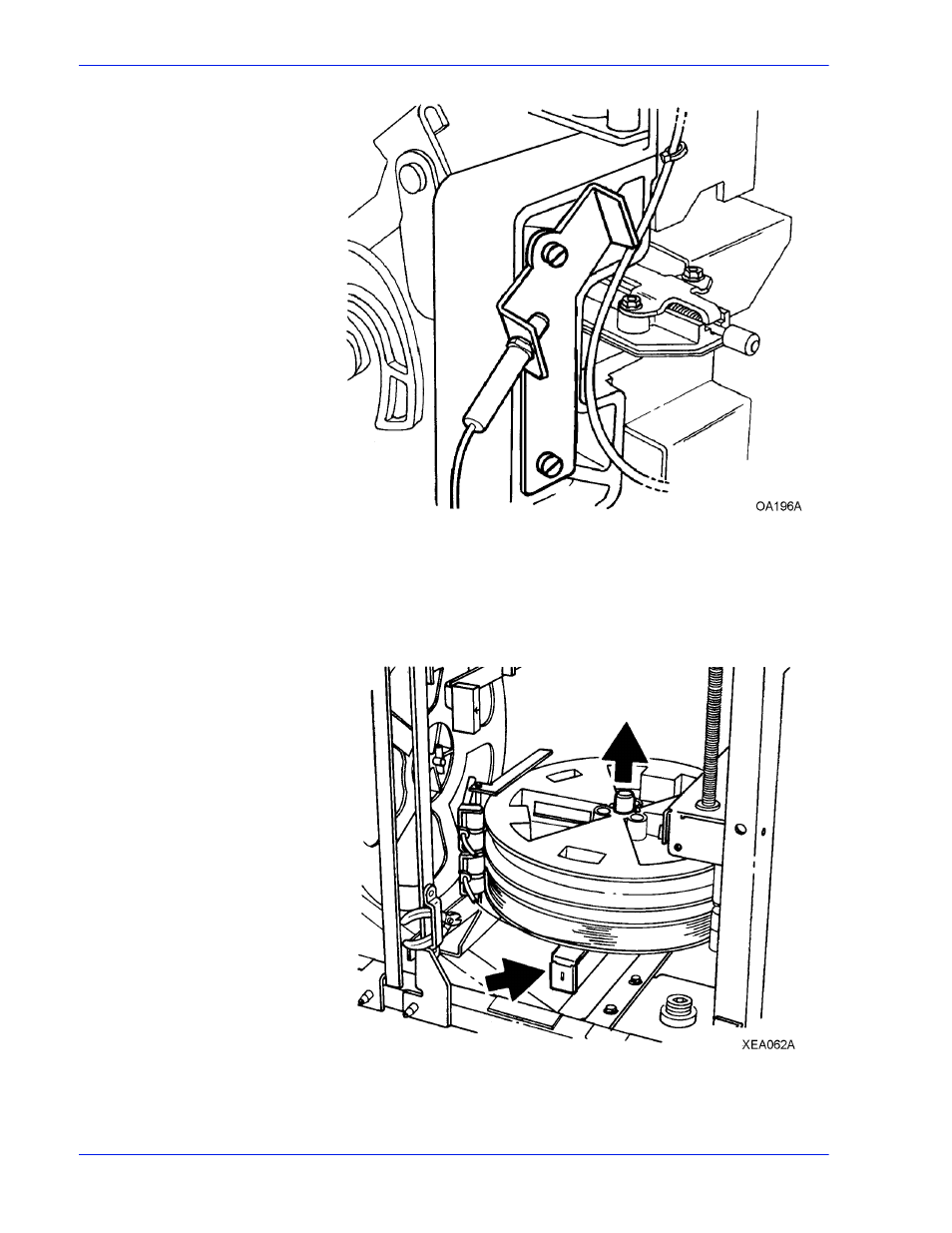

Figure 3-55 The measuring bracket
7. Release and remove stitcher spool A.
a. Locate the green pin release handle under spool B, as
shown in figure 3-56.
Figure 3-56 Removing the stitcher spool pin
b. Pull and hold the handle forward and remove the pin.
c. Release the handle and remove stitcher spool A.
