Technical information

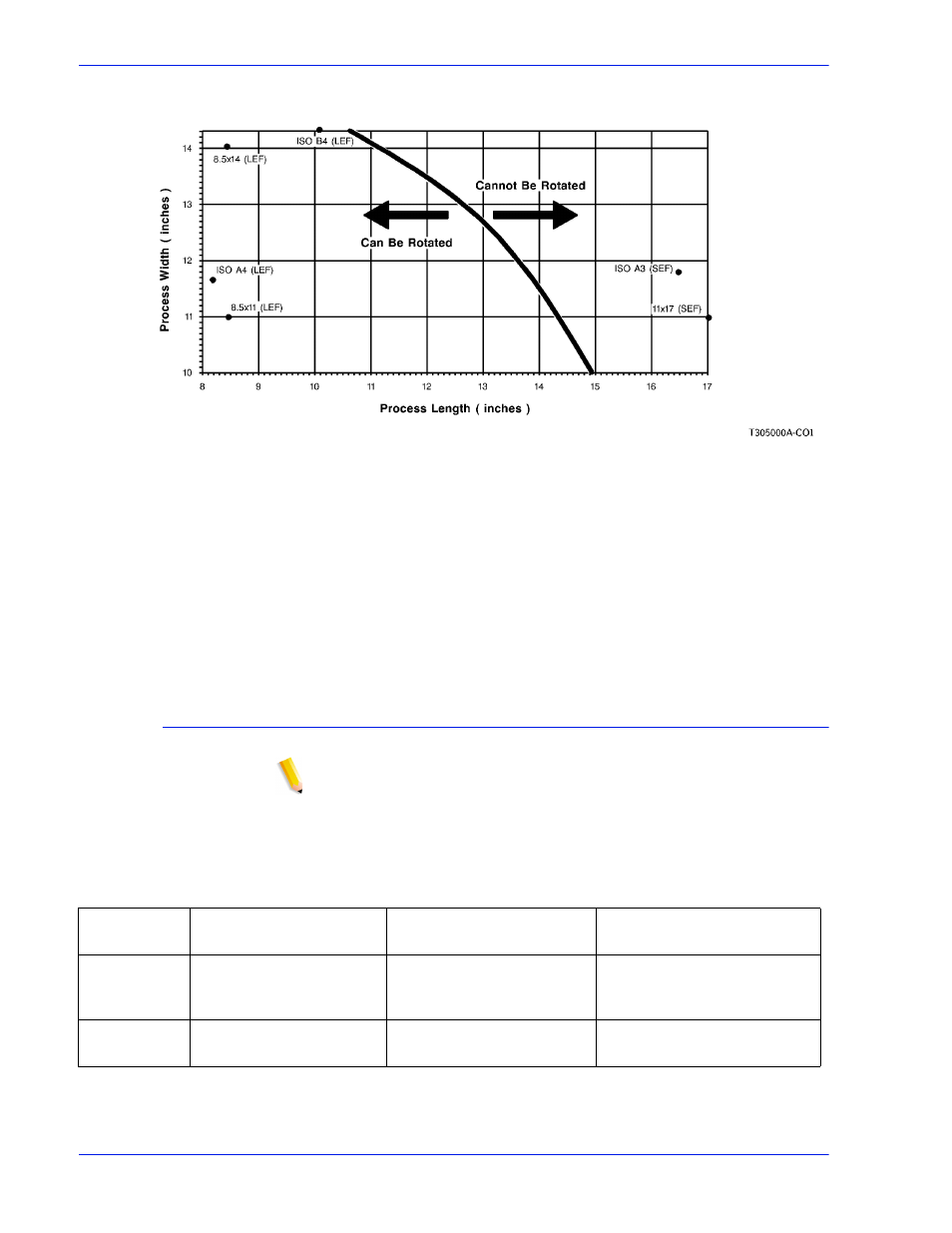

Figure 5-1. Rotatable and non-rotatable sizes (“as loaded”
media size
Sizes whose dimensions are located on the left of the curve or on
the line itself have a diagonal that is less than or equal to 18.0
inches (457 mm) and therefore can be rotated. Those sizes whose
dimensions are located to the right of the curve have diagonals
greater than 18.0 inches (457 mm) and therefore cannot be
rotated. Some common ISO sizes and US sizes are shown on the
graph as examples.
Finisher satisfaction guides
NOTE: Production publisher configuration only
The following guides summarize the stacker, stitcher, binder, and
top tray capabilities.
Table 5-10. Stacker capacity
Stock
Reliable stacking may be
expected Less reliable stacking may
be expected
Suggested alternatives
Size 8 x 10 inches to 9 x 14
inches (203 x 254 mm to
229 x 356 mm) Use the top tray for larger
sizes
Weight Substance 16 to 20 (60 to
75 g/m2) Weights outside the limits
shown are not recommended.
