DocuTech 128/155/180 HighLight Color Operator Guide
Routine maintenance

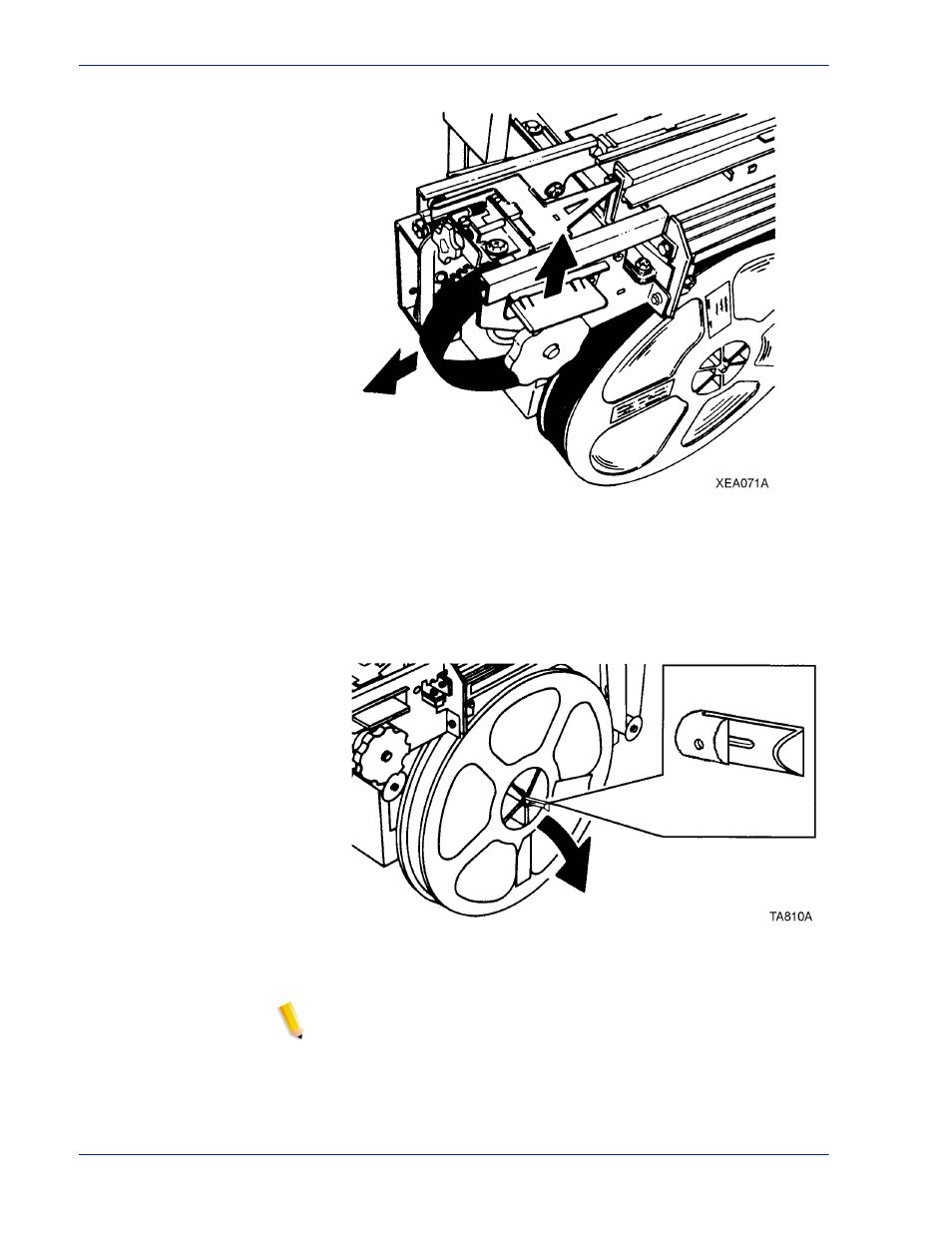

Figure 3-63 Removing the tape
b. Rewind the tape onto the tape reel.
4. Slide the tape reel off the tape reel drive.
a. Move the reel retainer in the center of the reel to the
horizontal unlocked position.
Figure 3-64 Unlocking the reel
b. Remove the tape reel.
NOTE: Ensure that the larger center hole in the reel faces the
drive.
5. Slide the new tape reel onto the tape reel drive.
a. If necessary, rotate the tape reel slightly until it clicks into
position.
