DocuTech 128/155/180 HighLight Color Operator Guide
3- 41
Routine maintenance

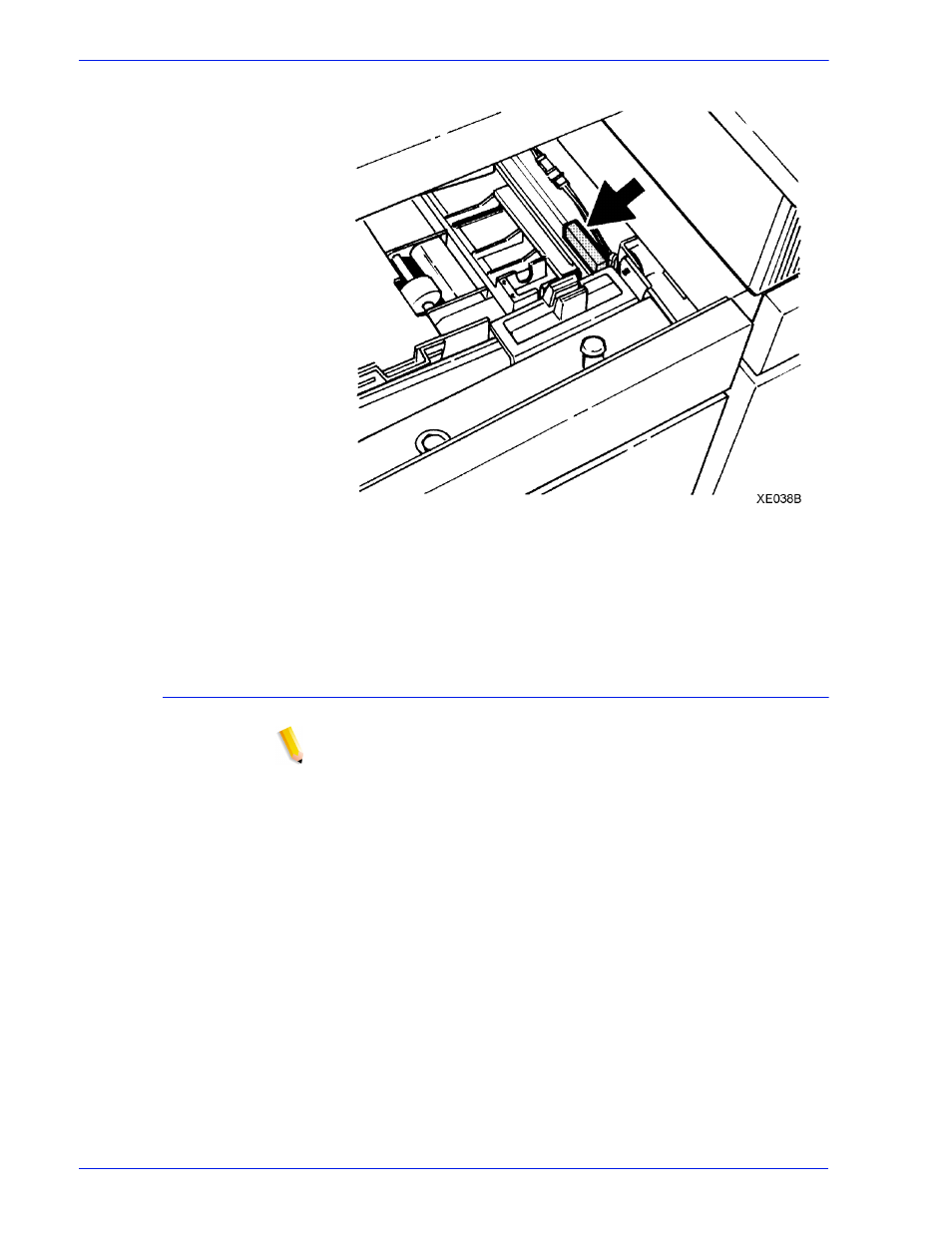

Figure 3-37 Locating the Q1201 sensor
3. Brush a folded sheet of paper under the sensor to clear any
obstructions.
4. Close the processor cover.
Clearing the Q1202 and Q1203 sensors
NOTE: Production publisher configuration only
Clearing the Q1202 and Q1203 sensors should be performed only
when directed by a Customer Support Center Representative.
1. Open the finisher top cover.
2. Locate the Q1202 and Q1203 sensors, as shown in figure 3-
38.
