DocuTech 128/155/180 HighLight Color Operator Guide 2- 21
System components
Production publisher paper path
The following figure shows the path the paper takes through the
production publisher.

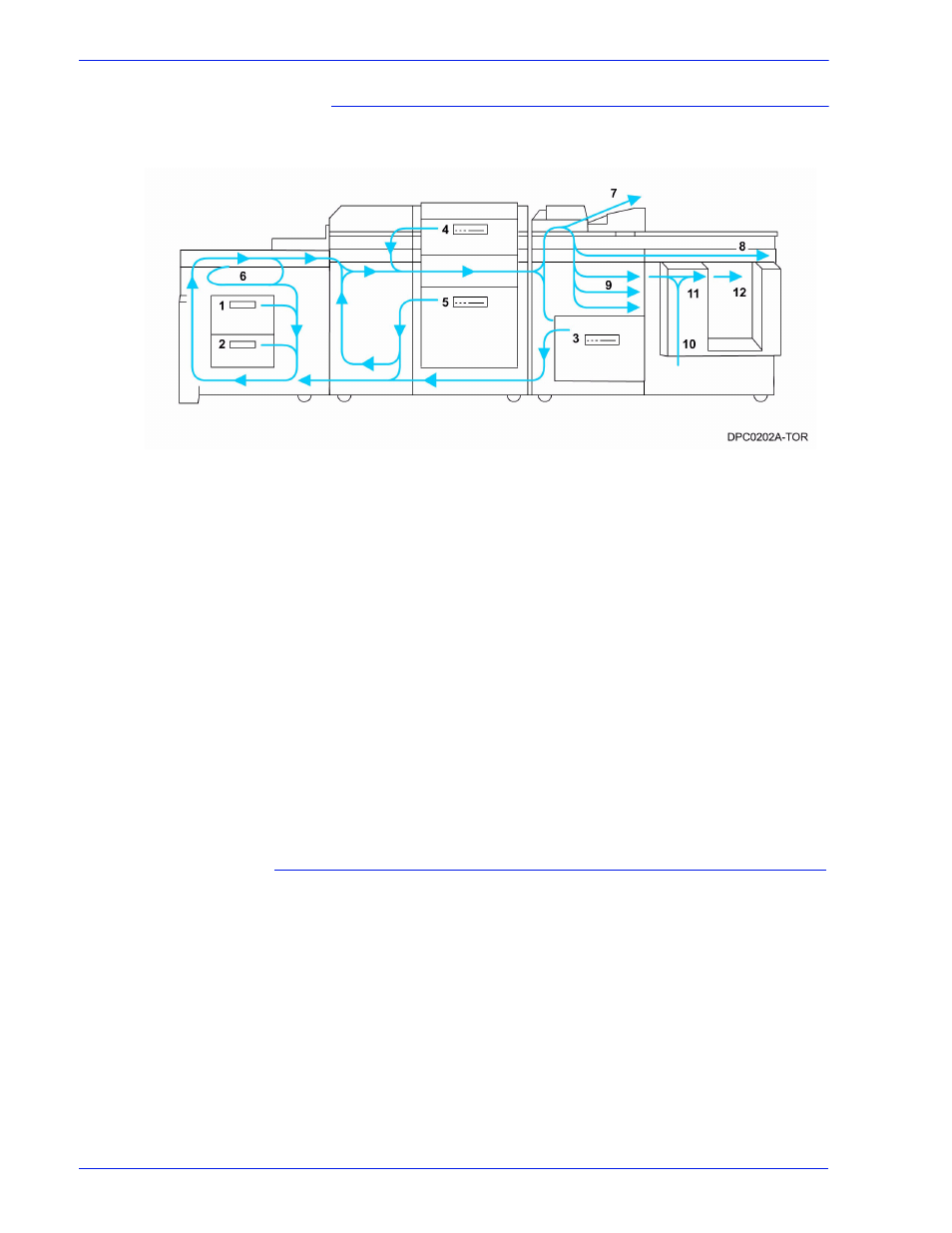

Figure 2-12. Route of paper through the production publisher
1. Processor feeder tray 1
2. Processor feeder tray 2
3. High capacity paper tray
4. Paper inserter tray
5. High capacity paper tray
6. Duplex inverter
7. Purge tray
8. Bypass transport
9. Bindexer area
10. Bind area
11. Stitch area
12. Stacker area
Bypass transport paper path
The following figures show the paper path through the bypass
transport, viewed from the front of the printer.
