DocuTech 128/155/180 HighLight Color Operator Guide 3- 57
Routine maintenance
8. Install the new stitcher spool.
a. Slide the new stitcher spool into position with the paper
wrapper still in place.
b. Replace the stitcher spool pin. Push it down until it locks
into place, as shown in figure 3-57.

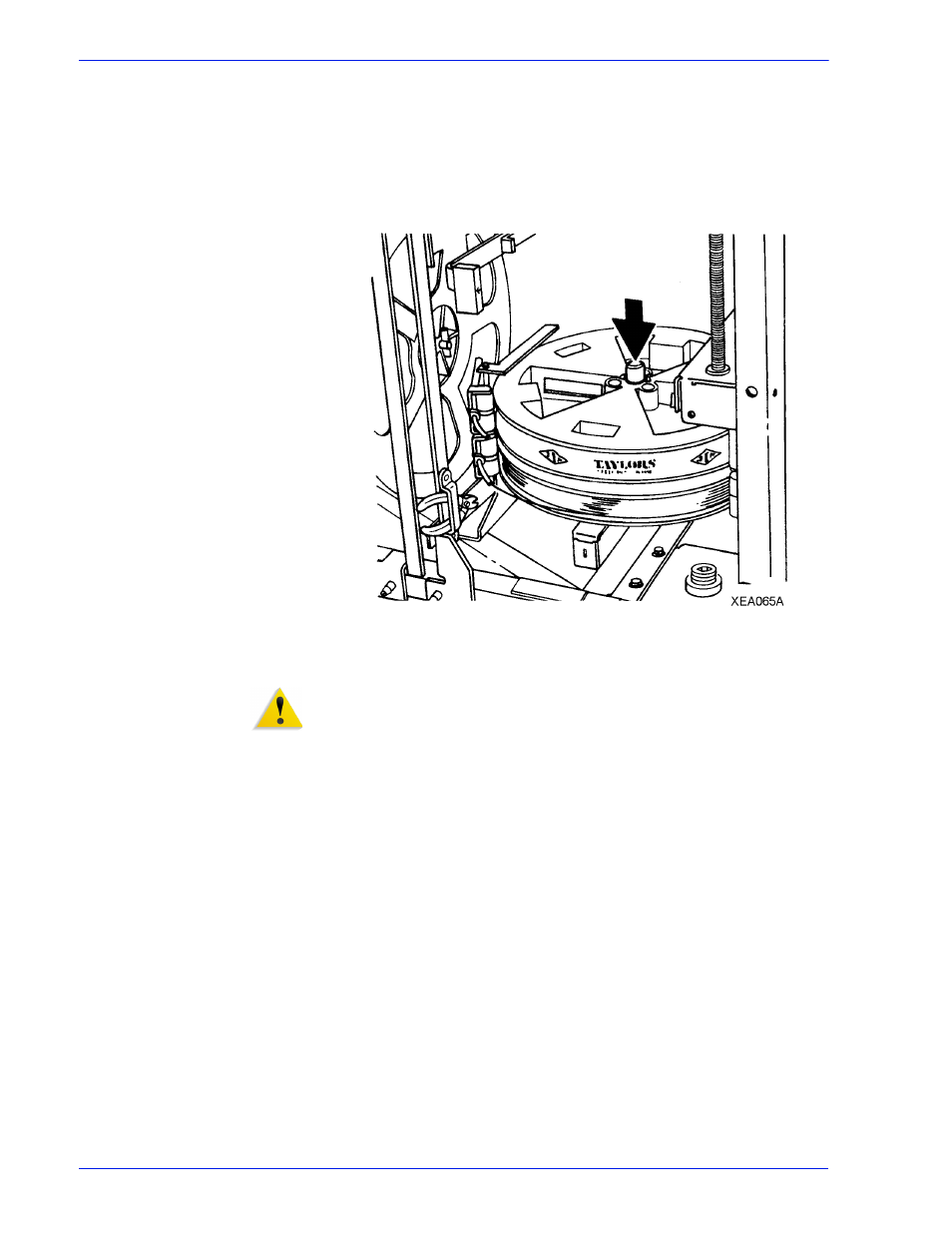

Figure 3-57 Replacing the pin
9. Remove any damaged wire.
WARNING: Hold the wire on the spool to prevent eye injury and
to keep the wire from unwinding.
a. Locate the end of the wire on the new spool.
b. Using the wire cutters, carefully clip any bent or twisted
wire from the lead end of the wire.
c. Hold onto the end of the wire and carefully remove the
paper wrapper, as shown in figure 3-58.
