Xerox 128 User Manual
Page 37
DocuTech 128/155/180 HighLight Color Operator Guide
2- 19
System components
High volume printer paper path
The following figure shows the path the paper takes through the
high volume printer.

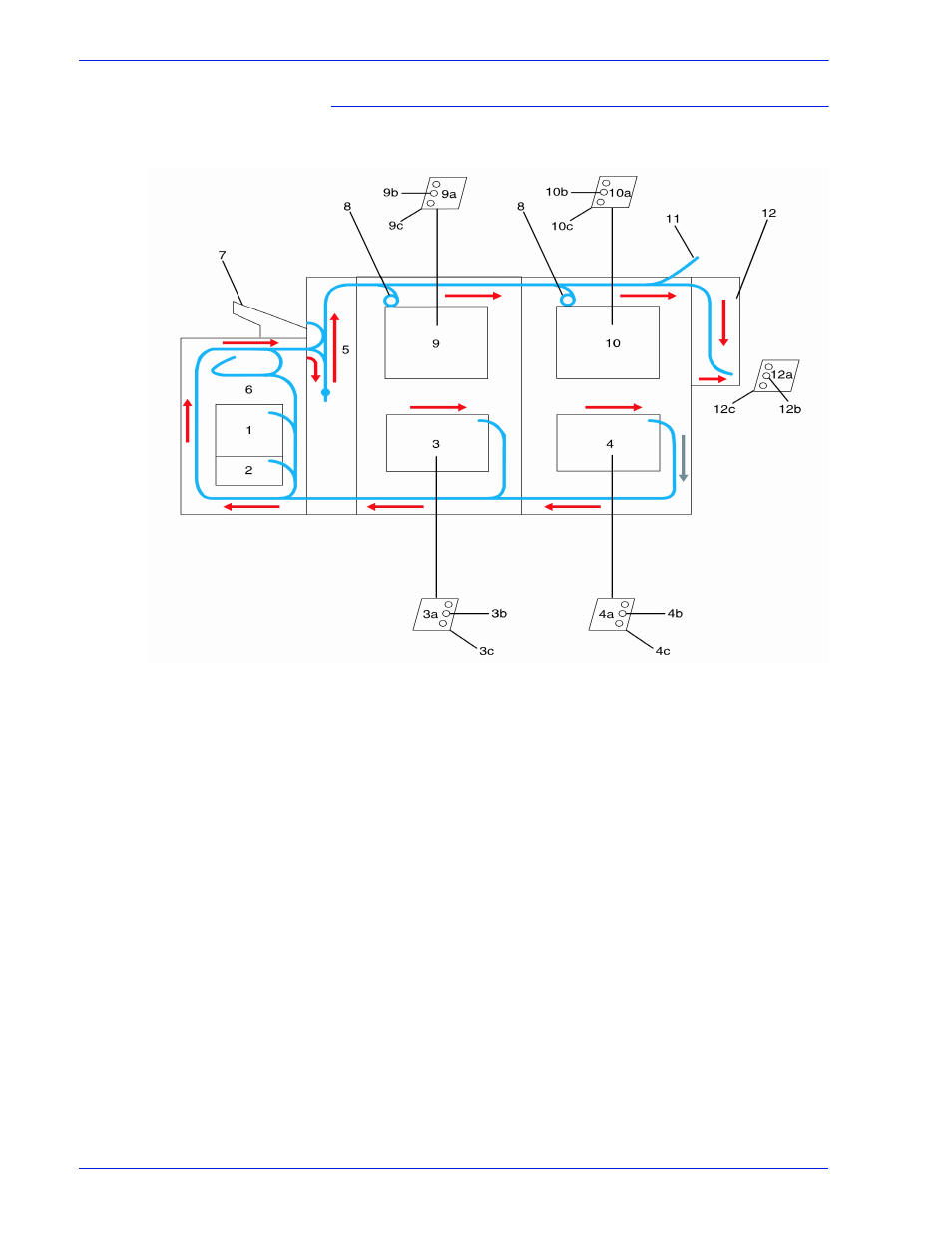

Figure 2-11. Route of paper through the high volume printer
1. Processor feeder tray 1
2. Processor feeder tray 2
3. High-capacity feeder tray 3
a. Side 1 of sheet leaving feeder tray
b. Drilled holes (on right edge)
c. Origin 0,0: portrait orientation
