3 - 6 6 DocuTech 128/155/180 HighLight Color Operator Guide
Routine maintenance

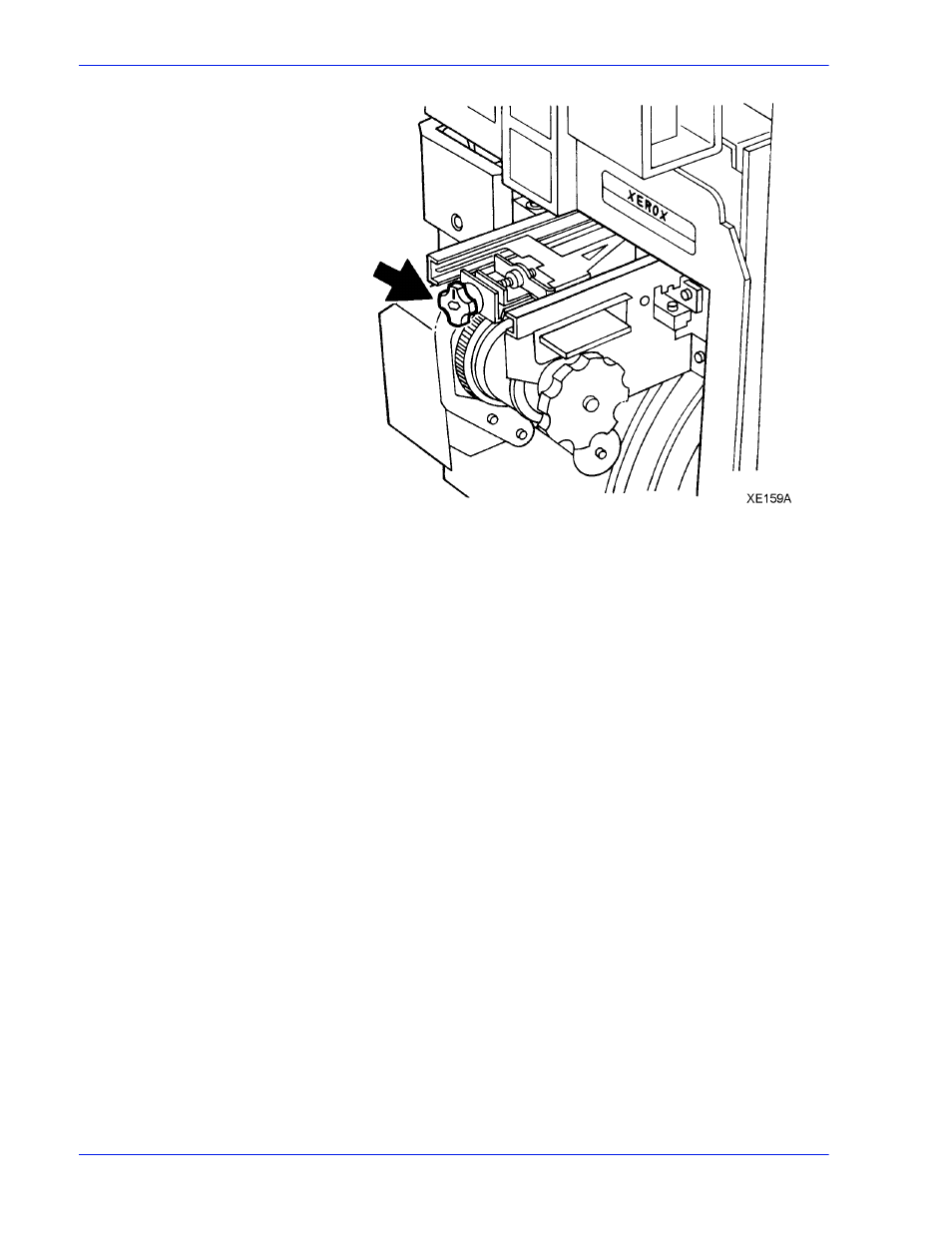

Figure 3-70 Locating the binder tape knob
The knob is spring loaded and moves in increments to change
the location of the binder tape. Each increment equals a
change of 0.1mm, up or down, on the edge of the book. One
full rotation of the knob is equal to 0.04 inch (1mm).
6. Pull the knob toward you to rotate it for the adjustment.
7. Adjust the tape position by performing one of the following
steps:
• Pull the knob and rotate it clockwise to move the tape
toward the top edge of the book, as shown in figure 3-71.
