DocuTech 128/155/180 HighLight Color Operator Guide
3- 19
Routine maintenance
the cart. If the pallet does not move, check that the CCU is all
the way out of the printer and push down on the pedal again.

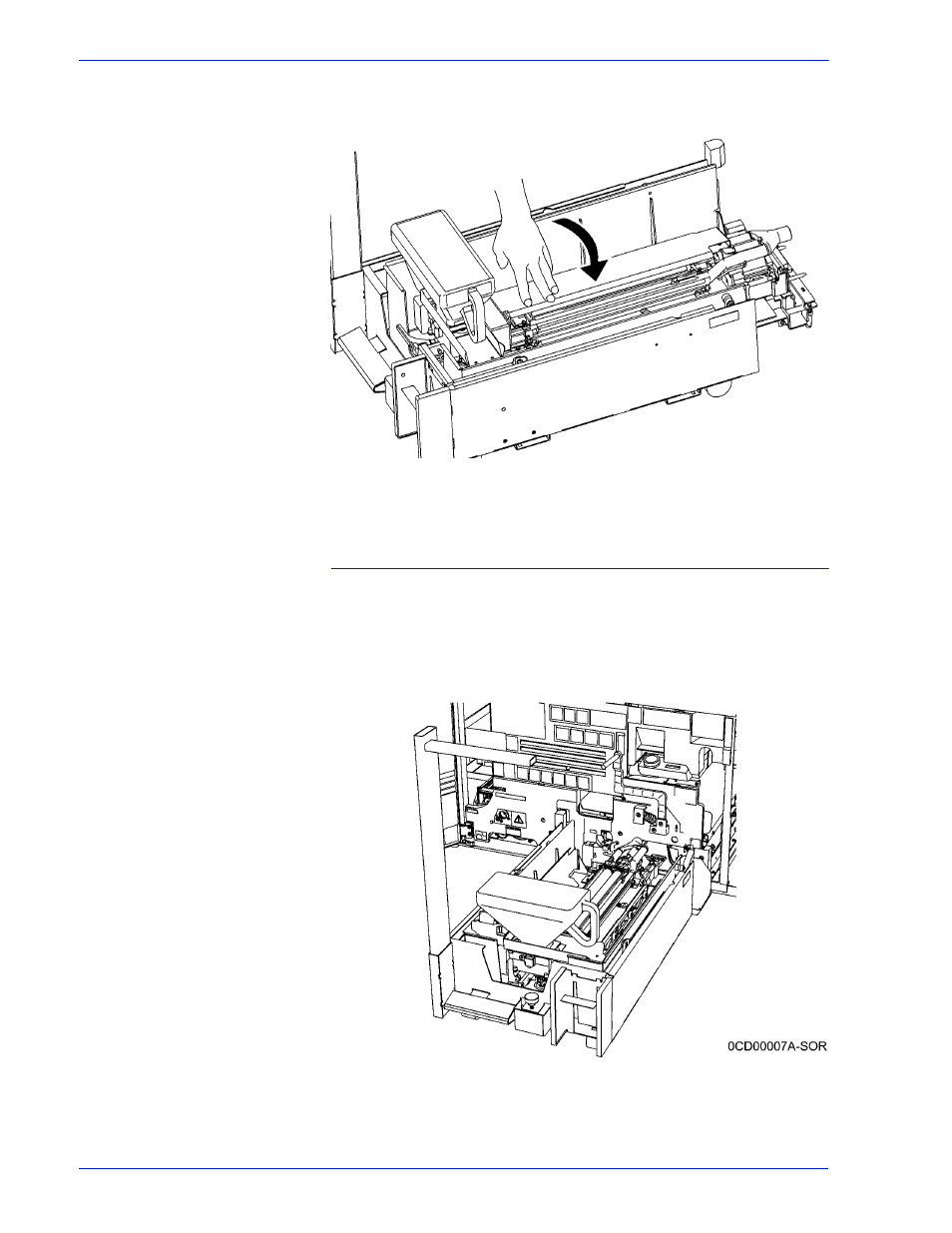

Figure 3-15 Closing the top cover
11. Close the top cover and store it.
Inserting a CCU
To insert a CCU, follow these steps.
1. Open the top cover of the cart containing the new color CCU.
2. Push the cart up to the printer, lining up the yellow knob on the
cart with the yellow recess on the printer inner cover. Make
sure the cart is level.
Figure 3-16 CCU on cart
3. Push the cart firmly against the printer until you can feel the
two latch together.
