DocuTech 128/155/180 HighLight Color Operator Guide
3- 63
Routine maintenance
NOTE:
NOTE: The tape will not feed properly if the retainer is not
locked.
b. Move the reel retainer to the locked position.

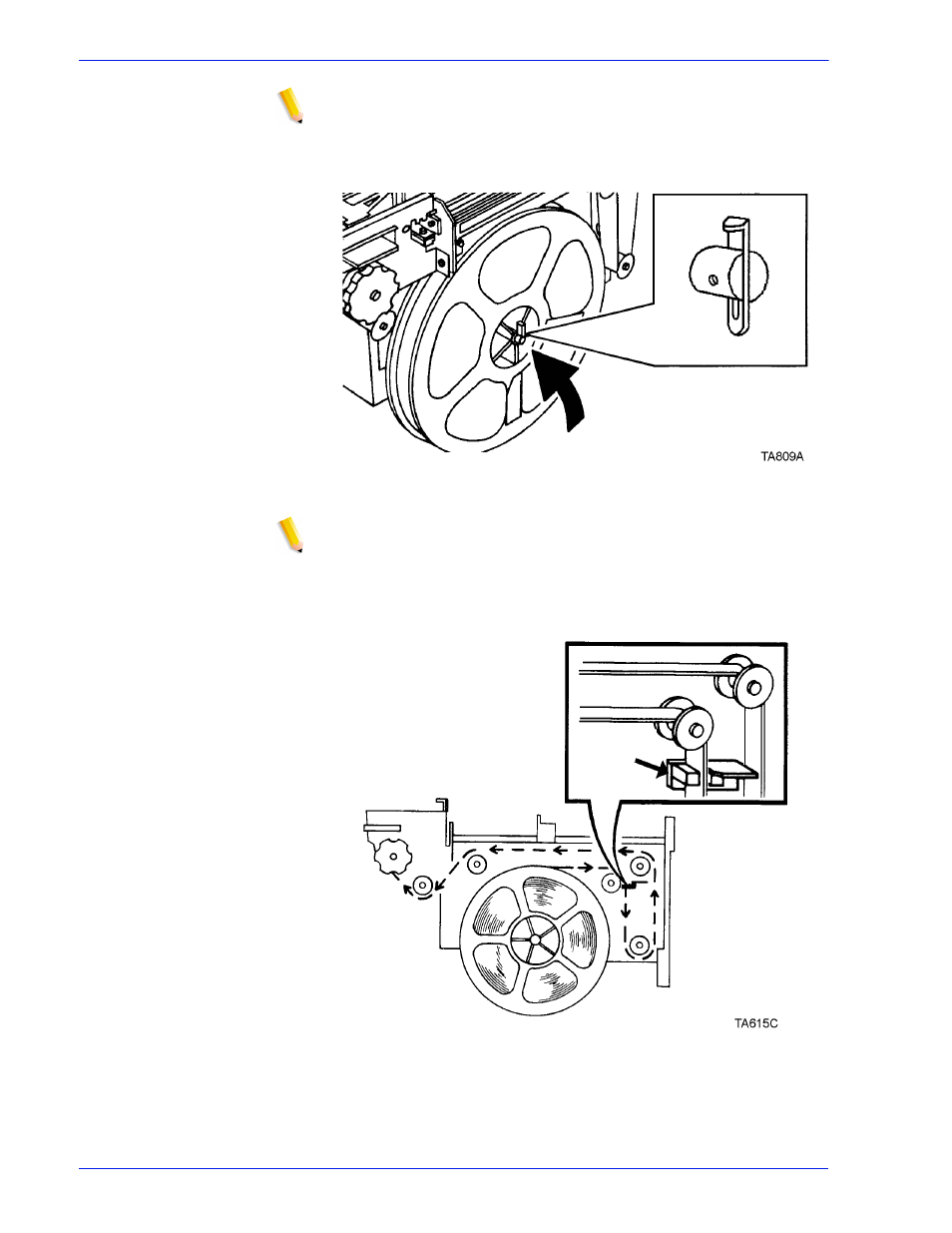

Figure 3-65 Locking the reel
NOTE:
NOTE: Ensure that the tape passes through the binder tape
sensor.
6. Follow the instructions on the binder tape loading label and
thread the tape through the tape feeder.
Figure 3-66 Threading the tape through the tape feeder
7. Thread the tape around the drive roll to the edge of the
pressure roll.
Tape
Sensor
