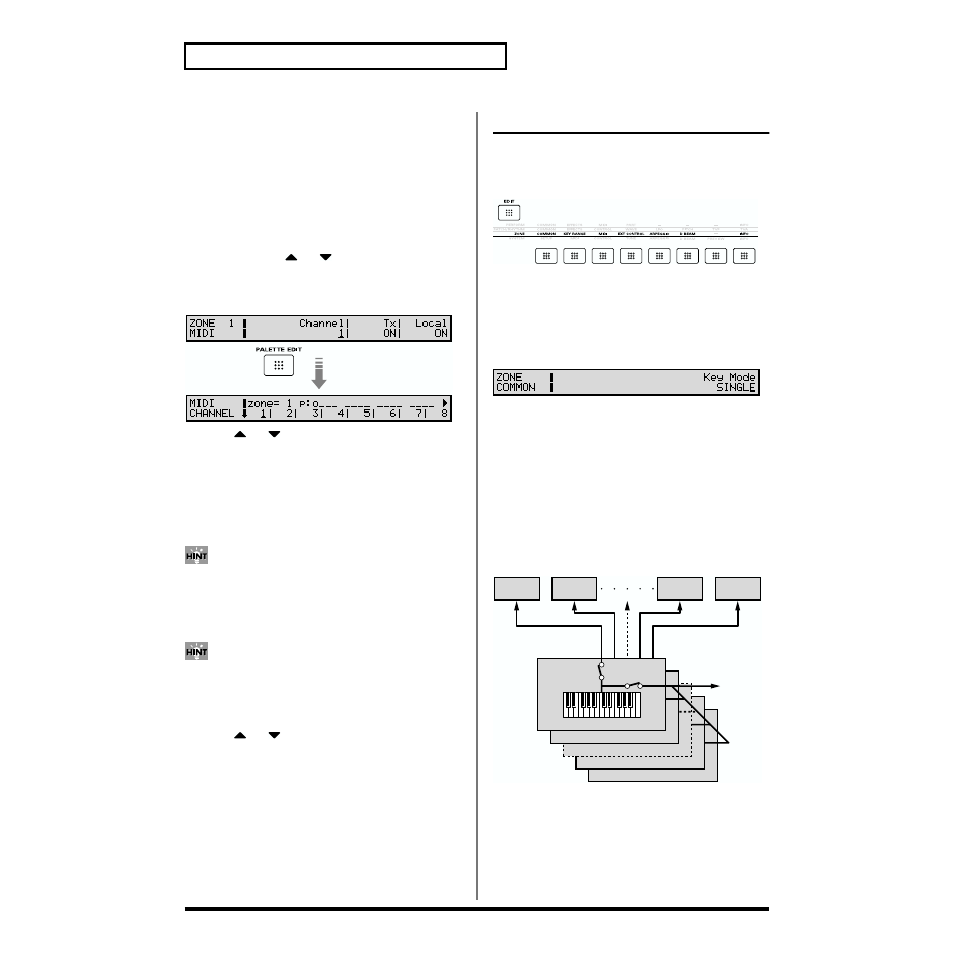

Page 58: 58 chapter 4. zone settings, Zone common

Chapter 4. Zone Settings

Making Settings While
Comparing Zones (Palette Edit)

When modifying Zone settings for a Performance, the values
for eight Zones (Zone 1–8 or Zone 9–16) will be displayed
together on a single display. This is called the

Palette page

This is useful when you wish to change parameter values
while comparing each Zone settings.

1. When editing parameters that can be set individually in

each Zone, press

to move the cursor to the

parameter to be edited.

2. Press [PALETTE EDIT] to call up the Palette page.

fig.04-03

3. Press

to choose the Zone to modify.

When the Zone number is displayed, and that Zone’s
Local Switch is set to ON, you can check which Parts are
linked. Parts 1–16 are shown in order from left to right,
and Parts for which the Zone’s MIDI transmit channel
and the Part’s MIDI receive channel are matched are
indicated by a

for the Part.

To switch between the palette page for Zones 1–8 and
the palette page for Zones 9–16, press [1-8/9-16].

4. Use the VALUE dial, [INC/+]/[DEC/-], or the numeric

keys to change the parameter value.

If you’ve made a mistake in setting the parameter value,
press [UNDO/COMPARE] to restore the value to what
it was.

5. If you wish to edit other parameters,

press

to select the parameter that you wish

to edit.

6. Repeat steps 3–5 to make the settings for the Zone.

7. To exit the Palette page, press [PALETTE EDIT], thus

extinguishing the button’s indicator.

Functions of Zone Parameters

This section explains the functions the different Zone
parameters have, as well as the composition of these
parameters.

fig.04-01

Settings Common to the Entire
Zone (COMMON)

ZONE COMMON

fig.04-04

Key Mode

The Key Mode determines how the XV-88 will sound when
its keyboard is played.

LAYER

: When the keys are pressed, all Zones whose Local

switches (Local parameter) are set to ON and the sounds for
the linked (where the MIDI channels coincide) Parts are
played. Transmission of MIDI messages from the keyboard
controller section to external MIDI devices will be
determined by the Transmit switch (Tx parameter) setting of
each Zone.

fig.04-05.e

Zone 16 (Tx ch.16)

MIDI OUT

Zone 15 (Tx ch.15)

Zone 2 (Tx ch.2)

Zone 1 (Tx ch.1)

Local Switch

Transmit Switch

Part 1

(Rx ch.1)

Part 2

(Rx ch.2)

Part 16

(Rx ch.16)

Part 15

(Rx ch.15)
