203
Chapter 12. Realizing the Potential of the XV-88
Chapter 12
6. Set the P.C# parameter to match the Program Change
number for the Tone you want the external MIDI device
to select.
7. Save the Performance (p. 164).
8. Try changing from another Performance to the
Performance just saved, and see if the sound of the
external MIDI device changes to what you want. If not,
check your settings and the external MIDI device.
Changing Sounds with a Pedal
Switch
You can change the sounds such as a Patch in succession
using a pedal switch.
1. Connect an optional pedal switch (DP-2, DP-6, etc.) to the
CTL 1 PEDAL jack.
2. Set the Assign parameter (SYSTEM/CONTROL/
CONTROL PEDAL 1) to 102:PROG UP (p. 172).
3. Call up the PLAY page of the sound generator mode
(PERFORM, PATCH, RHYTHM, GM).
4. Each time you press the pedal, you call up the next
number of Performance, Patch, or Rhythm Set.
Controlling an External MIDI
Sequencer with the D Beam
Controller
You can start and stop an external MIDI sequencer by
placing your hand above the D Beam controller.
1. Use a MIDI cable to connect the XV-88’s MIDI OUT
connector to the MIDI IN connector of the external MIDI
sequencer.
2. Set the D Beam Controller’s Assign parameter setting to
100:START/STOP.
In Patch/Rhythm Set Mode
Assign parameter (SYSTEM/D BEAM/D BEAM
CONTROL) (p. 176)
In Performance Mode
Assign parameter (ZONE/D BEAM/D BEAM
CONTROL) (p. 63)
3. Press D BEAM CONTROLLER [ON] to turn on the D
Beam Controller.
4. When you place your hand over the D Beam Controller,
the external MIDI sequencer begins playing. Moving
your hand over the controller again stops the external
MIDI sequencer.
Using External MIDI Devices
Playing an External MIDI Sound
Module from the XV-88
1. Set the COMPUTER switch on the XV-88’s rear panel to
MIDI .
The new setting of the COMPUTER switch will take
effect when the power is turned on. Before changing the
setting of the COMPUTER switch, you must first turn off
the power on the XV-88.

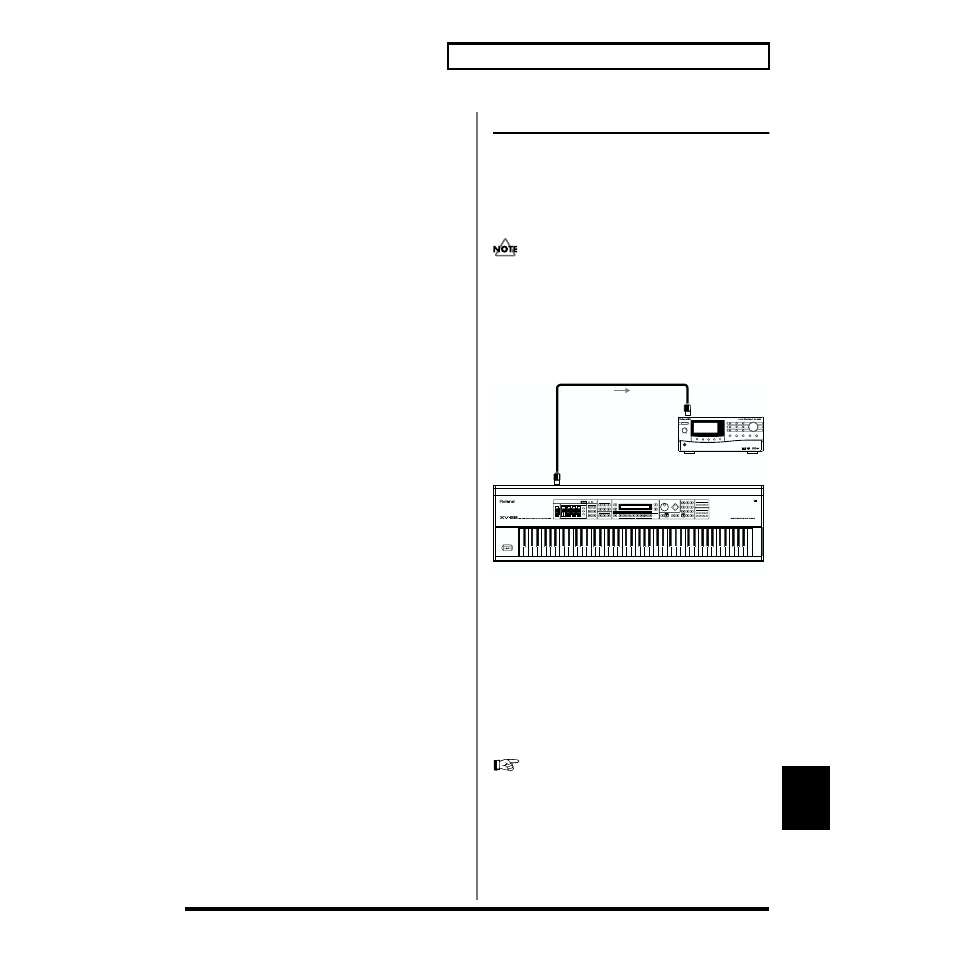

2. Use a MIDI cable to connect the MIDI OUT connector of
the XV-88 to the MIDI IN connector of the external MIDI
device.
fig.12-01.e
3. Set the XV-88’s transmit channel to match the external
MIDI sound module’s receive channel.
The XV-88’s transmit channel is determined by the
following parameters.
In Patch/Rhythm Set Mode
Tx Ch parameter (SYSTEM/MIDI/PATCH MIDI) (p.
170)
In Performance Mode
Channel parameter (ZONE/MIDI/MIDI) (p. 59)
Set the Tx parameter (ZONE/MIDI/MIDI) to ON (p. 59).
For instructions on how to set the receive channel of the
external MIDI sound module, refer to the owner’s
manual for your external MIDI sound module.
MIDI OUT
MIDI IN
MIDI Sound Module
XV-88
