Chapter 7. Adding Effects
18: MODULATION DELAY
This effect adds modulation to the delayed sound, producing
an effect similar to a flanger.
When Feedback Mode is NORMAL:

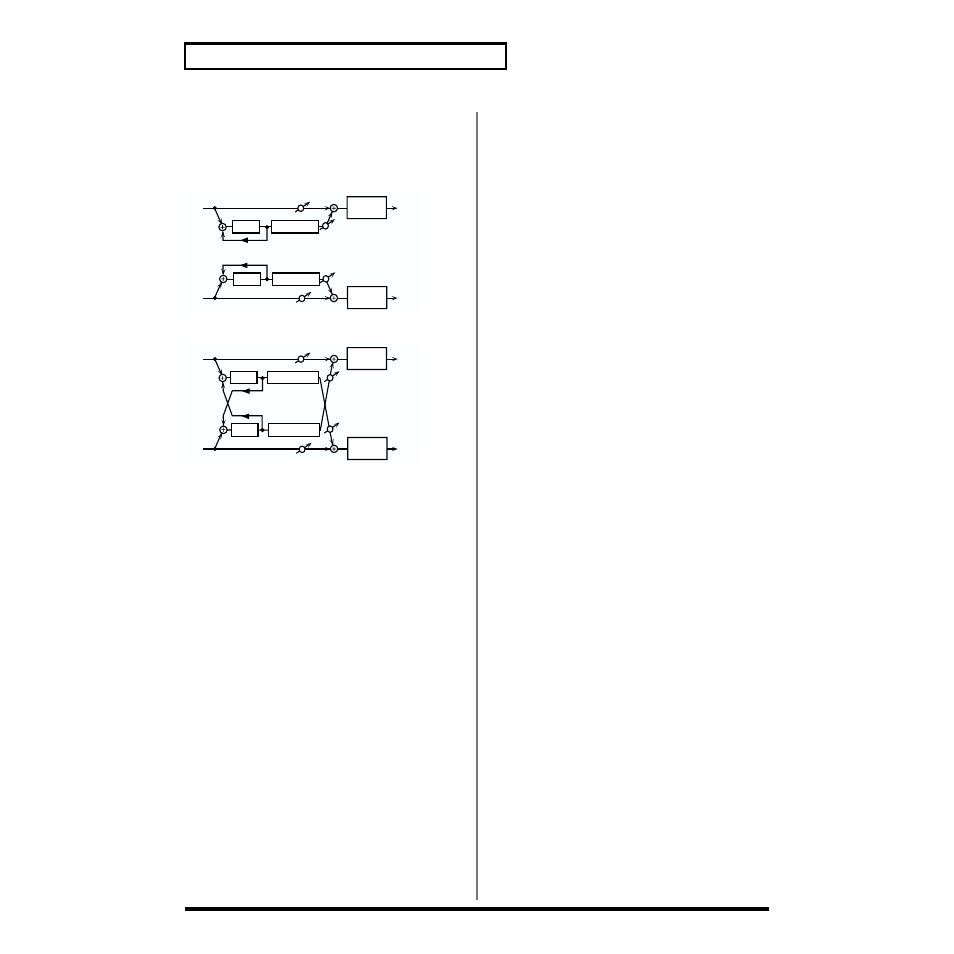

fig.MFX-18a
When Feedback Mode is CROSS:
fig.MFX-18b
Delay L (Delay Time Left)
Adjust the time from the direct sound until when the left
delay sound is heard.
Delay R (Delay Time Right)
Adjust the time from the direct sound until when the right
delay sound is heard.
Fbk (Feedback Level)
Adjust the proportion (%) of the delay sound that is fed back
into the effect. Negative (-) settings will invert the phase.
Mode (Feedback Mode)
Select the way in which delay sound is fed back into the
effect.
NORMAL : The left delay sound will be fed back into the left
delay, and the right delay sound into the right delay.
CROSS : The left delay sound will be fed back into the right
delay, and the right delay sound into the left delay.
Rate #
Adjust the speed of the modulation.
Depth
Adjust the depth of the modulation.
Phase
Adjust the spatial spread of the sound.
HF Damp
Adjust the frequency above which sound fed back to the
effect will be cut. If you do not want to cut the high
frequencies of the feedback, set this parameter to BYPASS.
LowGain (Low Gain)
Adjust the gain of the low frequency range.
Hi Gain (High Gain)
Adjust the gain of the high frequency range.
Balance (Effect Balance) #
Adjust the volume balance between the direct sound and the
modulation delay sound. With a setting of D100:0W only the
direct sound will be output, and with a setting of D0:100W
only the modulation delay sound will be output.
Level (Output Level)
Adjust the output level.
R in R out
L in L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
