11. Configuring PPPoE/Bridged Mode On ADSL
Revision 1.14.3 96 RX1000/RX1100™
Link (Green) indicates when the DSL link is established.
TX (Red) indicates when data is being transmitted over DSL.
RX (Red) indicates when data is being received over DSL.
While connecting the LEDs are flashing sequentially.
The RuggedRouter also indicates information about ADSL ports on the LED Panel. A pair of LEDs
will indicate traffic and link status of the port. Consult the section
Using The LED Status Panel to
determine which LEDs correspond to the port.
11.2. ADSL Configuration

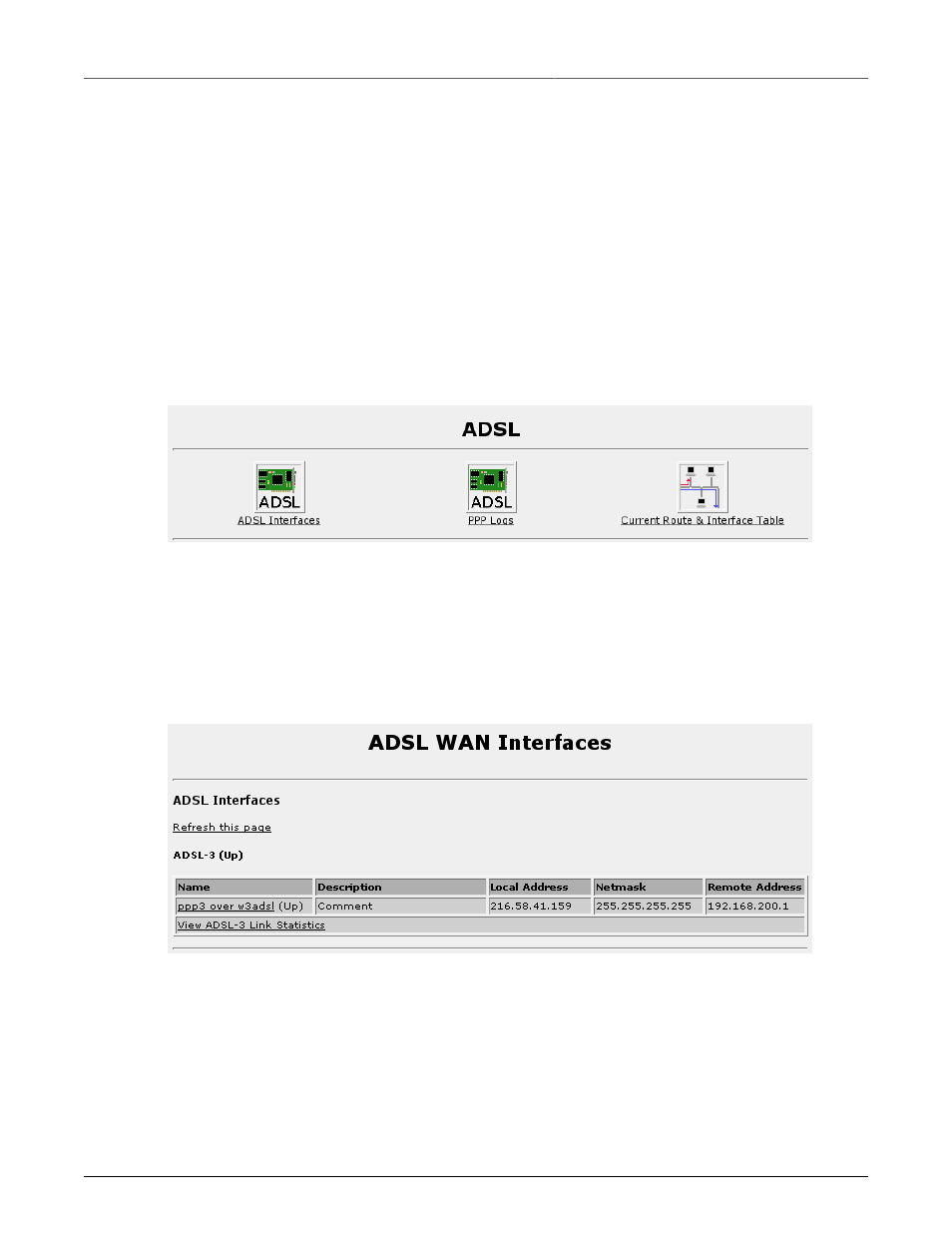

Figure 11.1. ADSL Interfaces
This menu allows you to display and configure ADSL interfaces. The PPP Logs menu will display a
log of PPP releated information. The Current Routes menu will display the routes and status of the
network interfaces.
11.2.1. ADSL Network Interfaces
Figure 11.2. ADSL WAN Interfaces
This menu allows you to display and configure ADSL interfaces and the protocols that run on them.
A table is presented for each interface.
Interface numbers are as described by the “ADSL” labels as shown in the home page chassis diagram.
The status of the physical interface, its corresponding logical interface and link statistics are provided.
