25. Synchronous Serial Ports
Revision 1.14.3 232 RX1000/RX1100™

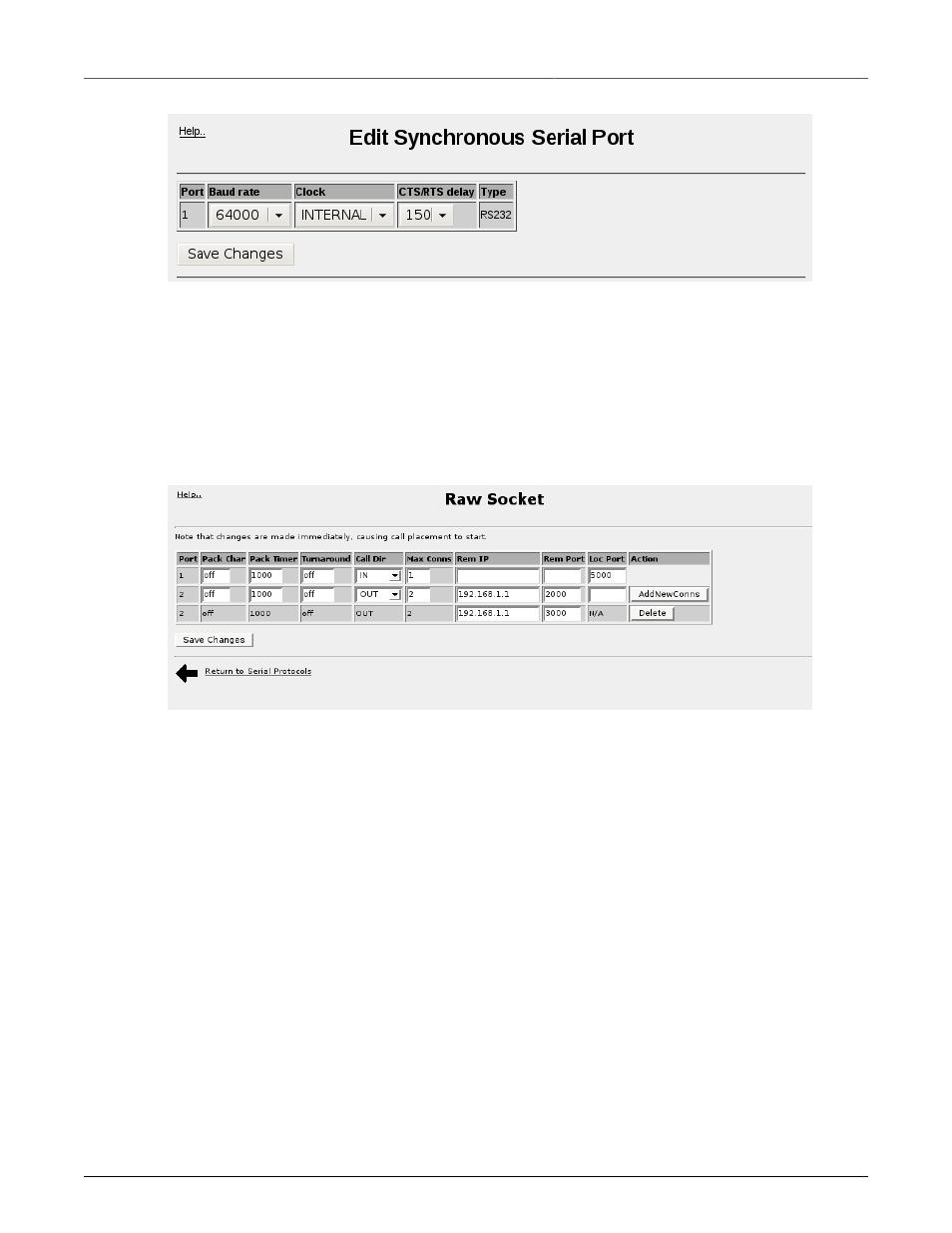

Figure 25.3. Edit Synchronous Serial Port Parameters
25.2.2. Configuring Raw Socket On Synchronous Serial Ports
In order to enable the Raw Socket protocol the desired synchronous serial port, use the Assign
Protocols submenu under the Serial Protocols menu (refer to
Assign Protocols Menu ).
As noted above, the Raw Socket protocol operates differently for synchronous and asynchronous
ports. The configuration for each also differs.
Figure 25.4. Edit Synchronous Serial Raw Socket Parameters
The Pack Char, Pack Timer, and Turnaround timer fields are unused and are ignored in the case
of synchronous serial ports.
The Call Dir field configures whether to accept an incoming connection (IN), place an outgoing
connection (OUT) or do both (BOTH).
The Max Conns field configures the maximum number of incoming connections to permit when
the call direction is incoming or the maximum number of connections to configure if the direction is
outgoing.
The Remote IP field configures the address used when placing an outgoing connection.
The Remote Port field selects the TCP destination port used in outgoing connections.
The Local Port field selects the local TCP port to use to accept incoming connections.
When Max Conns is set to more than one and the call direction os outgoing, a button labelled
AddNewConns will appear in the Action column of the table to allow new outbound connections to
be configured.
