19. Configuring VRRP
Revision 1.14.3 192 RX1000/RX1100™
19.2. VRRP Configuration
19.2.1. VRRP Main Menu

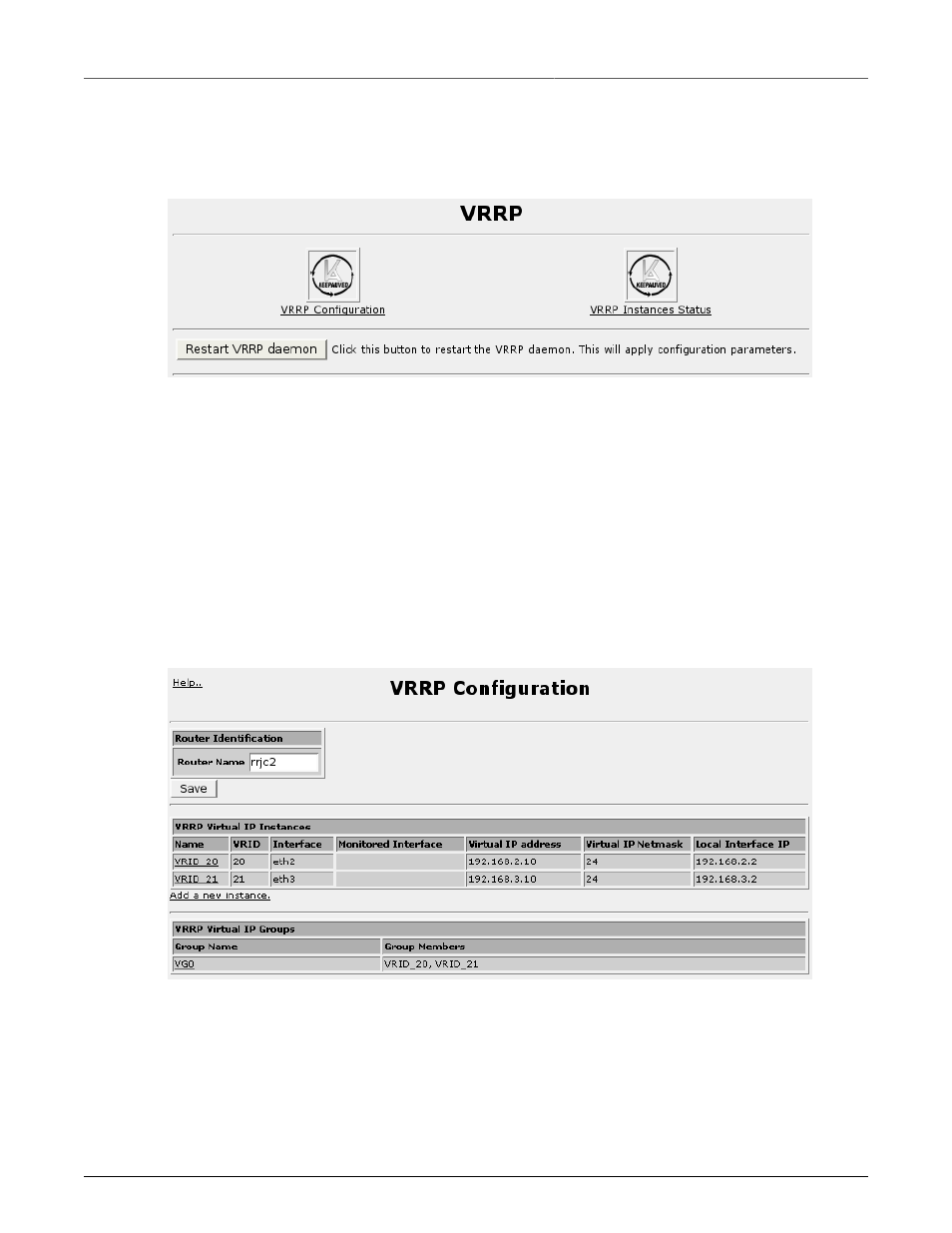

Figure 19.3. VRRP Main Menu
Note that VRRP is disabled by default and may be enabled via the System folder, Bootup And
Shutdown menu.
VRRP can be configured through the VRRP Configuration link before the daemon is started.
When enabled, any configuration changes may be made to take effect by selecting the Restart VRRP
daemon button.
The VRRP Instances Status link presents the status VRRP instances existing as of the last restart
of keepalived.
19.2.2. VRRP Configuration Menu
Figure 19.4. VRRP Configuration Menu
Set the Router Name field to supply an identification of the router for VRRP logs. This field initially
defaults to the current hostname.
The VRRP instances under the Name column define virtual IP groups. Clicking on a link will allow
you to edit that instance.
