13. Configuring PPP And The Cellular Modem
Revision 1.14.3 111 RX1000/RX1100™
13.1.1.4. LED Designations
The RuggedRouter dedicates two LEDs to indicate cellular modem status:
The leftmost LED of the bottom row (LED #29) is the “Line” LED.
• Solid Green indicates that a PPP link has been established.
• Flashing green indicates that PPP link negotiation is in progress.
• Off indicates that the cellular modem is active but a connection to the wireless network has not
yet been established.
• RED indicates that cellular modem is not currently operating.
The leftmost LED of second bottom row (LED #25) is the cellular modem's Activity LED:
• Off means that there is no data traffic on the cellular modem.
• Flashing means that there is data traffic on the cellular modem connection.
13.2. PPP Cellular Modem Configuration
The top-level configuration interface menu for the cellular modem and PPP is accessible by clicking
on the Cellular Modem link in the Networking folder. This menu allows you to display and configure
the cellular modem interface.

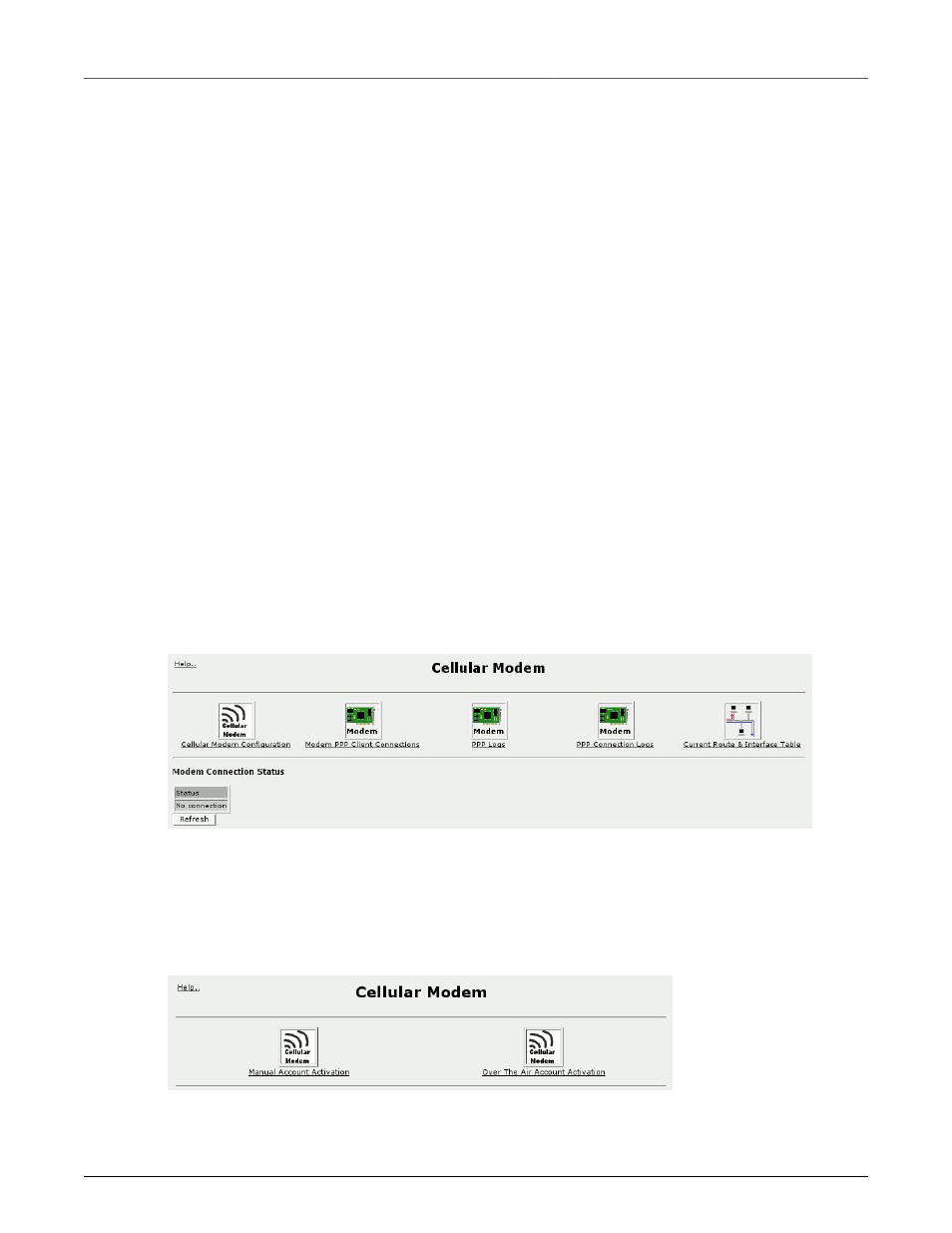

Figure 13.1. Cellular Modem Interface
If the installed modem is a CDMA / EV-DO type, and has not yet been activated for use on the cellular
network, the following top-level menu will be seen instead, offering two different methods for activating
the modem for use on the cellular network (see
Cellular Modem Account Activation , below).
Figure 13.2. Cellular Modem Interface (CDMA modem not yet activated)
