29. Configuring NTP
Revision 1.14.3 261 RX1000/RX1100™
29.2.7. Viewing GPS Status

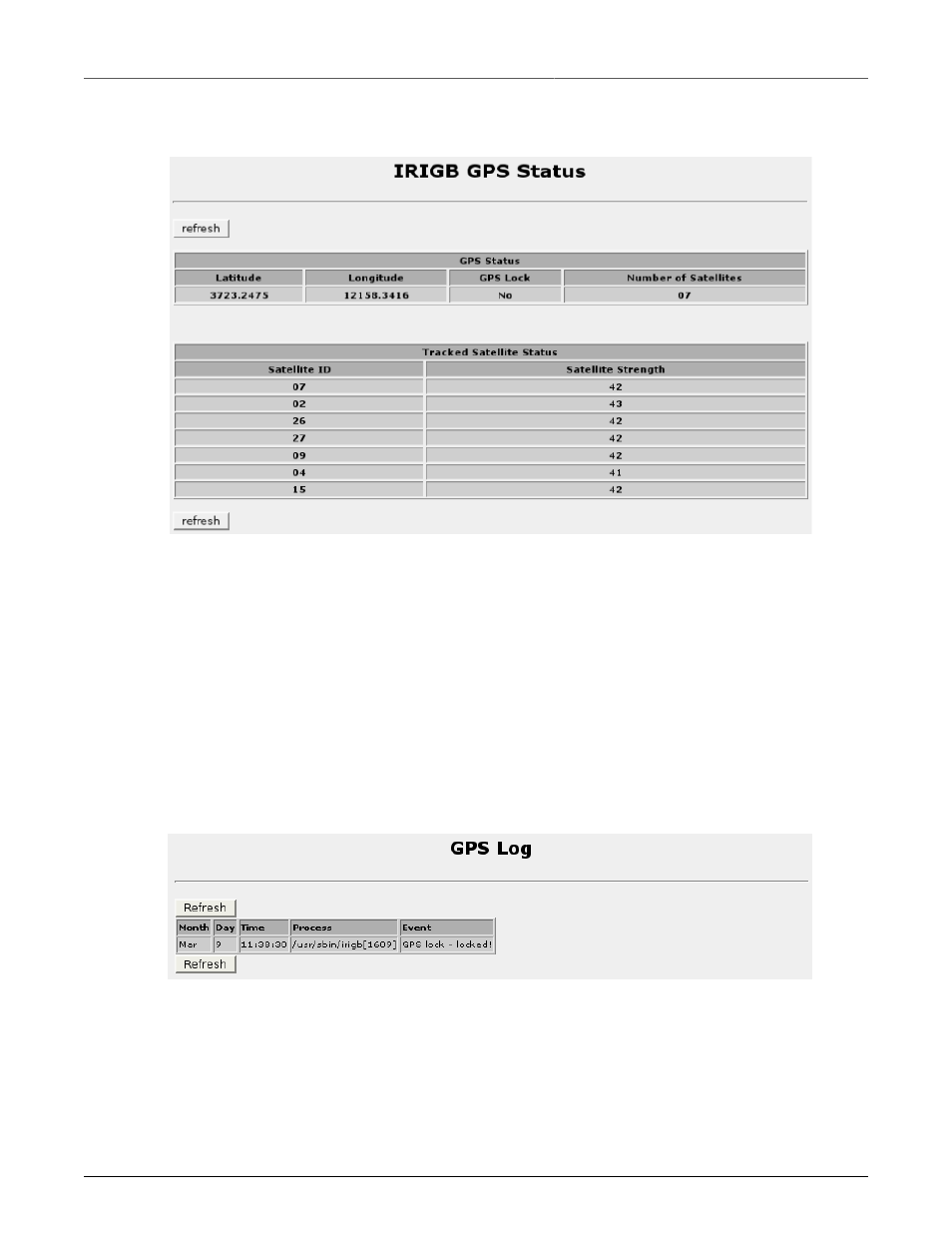

Figure 29.6. GPS Status
If the router is equipped with a Precision Time Protocol card, this page will shows the status of the
GPS module.
The Latitude and Longitude fields show the current position of the GPS antenna.
The GPS Lock field show the GPS lock status.
The Number of Satellites shows how many satellites are currently being tracked by the GPS module.
The Tracked Satellite Status table shows the ID and signal strength of tracked satellites.
29.2.8. Viewing The GPS Log
Figure 29.7. GPS Log
The GPS Log menu displays the log of recent GPS events.
