23. Network Utilities
Revision 1.14.3 212 RX1000/RX1100™
23.7.2. Frame Relay Link Layer Trace A WAN Interface

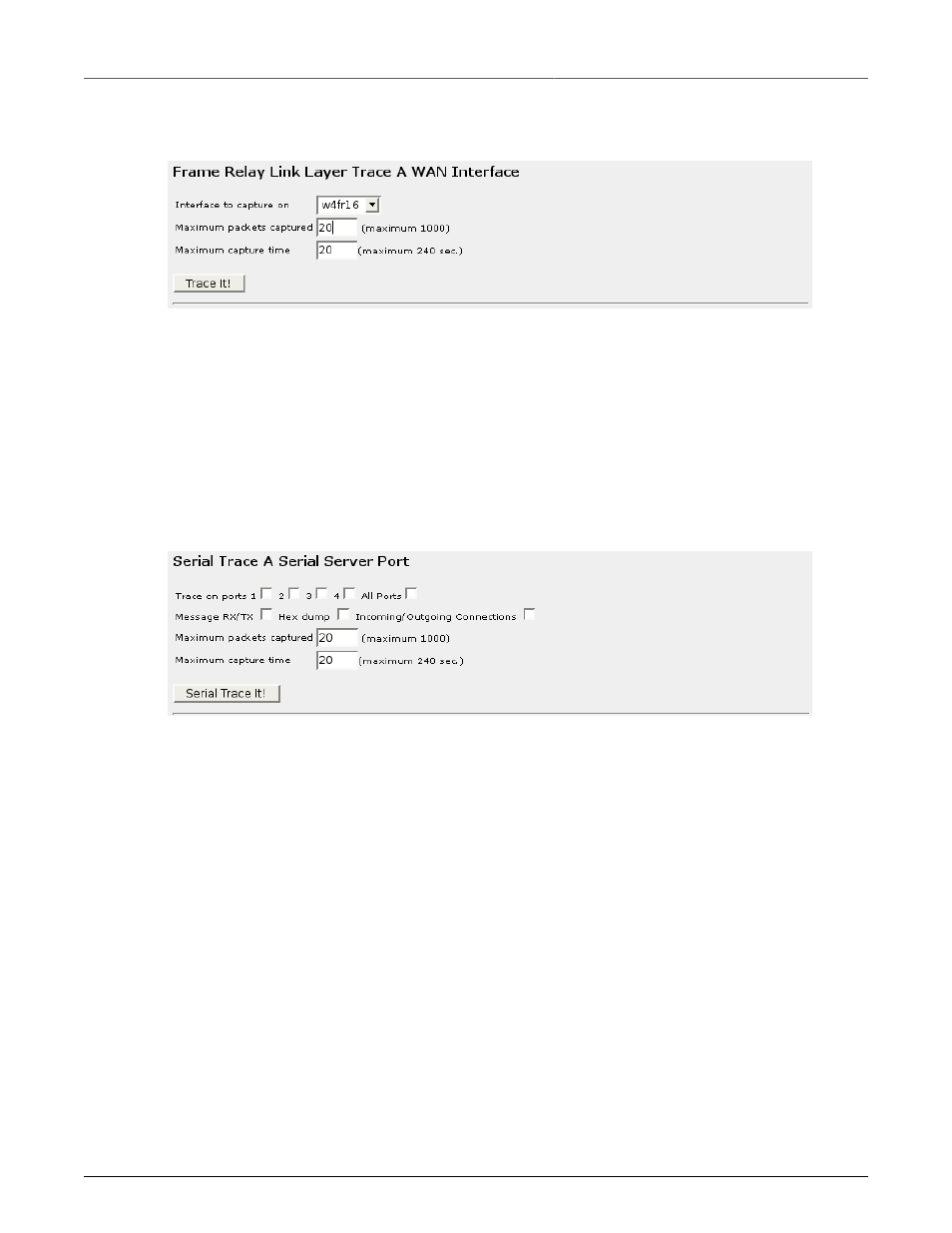

Figure 23.8. Frame Relay Trace Menu
Frame Relay tracing uses the wanpipemon utility.
The Interface to capture on field specifies the interface to show traffic on.
The Maximum packets captured and Maximum capture time fields limits the amount of traffic
captured.
23.7.3. Serial Trace A Serial Server Port
Figure 23.9. Serial Server Port Trace Menu
The Trace on ports fields specify the serial port to show traffic on.
The Message RX/TX and Incoming/Outgoing Connections fields causes data packets and
Connection activity to be included in the trace. The Hex dump field causes the content of data
packets to be displayed.
The Maximum packets captured and Maximum capture time fields limits the amount of traffic
captured.
