9. Configuring Frame Relay/PPP And DDS
Revision 1.14.3
87
RX1000/RX1100™
9.2.2. Editing A Logical Interface (Frame Relay)

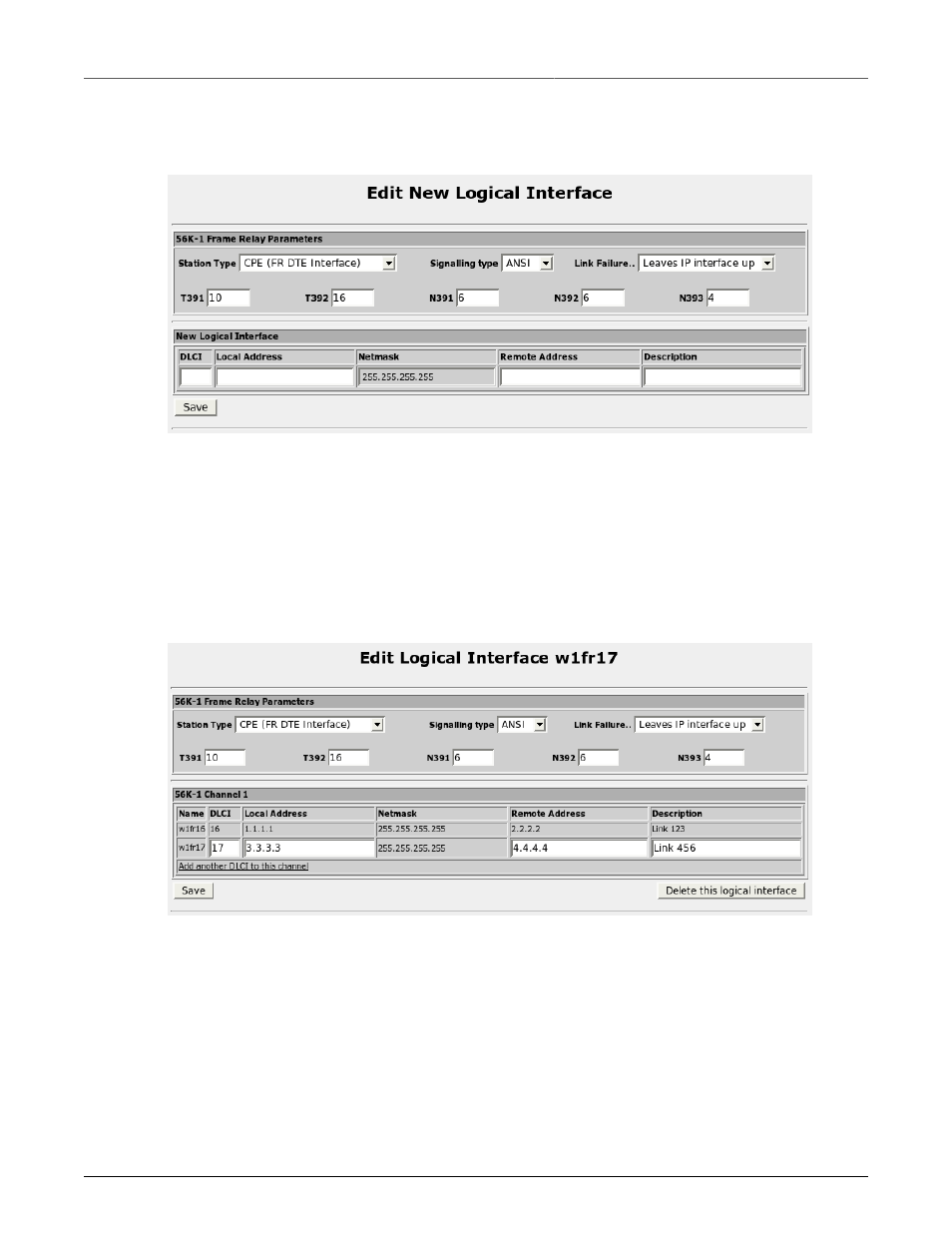

Figure 9.4. Edit Logical Interface (Frame Relay), single DLCI
This menu allows you to display and configure logical interface fields for Frame Relay. The menu is
composed of two tables. The first table provides link based configuration, which affect all DLCIs. The
second table provides configuration parameters for individual DLCIs.
After the first DLCI has been configured, revisiting that DLCI will display a menu that allows additional
DLCIs to be configured.
Figure 9.5. Edit Logical Interface (Frame Relay), multiple DLCIs
The fields and buttons in this menu are the same as those described in the Editing A Logical
Interface (Frame Relay) section of the Configuring Frame Relay/PPP And T1/E1 chapter.
