25. Synchronous Serial Ports
Revision 1.14.3 231 RX1000/RX1100™

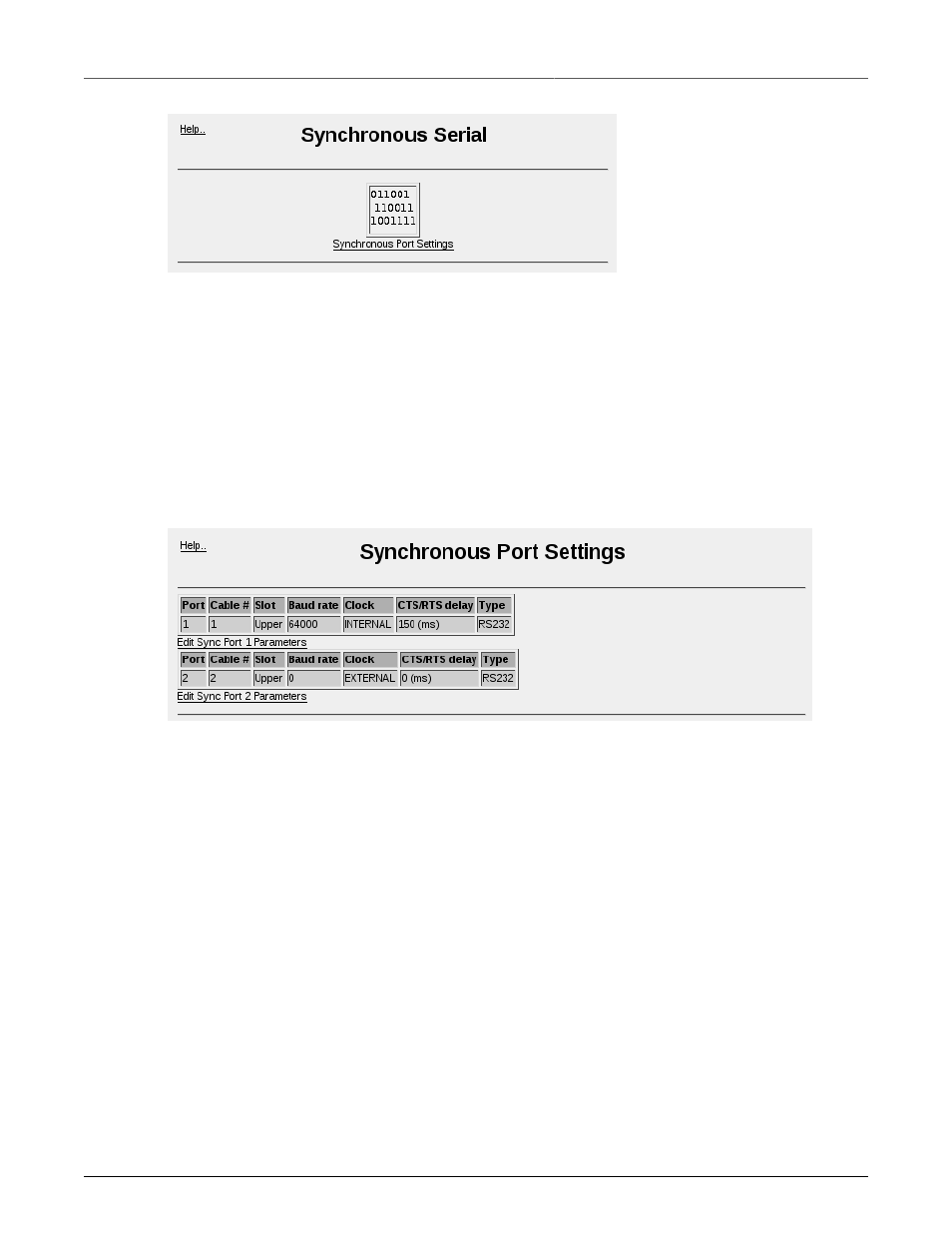

Figure 25.1. Synchronous Serial Main Menu
Note that the Serial Protocols server is disabled by default and may be enabled via the Bootup And
Shutdown menu, under the System folder of the main Webmin menu. Note also that these menus
configure only the physical parameters of the ports. Protocol configuration must be done via the Serial
Protocols Configuration menu. This chapter describes the configuration required to run the Raw
Socket protocol over the synchronous serial ports.
25.2.1. Synchronous Port Settings Menu
This menu displays the current configuration of each synchronous serial port on the router.
Figure 25.2. Synchronous Port Settings Menu
The Port field denotes the system's port number for the specific synchronous serial port.
The Cable # field lists the cable marking for the port.
The Slot field indicates whether the port is in the router's Upper or Lower expansion slot.
The Baud rate field sets the bit rate in bits/s of transmitted data and the frequency in Hz of transmitted
clock when the port is clocked internally (see below).
The Clock field selects whether the port operates from the internal clock or using a received external
clock signal.
The CTS/RTS delay field sets the delay in milliseconds that RTS will follow CTS.
The Type field displays the port's interface type (depending on the type of synchronous card installed).
Underneath each port displayed in the table, a link named Edit Sync Port X Parameters leads to an
editing menu for the corresponding port's parameters:
