Chapter 3 Setting Up a Design
NI Ultiboard User Manual 3-12 ni.com
Working with Net Groups
Complete the following steps to create a net group:
1. Select Tools»Group Editor to display the Edit Groups dialog box.
2. Click the Net Groups tab.
3. Click Add. The Add group dialog box appears.
4. Enter the desired name and click OK. The Change group settings
dialog box appears.
5. Change the settings in the Group Settings area as desired.
Note Refer to the Change Group Settings dialog box and Net Group Settings sections for
more information.
6. Click OK to return to the Net Groups tab. The newly created group
appears in the Groups list.
7. Highlight the new group to display a list of nets you can add to the

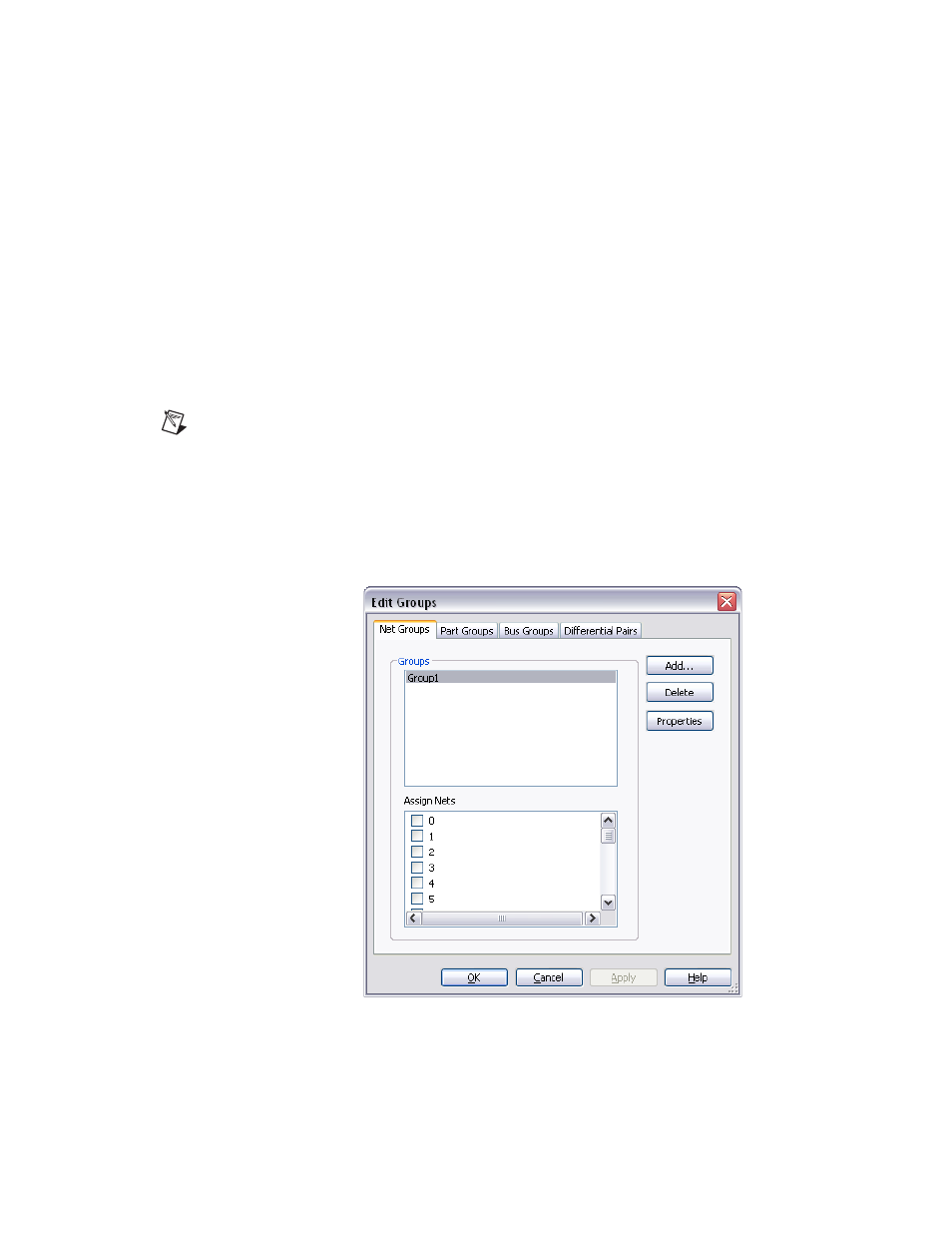

group in the Assign Nets list, as shown in the example below.
