Chapter 1 User Interface
NI Ultiboard User Manual 1-32 ni.com

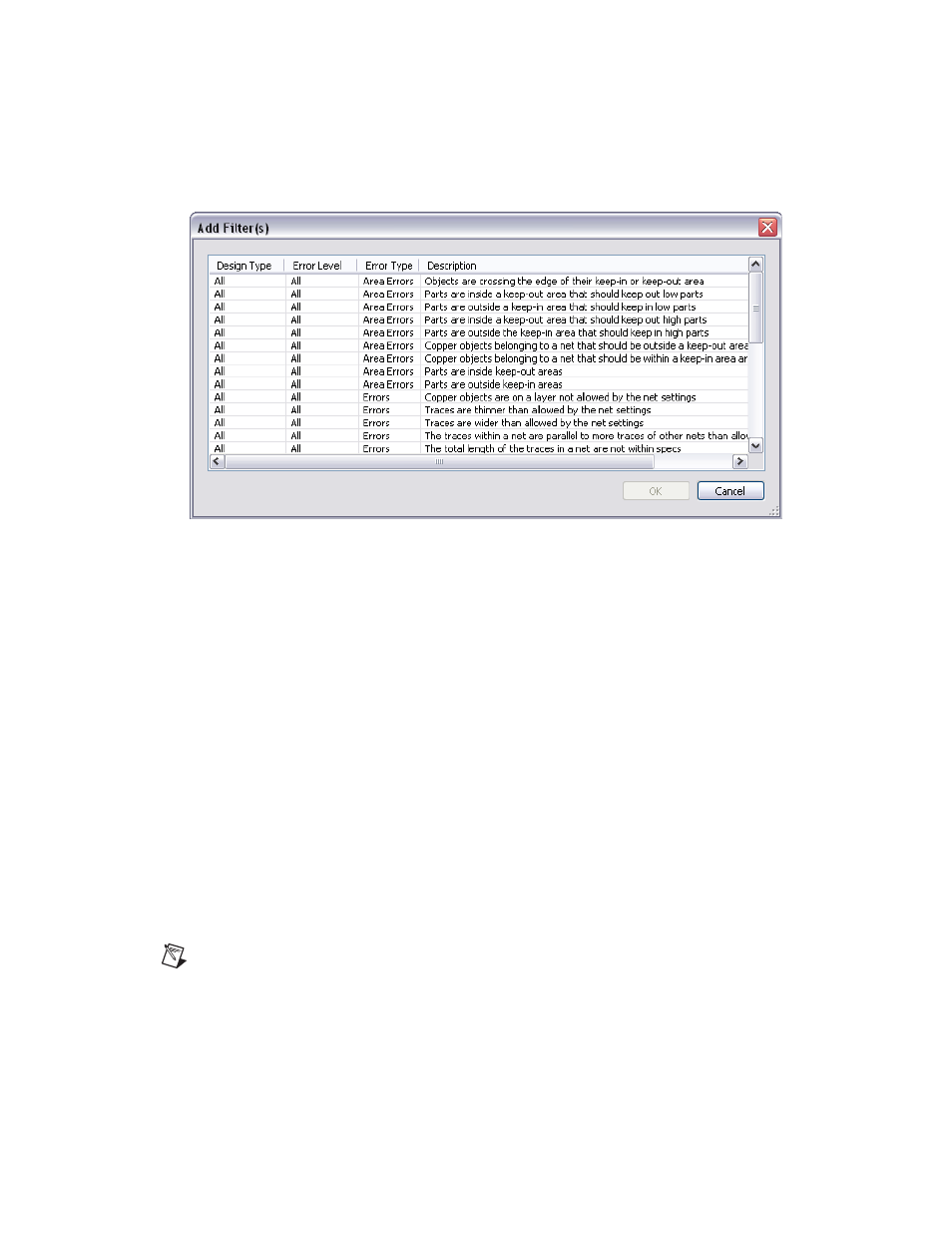

3. Select the error type(s) to add to the filter. You can use the Ctrl and
Shift keys to select multiple items.
4. Click OK to close the Add Filter(s) dialog box and add the selected
items to the Filter Manager.
5. Click Close to close the Filter Manager dialog box. The selected error
types no longer display in the DRC tab.
To remove an error type from the Filter Manager, select the error type and
click Remove Filter.
To remove all error types, click Remove All.
Spreadsheet View: Results Tab
The Results tab displays the results of searching for elements in the design.
Refer to the
Searching for Design Elements section of Chapter 2,
Beginning a Design , for more information.
It also displays the results of running a connectivity check. Refer to the
Design»Connectivity Check section of Appendix A, Menus and
Commands , for more information.
Note The Results tab flashes red when it contains new data.
Double-click a line in this tab to zoom in on the corresponding area of the
design.
