Chapter 4 Working with Parts
NI Ultiboard User Manual 4-30 ni.com

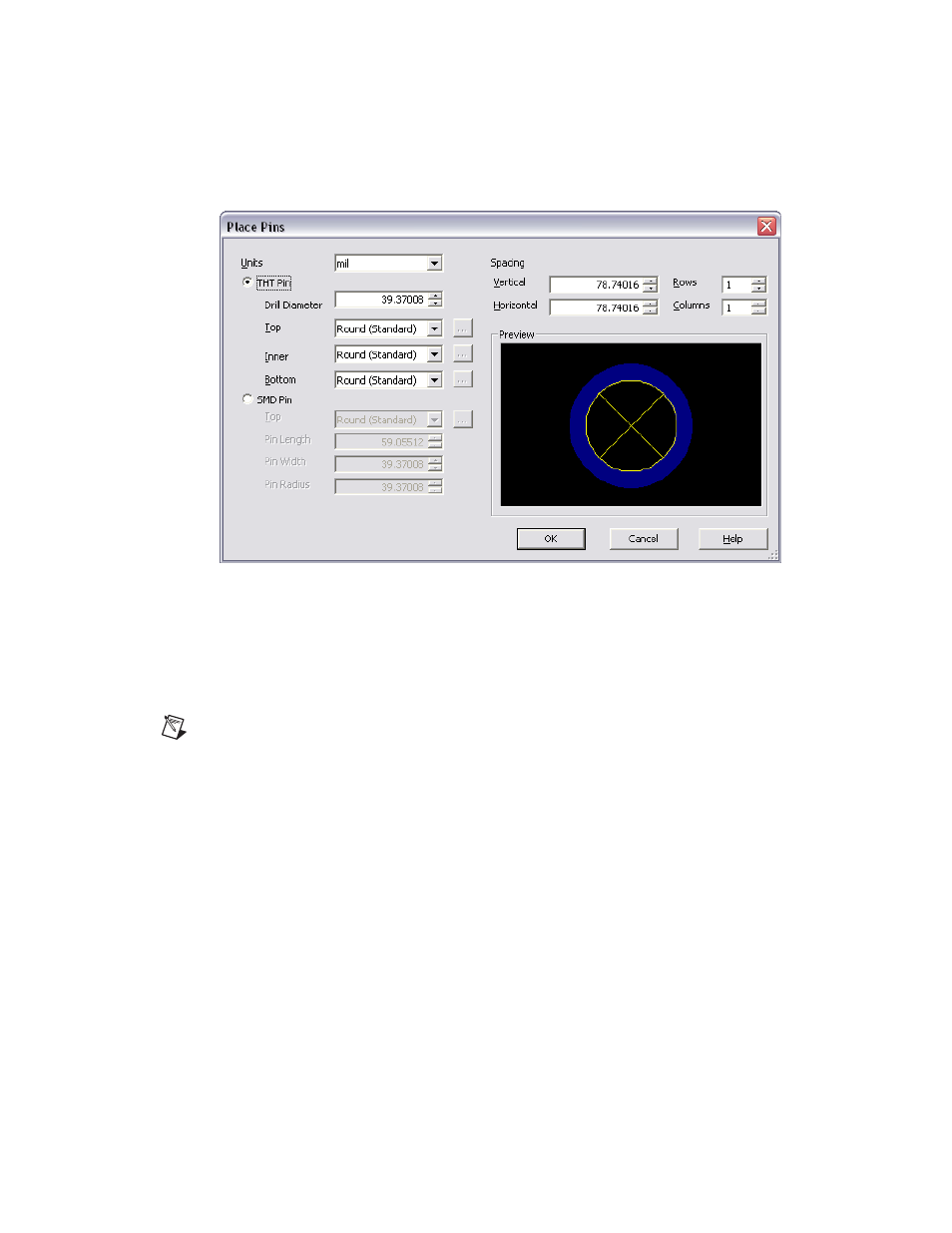

4. Indicate the pad type (THT or SMD) and its dimensions and spacing.
Changes appear in the Preview panel. When you have made the
necessary settings, click OK. The pad is attached to the pointer. Click
on the part to place it.
5. When finished, choose Edit»In-Place Part Edit again to end the
In-Place Edit function. The part appears with its changes.
Note You can save your edited part in the database for future use. Refer to the Adding
Parts using the Add Selection to Database Command section for more information.
Editing a Polygon
A vertex is a point of a polygon. You can add or remove vertices from
polygons, whether copper or non-copper.
