Chapter 5 Working with Traces and Copper
© National Instruments Corporation 5-29 NI Ultiboard User Manual
5. Select the net to use for the shield in the Shield net area:
• Use Net Settings—Select to use the shield set in the Spreadsheet
View (also set in the Net edit dialog box).
• GND—Select to activate the drop-down list, where you can pick
the net to use for the shield.
6. In the On DRC Error area, select the action to take when a DRC error
occurs.
7. In the On Other Failures area, select the action to take when other
errors occur.
8. In the Nets area, select the nets you wish to shield.
9. In the Layers area, select the layers on which you wish to place the
shielding.
10. Click OK. You are returned to the Net Shielding dialog box.
11. Click OK.

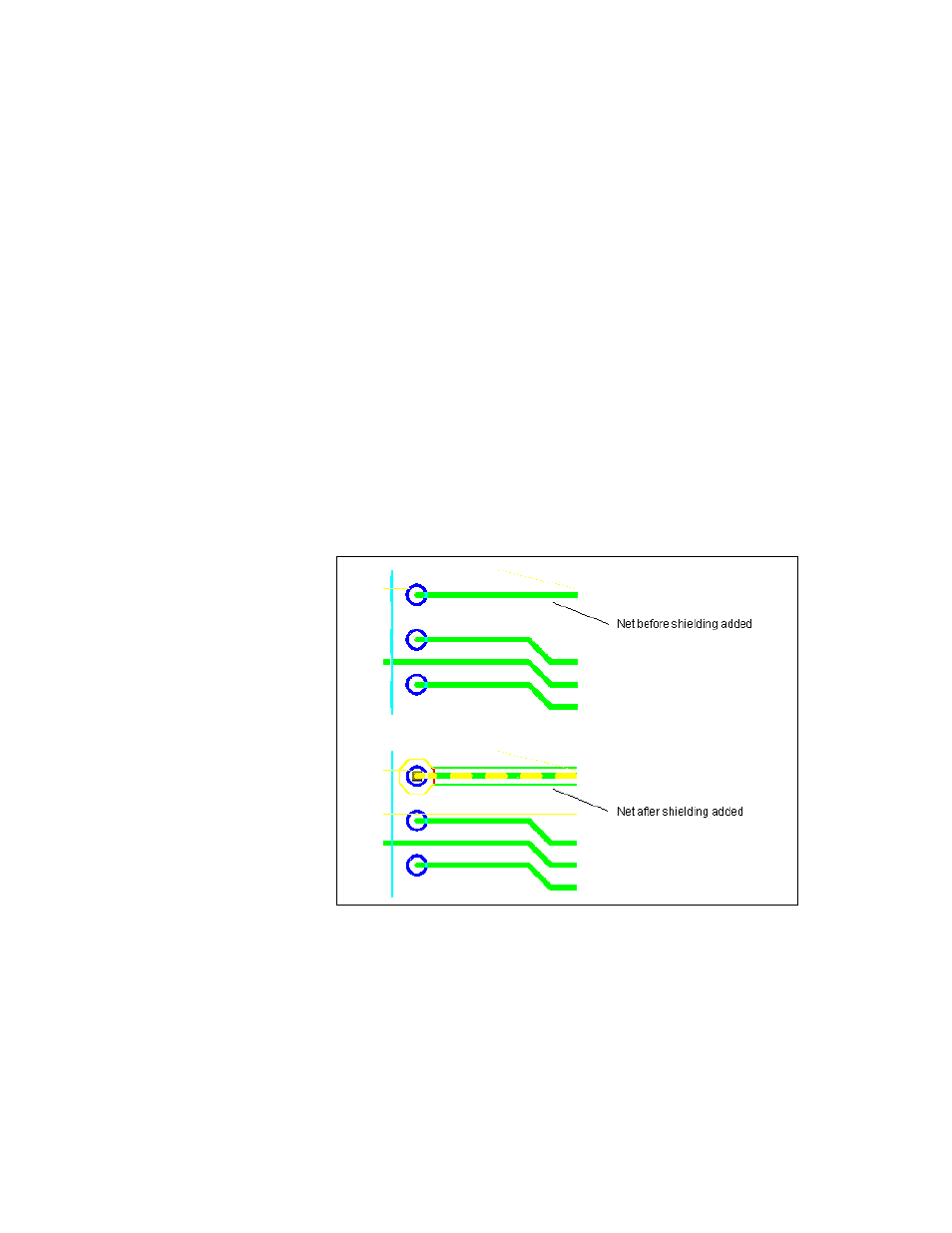

The shielding appears as illustrated below:
12. Results appear in the Results tab of the Spreadsheet View. You may
click on an error to go to the problem area.
