Chapter 1 User Interface
© National Instruments Corporation 1-33 NI Ultiboard User Manual
You can also right-click an item to display a popup that contains Copy;
Clear Results; Go to.

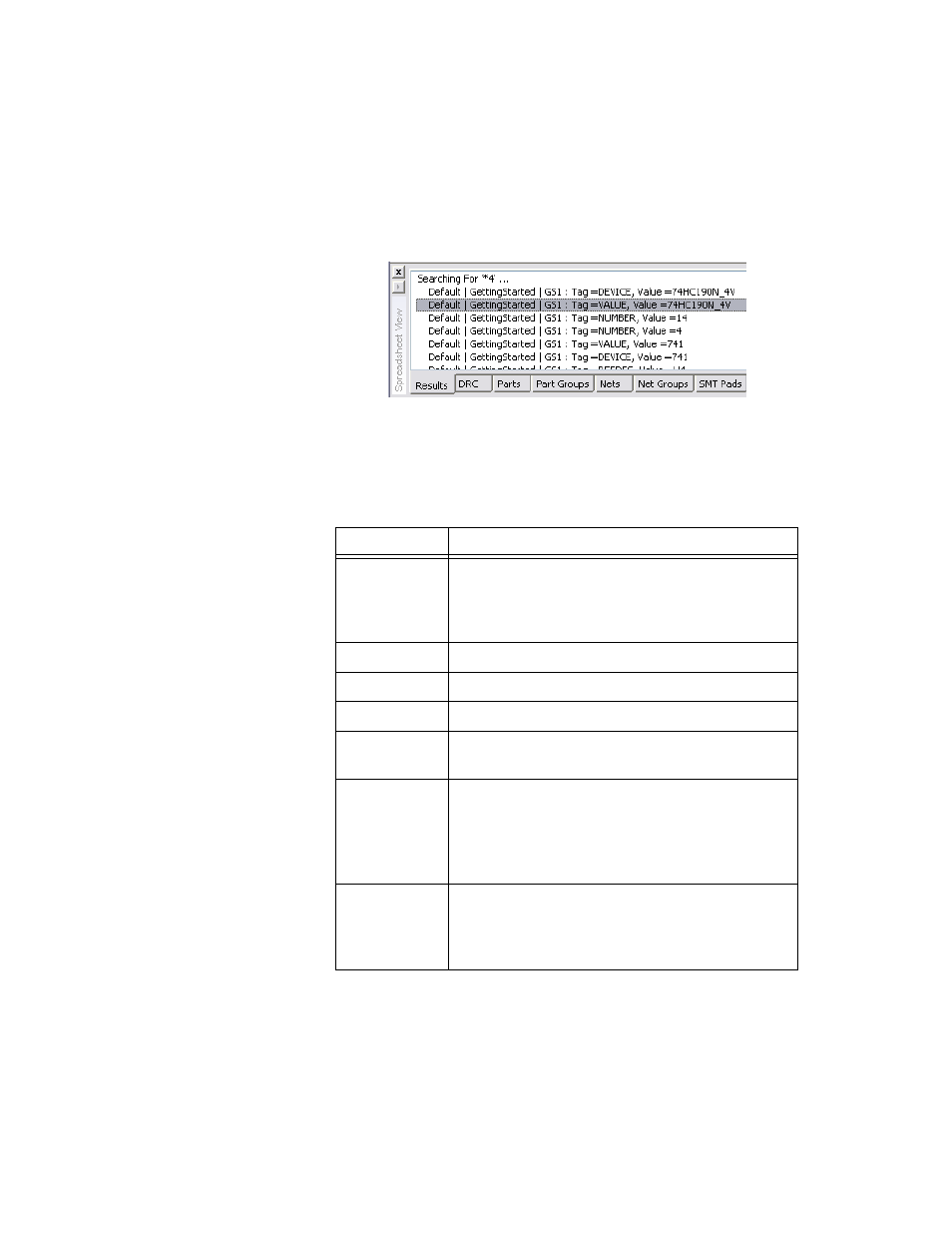

Spreadsheet View: Parts Tab
Use the Parts tab to work with the parts in your design. Refer to the Using
the Parts Tab in the Spreadsheet View section of Chapter 4, Working with
Parts , for more information.
Column Description
(unlabelled) The colored circle indicates whether the part has been
placed on the board outline (bright green), or is off to
the side awaiting placement (dark green). Orange
indicates the part has been locked.
RefDes The part’s Reference Designator (unique identifier).
Value The part’s value, for example, 150 pF for a capacitor.
Shape The physical footprint of the part.
Locked Yes indicates that the part cannot be moved. No
indicates that the part can be moved.
Trace
Clearance This is the minimum spacing allowed between the
part and any trace. You can enter a value here, or use
the Group Editor. Refer to the
Working with the
Group Editor section of Chapter 3, Setting Up a
Design , for more information.
Part Spacing This is the minimum spacing allowed between parts.
You can enter a value here, or use the Group Editor.
Refer to the
Working with the Group Editor section of
Chapter 3, Setting Up a Design , for more information.
