National Instruments Graphical User Interface Ultiboard User Manual
Page 166
Chapter 5
Working with Traces and Copper
5-22
ni.com

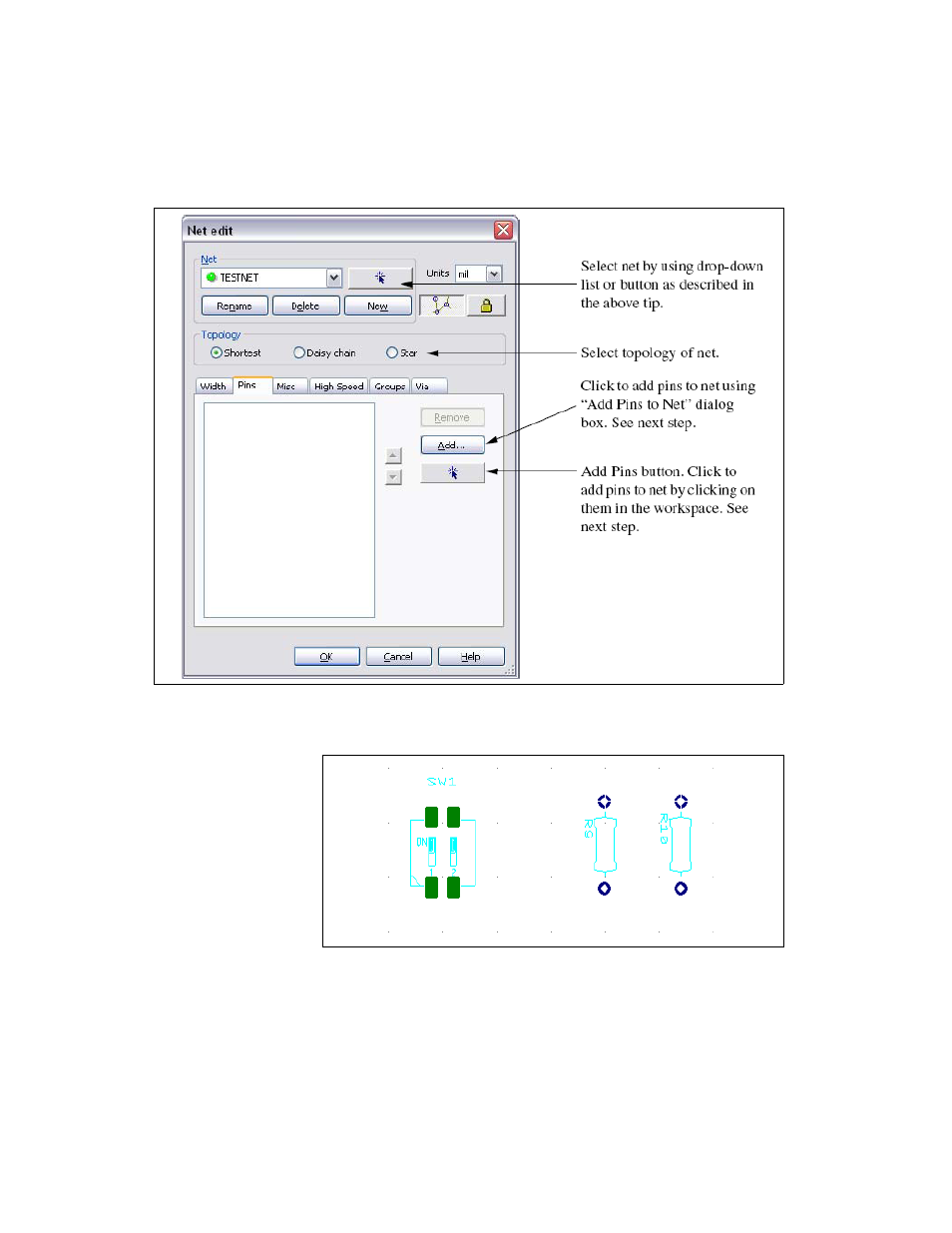

The remainder of this section uses the example shown in the figure
below. The parts shown are not connected any net.
3.
Click the
Add pins
button
and click the desired pin in the workspace.
Continue until all pins for the net are listed in the Pins area.
