Chapter 7 Installing Internal Options
5
Attach the top cover.
"7.2 Removing and Attaching the Top Cover" (pg.174)
Be sure to keep the removed slot cover for later use.
To remove the expansion card, simply reverse the installation procedures.
■ Installing an Expansion Card in Slots 4 and 5 (Standard)
1
Turn off the server and peripheral devices and remove the top cover.
"7.2 Removing and Attaching the Top Cover" (pg.174)
2
Touch a metal part of the server to discharge static electricity.
3

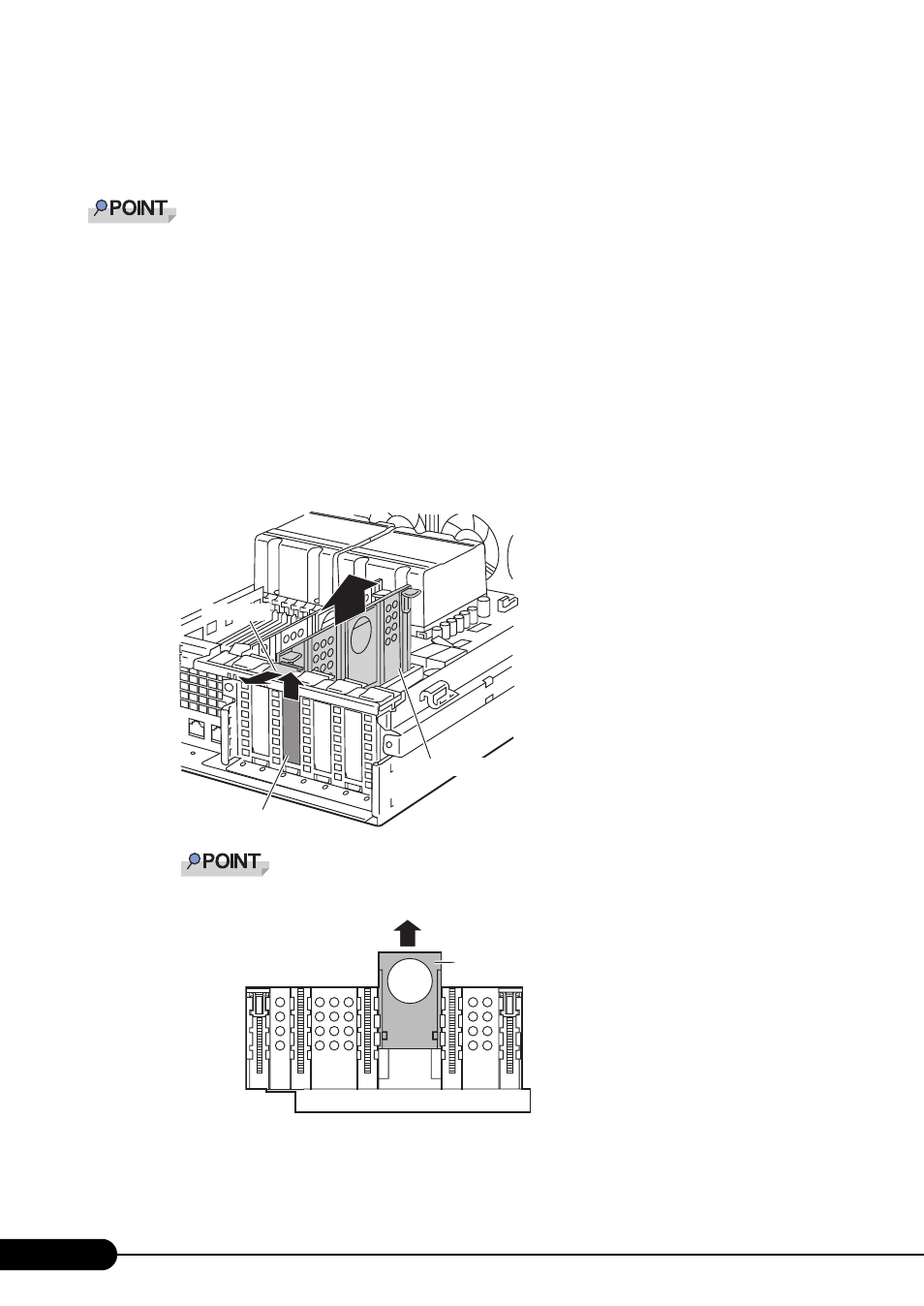

Release the slide lock (1), and remove the PCI card holder and slot cover (2,
3).
Be sure to keep the removed slot cover for later use.
To remove the PCI card holder, pull out the handle.
Slide lock
PCI card holder
Slot cover
1
2
3
Handle
