ACCULINK 336x E1 NTU
4-22
December 1996
3360-A2-GB20-20

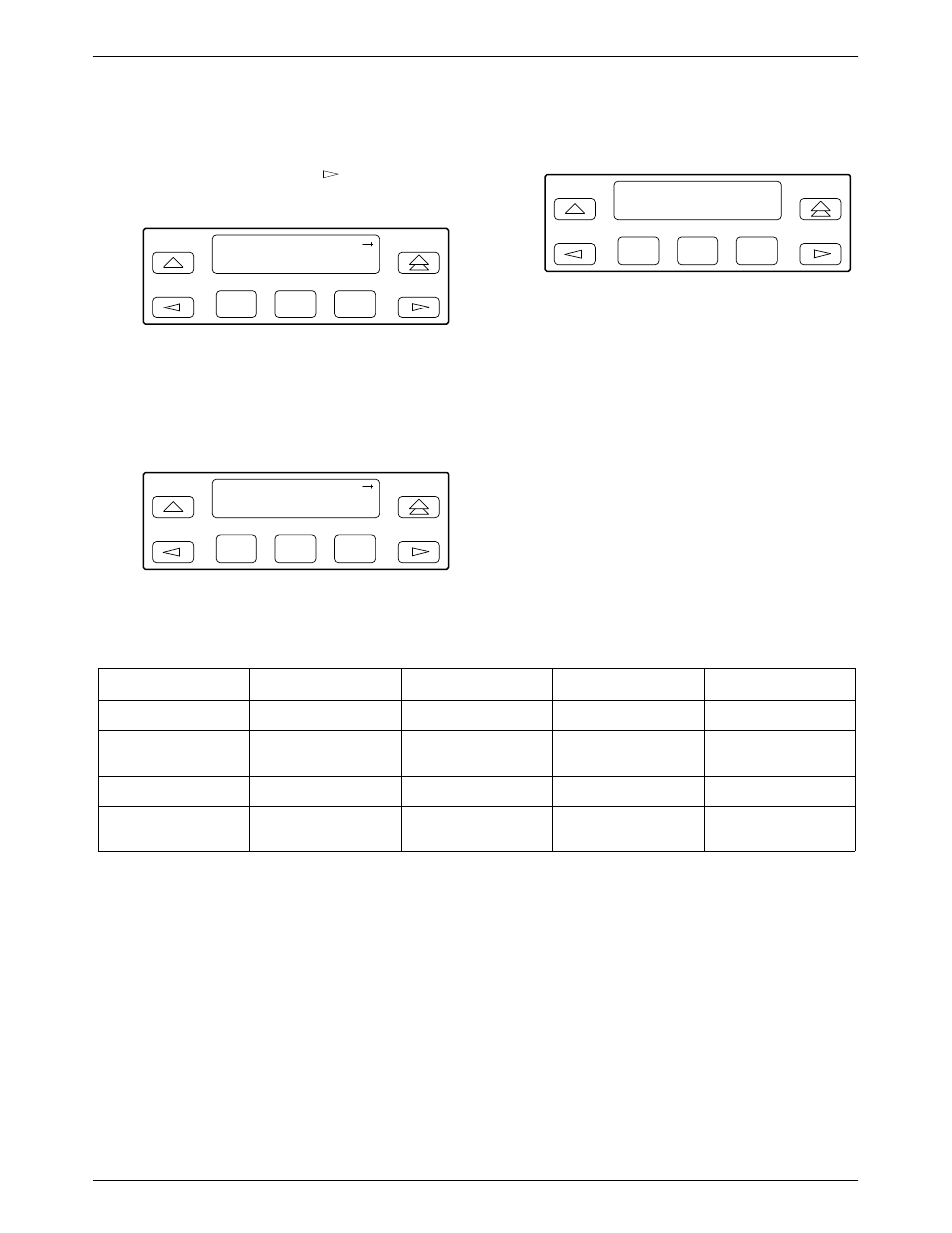

4. From the Patterns Send screen, press F1 to send a
32767 pattern, F2 to send a 511 pattern, F3 to send
a 1-in-8 pattern, or press the
key and the
appropriate Function key to send a QRSS pattern.
F1
Patterns: Send
32767
511
1in8
F2
F3
If you send a 32767 or 1-in-8 pattern, skip Step 5.
5. From the Send screen, press the Function key that
corresponds to the port for which you want to send
a test pattern. Use the scroll keys, if necessary.
F1
Send:
Name
Prt1
Prt2
Prt3
F2
F3
The Test Started screen appears.
F1
Send:
Name and Dest
Test Started
F2
F3
If the E1 NTU is already sending the test pattern
you selected, the message Already active appears.
If you selected an incompatible test pattern
combination, the message Invld Test Combo
appears. See
Table 4-10
Valid Send Test Pattern Combinations
32767 (Network)
511 (Port)
1-in-8 (Network)
QRSS (Port)
32767 (Network)
N/A
NO
NO
NO
511 (Port)
NO
YES (on
separate ports)
NO
YES (on
separate ports)
1 in 8 (Network)
NO
NO
N/A
NO
QRSS (Port)
NO
YES (on
separate ports)
NO
YES (on
separate ports)
