Operation
3-31 3360-A2-GB20-20 December 1996

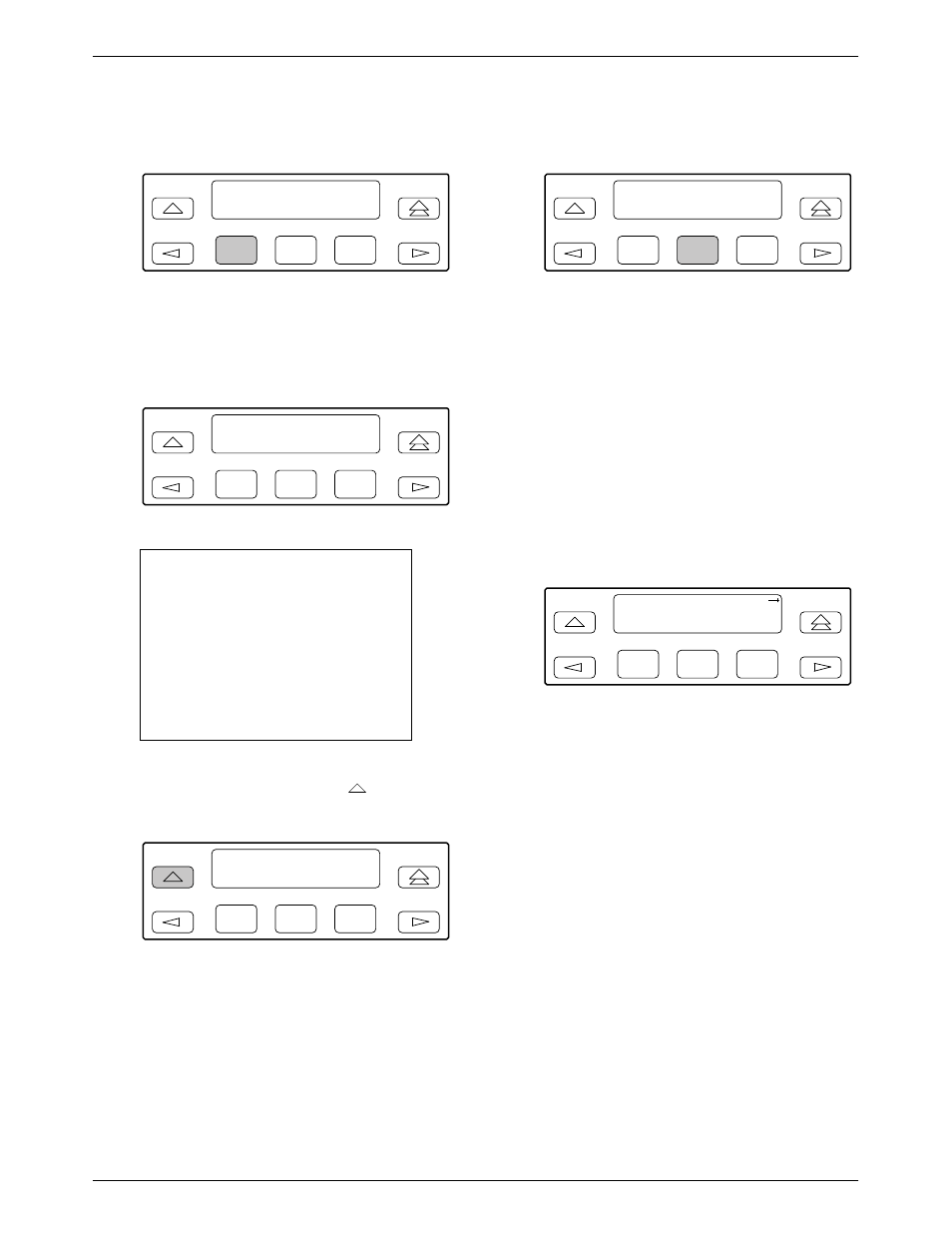

7. From the DTE Channels screen, select TS16.
F1
DTE Channels:
TS16
Assign
F2 F3
8. Pressing F2 (Rsvd) reserves time-slot 16 for
Common-Channel Signaling (CSS). Pressing F3
(CAS) selects Channel-Associated Signaling. Data
is the default for TS16.
F1
TS16:Data
Data
Rsvd CAS
F2 F3
NOTE
If TS16 is reserved for CSS by
selecting Rsvd, D16 will be
assigned to N16, and the G.703
DTE DS0 channels allocated to
the network must be directly
connected to the corresponding
channel (e.g., D1 to N1, D2 to N2,
etc.).
9. From the TS16 screen, press the key to return
to the DTE Channels screen.
F1
TS16:Data
Data
Rsvd CAS
F2 F3
10. From the DTE Channels screen, select Assign.
F1
DTE Channels:
TS16
Assign
F2 F3
11. Press the Function key below the network channel
desired. Each time that you press the Function key,
the DTE channel number will scroll up one
number. If the network channel is currently
unassigned (‘‘–” is displayed on Line 2), the DTE
channel number initially displays the same number
as the corresponding network channel number.
However, if the network channel is currently
assigned, the DTE channel number is shown as
Dn. Pressing the Function key for D31 wraps the
display back to D1. Only those channels that are
not already assigned will appear on the LCD when
scrolling. The network channels assigned to ports
(Prt1...Prt4) are unavailable for assignment.
F1
N1 N2 N3
D1 D2 –
F2 F3
