Installing the Redundant –
ā
48 Vdc Power
Supply
To install the E1 NTU using a redundant – 48 Vdc
power supply, refer to Figure 2-11 and use the following
procedure.
To install the redundant – 48 Vdc power supply,
1. Connect the black wire to the – 48 Vdc return
source B.
2. Connect the red wire to the – 48 Vdc return
source A.
3. Connect the green wire to a suitable earth ground.
4. Connect the orange wire to the – 48 Vdc input
source B.
5. Connect the blue wire to the – 48 Vdc input
source A.
6. Cut the white wire off at the outer insulation.
7. Plug the power connector into the E1 NTU.
1
2
3
4
5
6
BLACK
RED
GREEN
WHITE
ORANGE
BLUE
– 48 VDC RETURN B
– 48 VDC RETURN A
EARTH GROUND
– 48 VDC INPUT B
– 48 VDC INPUT A
495-14745
X
NTU POWER
PLUG TO CUSTOMER-SUPPLIED BATTERY
CABLE NUMBER 3100-F1-520

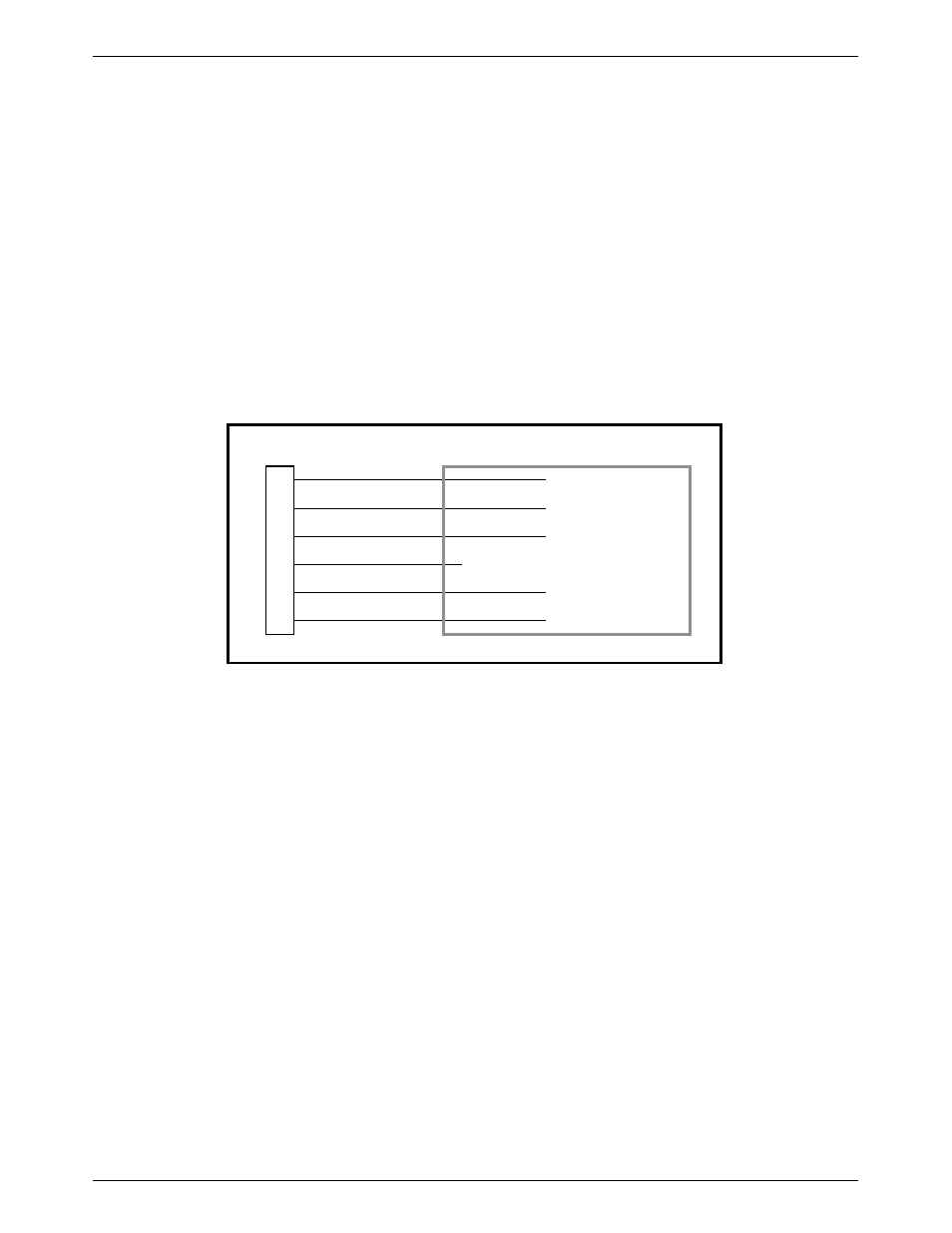

Figure 2-11. –
ā
48 Vdc Redundant Source Power Supply Pinouts
