ACCULINK 336x E1 NTU
3-30 December 1996 3360-A2-GB20-20

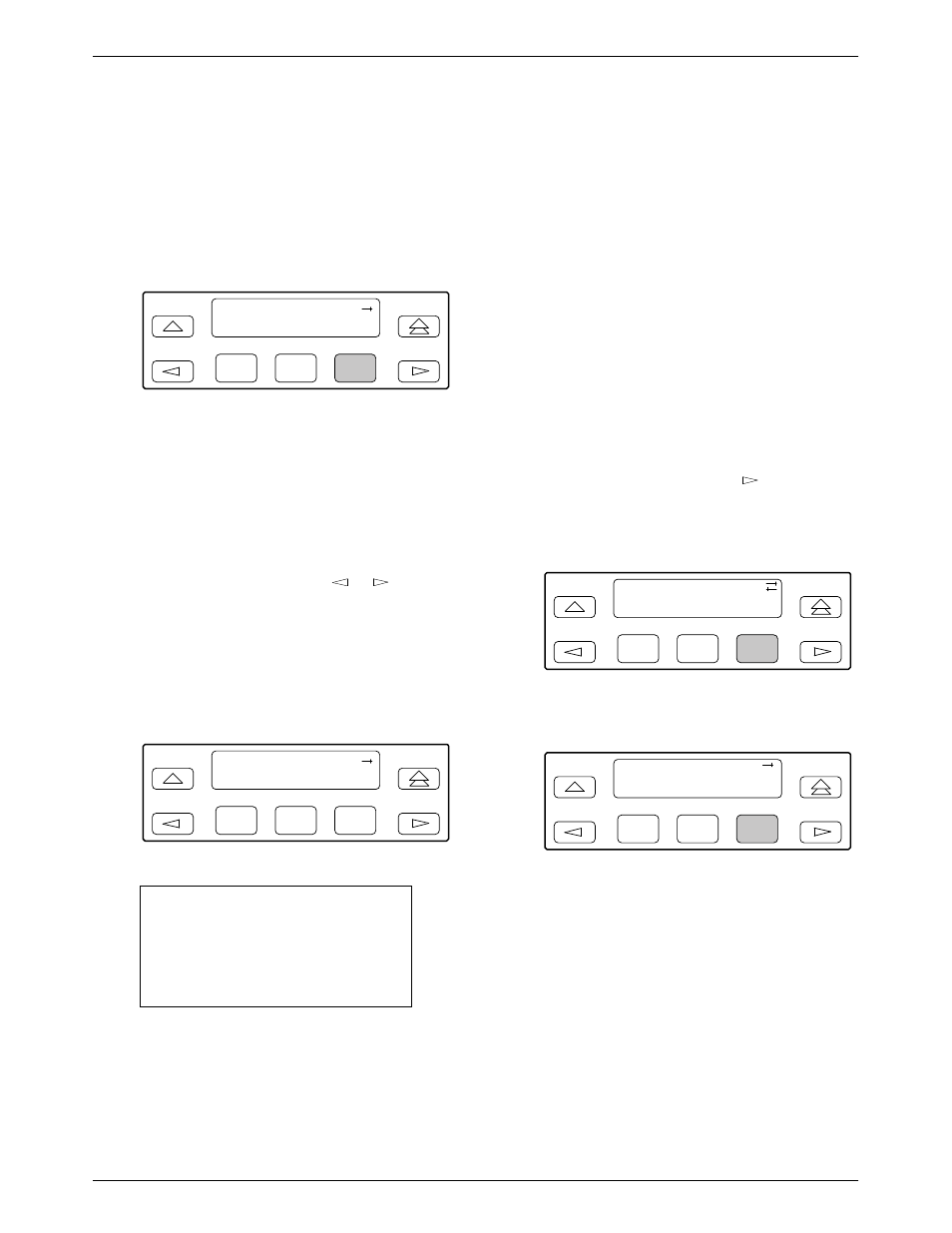

Individual Channel Assignment Method
The Assign By configuration option screen appears
after you select a port.
To assign by the individual channel method,
1. Press F3 (Chan).
F1
Assign By:
Next Block
Chan
F2 F3
2. Press F1 (Next) to display the next configuration
option (channel allocation).
3. Line 1 displays the 31 channels for the network
interface or the G.703 DTE interface, depending
on which destination was chosen. This example
assumes that the network is the destination. Line 2
displays what is allocated to the DS0 channel
shown in Line 1. Pressing the
or key
scrolls the channels onto the screen in groups of
three. Select the channel by pressing the Function
key under the desired number. Portn appears. The
port is assigned to that channel. To deallocate a
port, press the Function key under that port
number. Pressing the Function key under channels
assigned to other ports has no effect.
F1
N1 N2
Next Prt1 Prt2
F2 F3
NOTE
N16 will not appear if time-slot 16
(TS16) is reserved for signaling.
(The default is TS16 available for
data.)
Allocating DS0 Channels from the G.703
DTE Interface to the Network Interface
By using the configuration options, you can allocate
DS0 channels from the G.703 DTE interface to the
network interface and specify whether time-slot 16 (TS16)
is reserved for signaling information.
To allocate DS0 channels from the G.703 DTE
interface to the network interface,
1. From the top-level menu screen, select Cnfig.
2. Select the configuration option set to be copied
into the Edit area by using the appropriate
Function key. Use the scroll keys, if necessary.
3. Select Edit.
4. From the Edit screen, press the key until the
Chan selection appears on the screen.
5. Select Chan.
F1
Edit:
Port
NET Chan
F2 F3
6. From the Channel Config screen, select DTE.
F1
Channel Config:
Dsply
Clear DTE
F2 F3
