ACCULINK 336x E1 NTU
2-8 December 1996 3360-A2-GB20-20
Cabling Examples
The E1 NTU is supplied with an ac power module.
Optional cables that you can order from the company
are described in Appendix D, Pin Assignments .

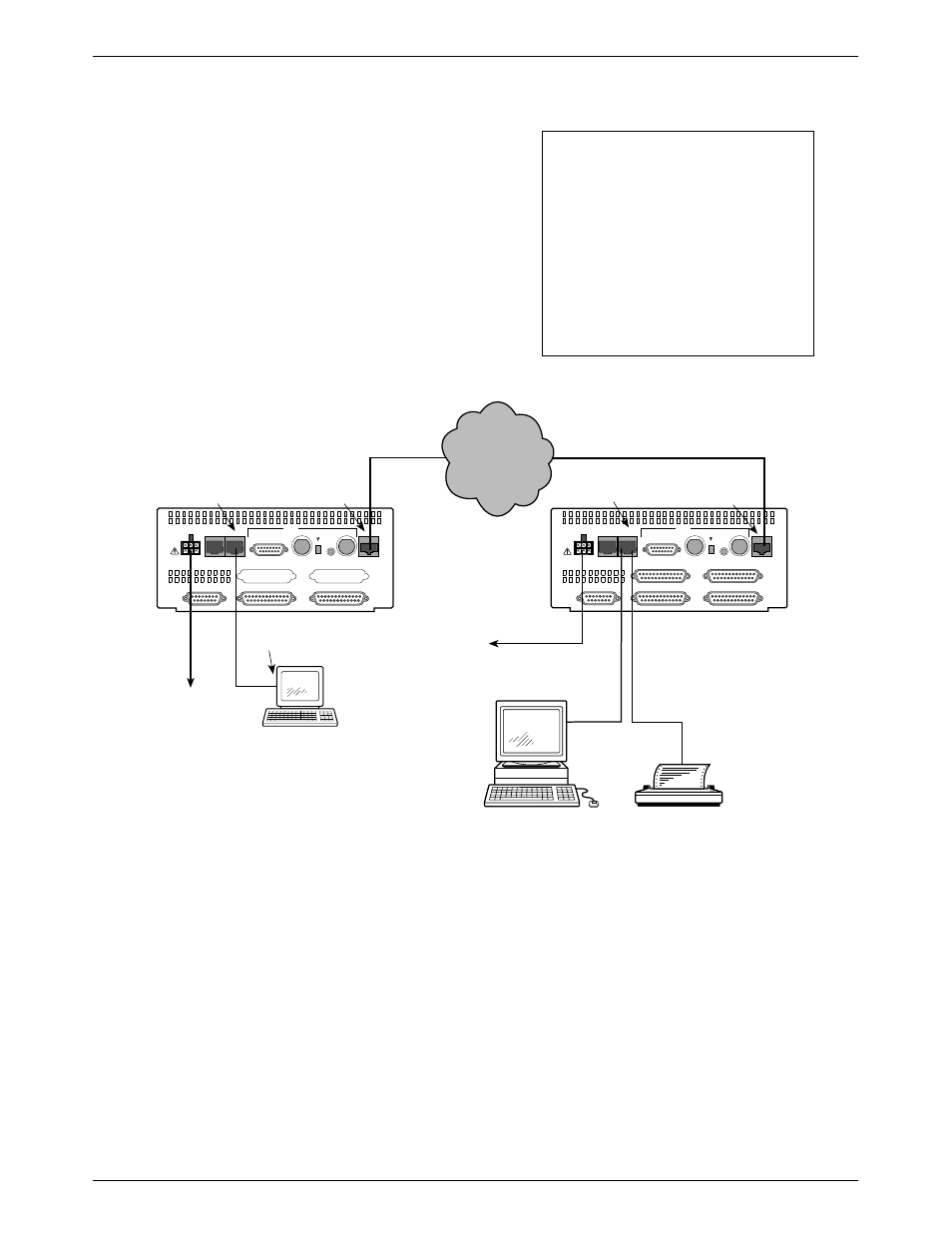

Figure 2-12 illustrates some cabling examples.
NOTE
The 120
Ω
/ 75
Ω
switch selects
either the 120 ohm balanced
G.703 interface or the 75 ohm
unbalanced G.703 interface. The
RX SHIELD switch selects either
an “open” or “earth” shield
connection for the 75 ohm RX
interface. (This switch must be set
to “open” when using the 120 ohm
interface.)
COM
PORT RX SHIELD
OPEN
COM
PORT RX SHIELD
OPEN
POWER HDSL
NETWORK
120 Ω
G.703 AUX
PORT
OUT 75 Ω
120 Ω
IN
EARTH 75 Ω
TX RX
75 Ω
PORT 1 PORT 2 CLOCK IN
CAUTION: AUX PORT OR COM PORT MUST
NOT BE CONNECTED TO HDSL NETWORK
PORT 3 PORT 4
PORT 1 PORT 2 CLOCK IN
CAUTION: AUX PORT OR COM PORT MUST
NOT BE CONNECTED TO HDSL NETWORK
495-14746
TO AC
POWER
MODULE
TO DC
POWER
(OPTIONAL)
3100-F1-550
3100-F1-540
NTU NTU
SERIAL
PORT
COM PORT
HDSL
NETWORK
COM PORT
HDSL
NETWORK
3100 SERIES
FRONT PANEL
EMULATION
SOFTWARE,
3100-C1-010
NOTE:
3100-F1-520
SNMP
MANAGER
OR
HDSL HDSL
NETWORK
POWER HDSL
NETWORK
120 Ω
G.703 AUX
PORT
OUT 75 Ω
120 Ω
IN
EARTH 75 Ω
TX RX
75 Ω
PORT 3 PORT 4
Figure 2-12. Cabling Examples
