Monitoring MLT traffic 81
—End—
Monitoring MLT traffic
You can monitor the bandwidth usage for the MultiLink Trunk member ports
within each trunk in your configuration by selecting the traffic type to monitor.
To monitor MultiLink Trunk traffic:
Step Action
1 From the main menu, choose Application > MultiLink Trunk >
Utilization.

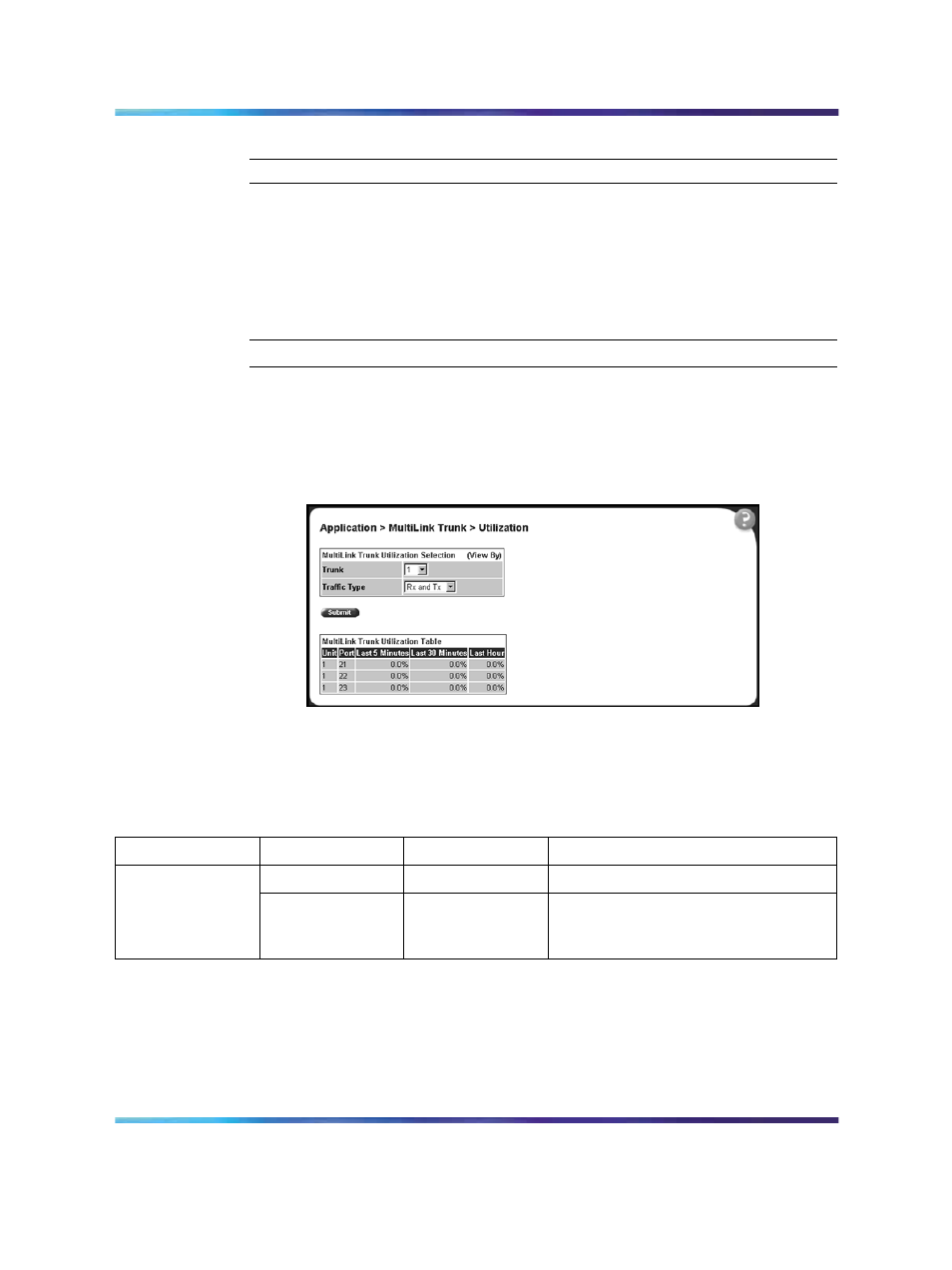

The Utilization page opens ( Figure 28 "Utilization page" (page 81) ).
Figure 28
Utilization page
Table 32 "Utilization page items" (page 81) describes the items on
the Utilization page.
Table 32
Utilization page items
Section Item Range Description
Trunk 1..6 Choose the trunk to be monitored. MultiLink Trunk
Utilization
Selection (View
By)
Traffic Type (1) RX and TX
(2) RX
(3) TX Choose the traffic type to be
monitored for percentage of
bandwidth utilization.
