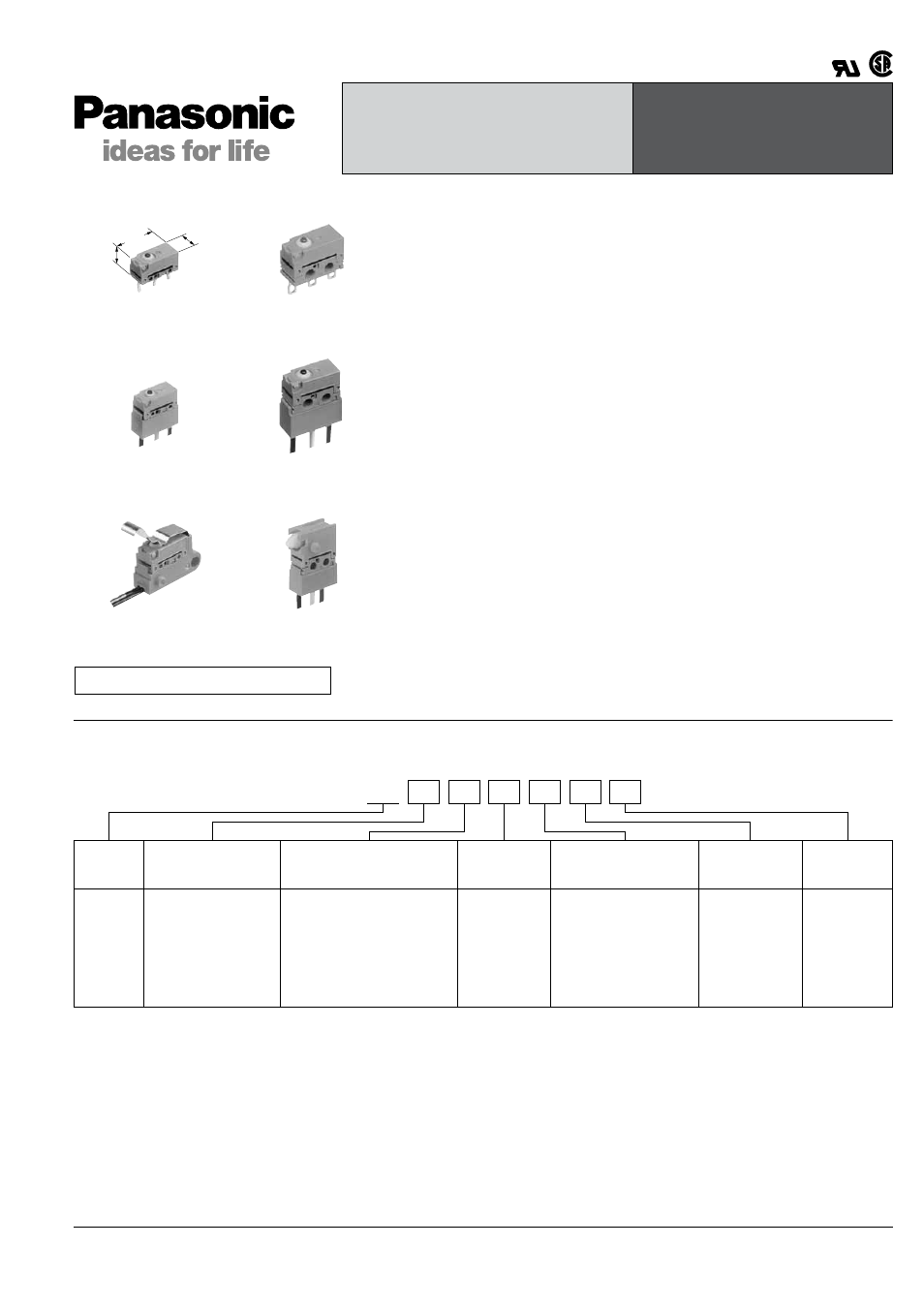

HIGH ENVIRONMENTAL
RESISTANCE
TURQUOISE SWITCHES
ABJ TYPE
Dust protected type (Mounting hole
2.3mm type)
Immersion protected type
(wire leads bottom type)
(Mounting hole
2.3mm type)
Immersion protected
(wire leads side type)
Long stroke type
12.8
6.5
6
Compliance with RoHS Directive
FEATURES
• Ultra-miniature size (12.8
Ч6.5Ч6 mm)
• Sealed construction for use in adverse environment-Sealed
construction by epoxy resin and rubber cap greatly reduces possible
miscontact due to contaminants such as dust. Conforming to IP67* of
IEC protective construction classification
• Elastomer double molding technology, an industry first and ultrasonic
swaging technology contribute to uniform sealing in high production
quantities
• UL/CSA approved (Except the long stroke type of ABJ2 and the side
wire leads type.)
• Long stroke type is available
Since the repeatability is excellent and the play distance (overtravel) from
the operating position is ample, the task of performing adjustments during
installation is easy.
Operating position accuracy
±0.4 mm
Overtravel= Min. 2.0 mm
As wide range of high pressure is achieved, a stable reliability is ensured
• Leaf lever side wire leads type added. We now offer two types.
M3 type installation hole
Fixed pin type
TYPICAL APPLICATIONS
• Industrial use video jack
• Automotive (ex. Device for opening and shutting of automobile doors)
* Based on the protective construction classification of IEC, items which
satisfy the test requirements are denoted with an IP designation.
Type of
switch
ABJ:
Turquoise
switch
J type
Size of
mounting hole
1:
2:
3:
4:
5:
1.2 mm
2.3 mm
3 mm
Fixed pin
(right side pin) type
Fixed pin
(left side pin) type
Terminal
4:
5:
6:
7:
8: Solder terminal
PC board terminal
Wire leads (bottom type)
Wire leads (right side type)
Wire leads (left side type)
Contact
arrangement
1:
2:
3:
SPDT
SPST-NC
(Wire leads
type only)
SPST-NO
(Wire leads
type only)
Actuator
0:
2:
4:
6:
8:
L:
Pin plunger
Hinge lever
Simulated roller lever
Roller lever
Leaf lever
(Mounting hole 3 mm
lead wire type only)
Long stroke type
Operating force
by pin plunger
(max.)
4:
6:
7: 1.23 N
1.96 N
2.45 N
(Long stroke
type only)
Contact
0:
1: AgNi alloy
AgNi alloy
+ Au clad
Ex. ABJ 1 4 1 0 4 0
Remarks: 1. Standard packing: Dust protected type 100 pcs./carton, 2,000 pcs./case; Immersion protected type 50 pcs./case.
2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
