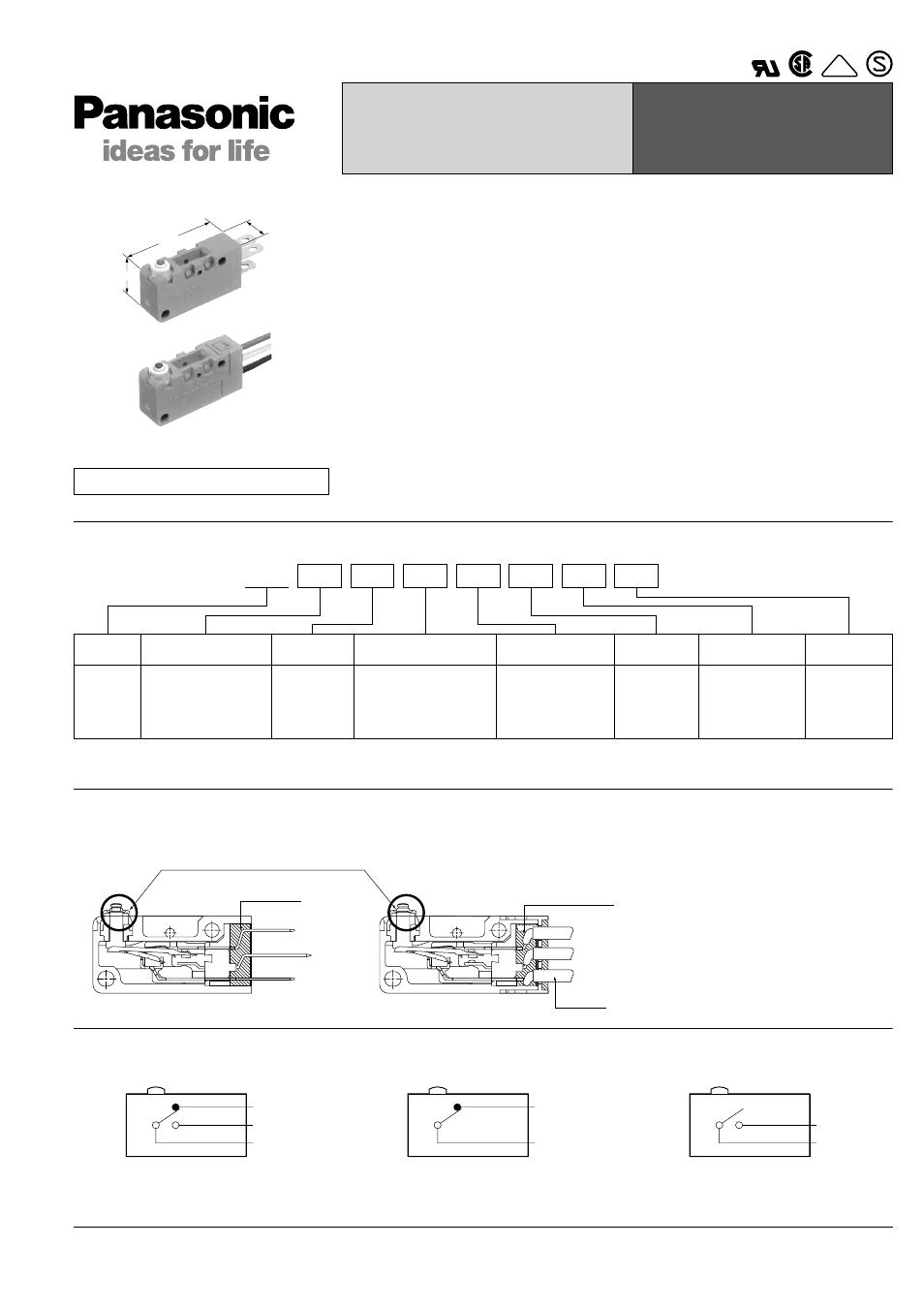

Panasonic ABV User Manual
Turquoise switches abv type, Abv1, Features

ABV1
ORDERING INFORMATION
CONSTRUCTION
CONTACT ARRANGEMENT
HIGH ENVIRONMENTAL
RESISTANCE
TURQUOISE SWITCHES
ABV TYPE
VDE
10.3
33.0
15.9
Compliance with RoHS Directive
FEATURES
• Miniature size (33
Ч15.9Ч10.3 mm)
• Sealed construction for use in adverse environment-Sealed construction by
epoxy resin and rubber cap greatly reduces possible miscontact due to
contaminants such as dust. Conforming to IP67* of IEC protective construction
classification
• Elastomer double molding technology, an industry first and ultrasonic swaging
technology contribute to uniform sealing in high production quantities
• UL/CSA/VDE/SEMKO approved
* Based on the protective construction classification of IED, items which satisfy the test
requirements are denoted with an IP designation.
TYPICAL APPLICATIONS
• Automotive
• Agricultural devices
• Industrial equipment
Type of
switch
ABV1:
Turquoise
switch
V type
Terminal
2:
6:
.187 quick-connect
terminal
Wire leads
Contact
arrangement
1:
2:
3:
SPDT
SPST-NC
SPST-NO
Actuator
0:
2:
4:
5:
6:
Pin plunger
Hinge lever
Simulated roller lever
Short roller lever
Roller lever
Operating force by
pin plunger (max.)
4:
5:
0.98 N
1.96 N
Contact
0:
1:
AgNi alloy
AgNi alloy
+ Au clad
3: UL/CSA/VDE/
SEMKO
Agency standard
R: Improved
short roller
lever
Short roller
lever
Ex.
ABV1
2
1
0
4
1
3
R
Remarks: 1. Standard packing: Dust protected type 50 pcs./carton, 500 pcs./case; Immersion protected type 50 pcs./case.
2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
Rubber cap
Ultrasonic swaging technology contribute for sealing
Epoxy resin
Epoxy resin (include)
Wire leads
.187 quick-connect terminal
Wire leads
1. SPDT
2. SPST-NC
3. SPST-NO
COM
NO
NC
COM
NC
COM
NO
