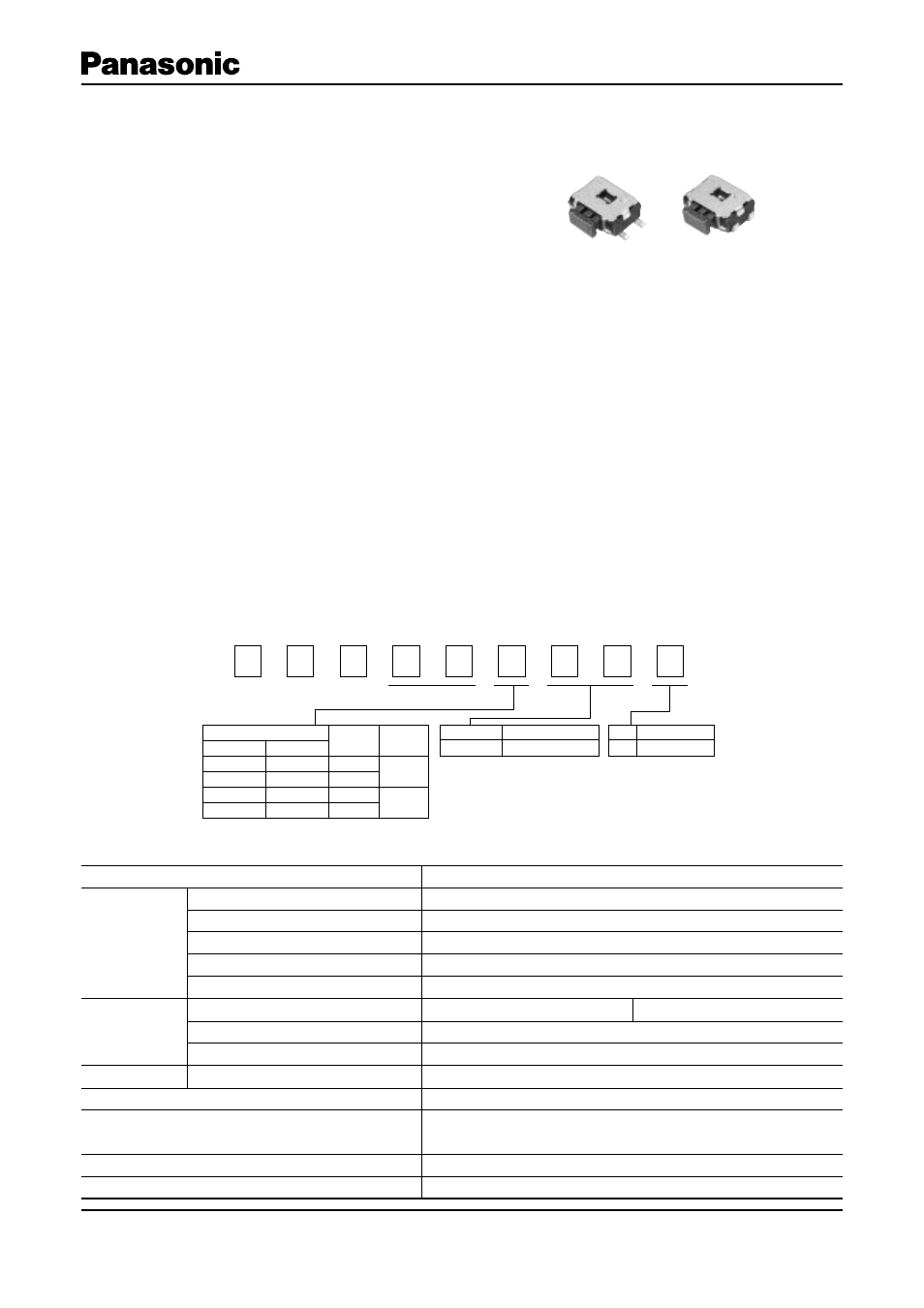

Light Touch Switches/EVQPU
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
E
1
V
2
Q
3 4 5 6 7 8 9
Type
7th & 8th
02
Mounting Height
1.65 mm
9th
K
Push Plate Color
Black
P U 0 2 K
2.2 N
1.6 N
Operating
Force
Terminal
Type
Straight
J-bent
Straight
J-bent
6th
Without Boss
A
B
J
K
With Boss
C
D
L
M
Small-sized Side-operational SMD
Light Touch Switches
Type: EVQPU
■
Specifi cations
■
Explanation of Part Numbers
Type Snap action / Push-on type SPST
Electrical
Rating 10 µA 2 Vdc to 50 mA 12 Vdc (Resistive load)
Contact Resistance 500 m ȑ max.
Insulation Resistance 100 M ȑ min. (at 100 Vdc)
Dielectric With stand ing Voltage 250 Vac for 1 minute
Bouncing 10 ms max. (ON, OFF)
Mechanical
Operating Force 1.6 N +0.7 N 2.2 N +0.8 N
Travel 0.3 mm +0.1 mm
Push Strength 30 N (1 minute)
Endurance Operating Life 100000 cycles min.
Operating Temperature –20 °C to +70 °C
Storage Tem per a ture
–40 °C to +85 °C (Bulk)
–20 °C to +60 °C (Taping)
Minimum Quantity/Packing Unit 4000 pcs. Embossed Taping (Reel Pack)
Quantity/Carton 20000 pcs.
–0.2
–0.7 –0.4
■
Features
●
External dimensions : 4.7 mm ҂3.5 mm, Height 1.65 mm
●
A wide range of terminal type : J-bent, Straight
■
Recommended Applications
●
Car navigation, Car audio
