Page 90: Configuring ptz parameters

76
Remote Viewing
Configuring PTZ Parameters
The system is capable of manipulating PTZ cameras (not included) that are connected to
the system. Please note that you will need PTZ information from the PTZ manufacturer’s
users guide.
To configure PTZ settings:
1

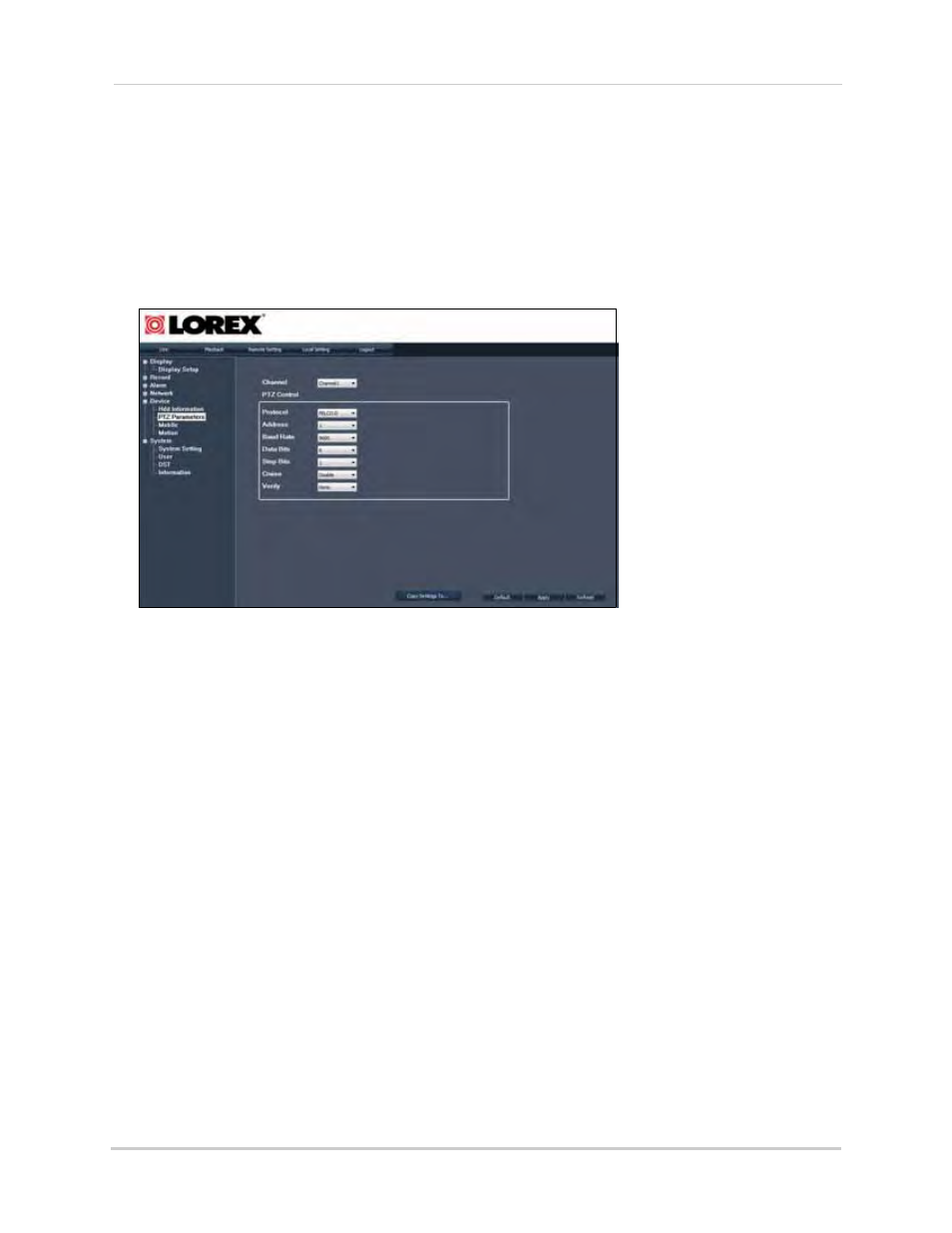

Click Remote Setting>Device>PTZ Parameters.
2
Configure the following:
• Channel: Select the channel that the PTZ camera connects to
• Protocol: Select the protocol of the PTZ camera*
• Address: Select the address of the PTZ camera*
• Baud Rate: Select the baude rate of the PTZ camera*
• Data Bit: Select the data bit rate of the PTZ camera*
• Stop Bit: Select the stop bit rate of the PTZ camera*
• Verify: Select from Odd, Even, Mark, or Space.*
*Consult the PTZ camera’s instruction manual for protocol and configuration details
Optional: Click the Copy Settings To button to copy the PTZ settings to different channels.
3
Click Apply to save your settings.
For details on connecting a PTZ camera to your system, see “Appendix H: Connecting a PTZ
Camera” on page 112.
