Basic Setup
Basic Setup

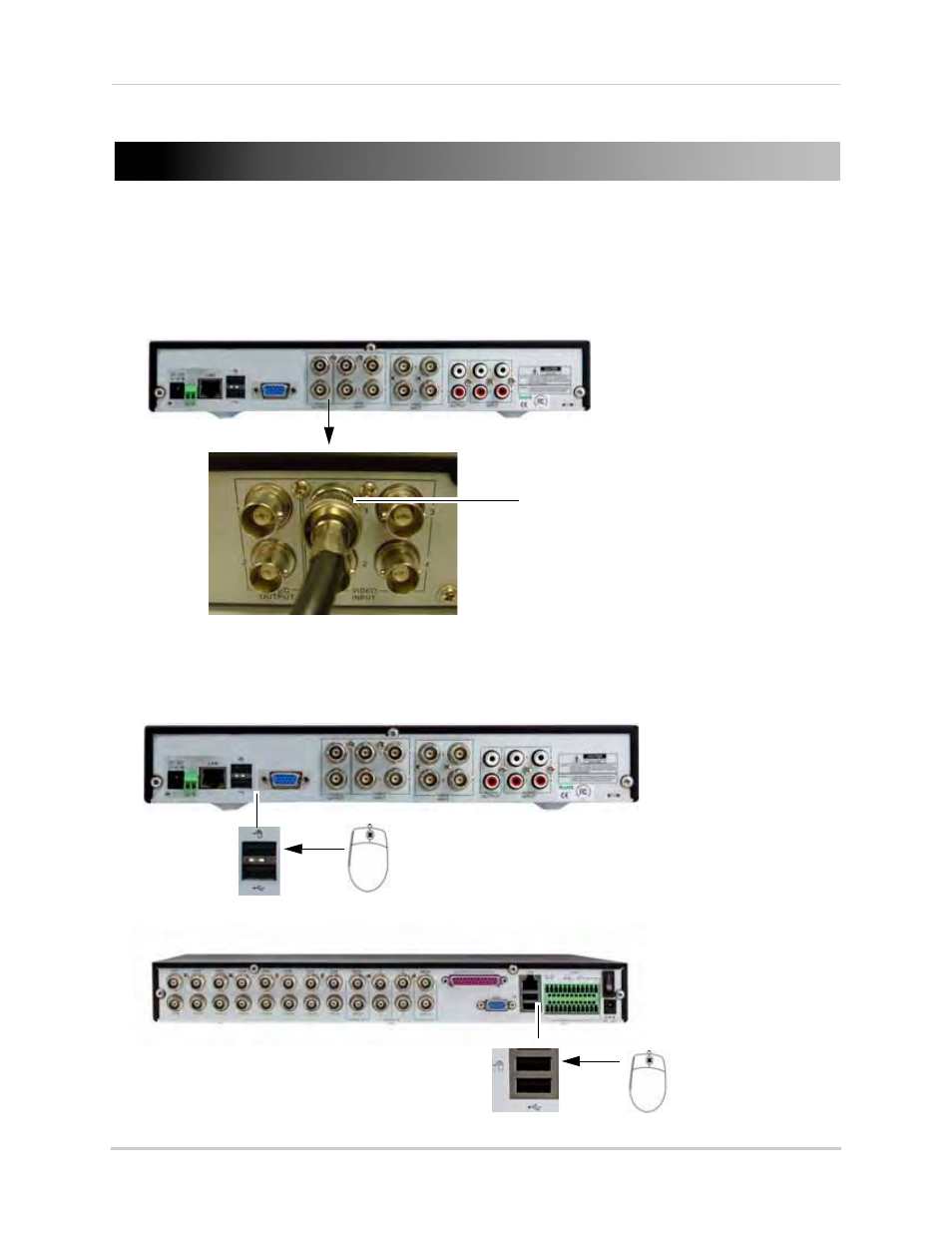

Step 1: Connect the BNC cameras.
• Connect the BNC cameras to the BNC ports (labeled VIDEO INPUT) on the rear panel of the
system.
Step 2: Connect the mouse
• Connect a USB mouse to the USB port on the rear panel of the system.
Push and twist the BNC
connector clockwise to
secure it to the BNC port.
*8-channel model shown
*8-channel model shown
4/8 Channel Model
16 Channel Model
Connect the mouse to the
TOP usb port.
