4
16-channel

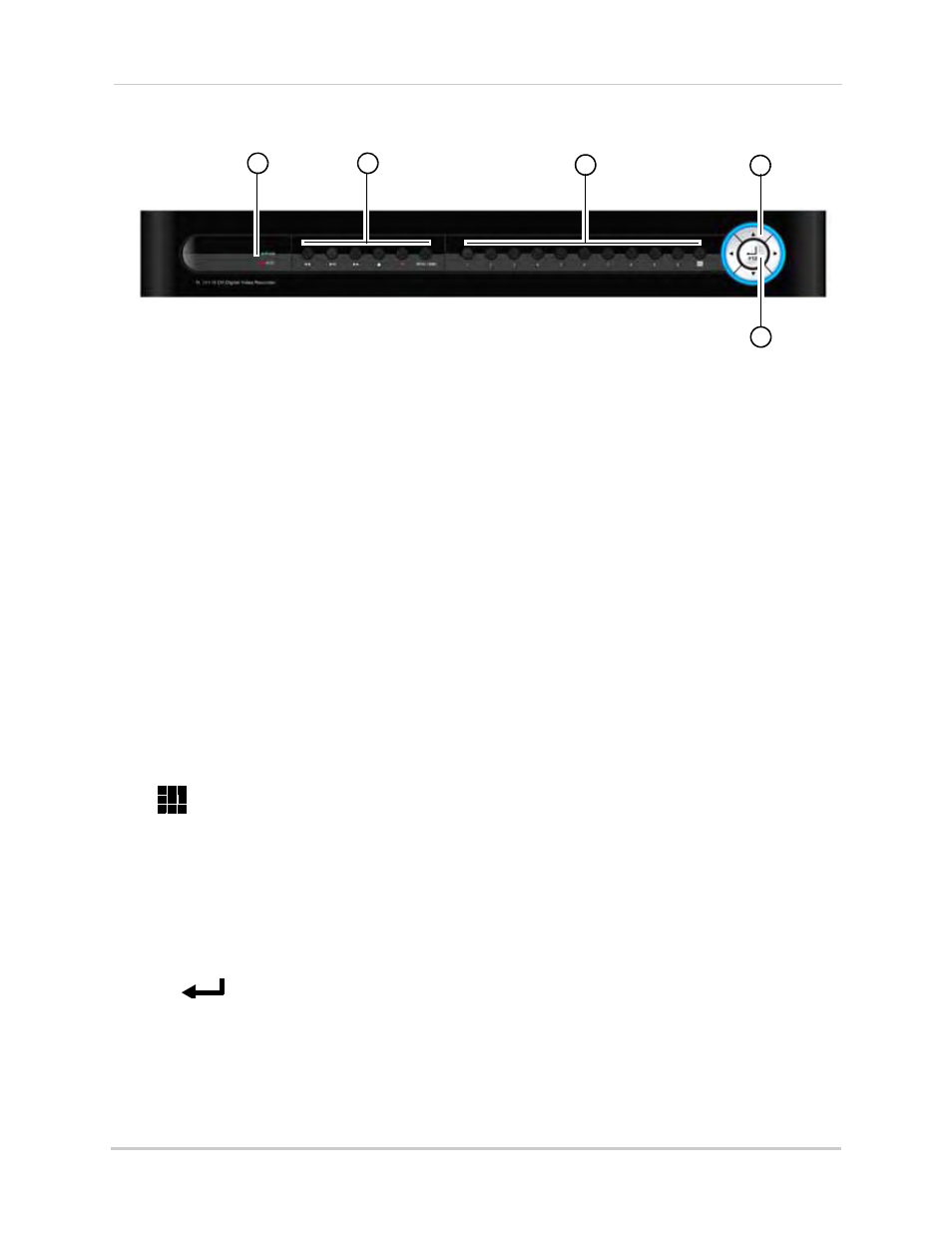

1 IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR : Power LED
• HDD : Hard disk activity LED
2 Menu & Playback Controls:
• : In Playback mode, press for reverse playback. Press repeatedly to speed up video.
• : In Playback mode, press to Play video. Press again to pause video playback
• : In Playback mode, press to fast forward video. Press repeatedly to speed up video.
• : In Playback mode, press to stop video playback.
• In main viewing mode, press to stop DVR recording.
• :Press to start/ resume recording. When the channel displays a red box with the letter "C",
the channel is recording.
• Menu / Esc: Opens the system menu / or press to exit a menu selection
3 Channel Controls:
• Ch1 ~ Ch9: Press to view channel in full screen mode.
• To access channels 10 and greater:
Press 0 for channel 10 or 1+0 for channel 10, 1+1 for
channel 11, 1+2 for channel 12 etc.
• Press to view video in channels in Quad view (channels 1-4 , 5-8, 9-16), or split screen
mode (channels 1-16), To switch viewing modes, press the button repeatedly.
4 Navigation Buttons:
•
S
: Press to move cursor up
•
T
: Press to move cursor down
•
W
: Press to move cursor left
•
X
:Press to move cursor right
5 PTZ/ :
• Within system menus: Press to confirm a selection.
• In the main viewing mode, press to open the System Information window.
• In the main viewing mode, press and hold for 6 seconds to open the PTZ menu.
3 1 2 4
5
