Connecting Cameras
Connecting BNC Cameras
To install BNC cameras to your system:
1
Connect the male power connector on the BNC extension cable to the female power
connector on the camera.
• Connect the BNC connector to the camera.
2
Connect the female power connector on the BNC extension cable to the power adapter.
• Connect the BNC connector to the BNC port on the system.
3
Plug the power adapter to a power outlet.
Connecting and Removing BNC cables
BNC (Bayonet Nut Connector) is a special connector that locks on to the system port, and
cannot be accidently removed.
To connect or remove a BNC connector:
• Push the BNC connector firmly into the BNC port and simultaneously twist the connector
clockwise to tighten.
• To remove a BNC connector from a BNC port, push and simultaneously twist the connector
counter-clockwise to loosen the BNC connector.

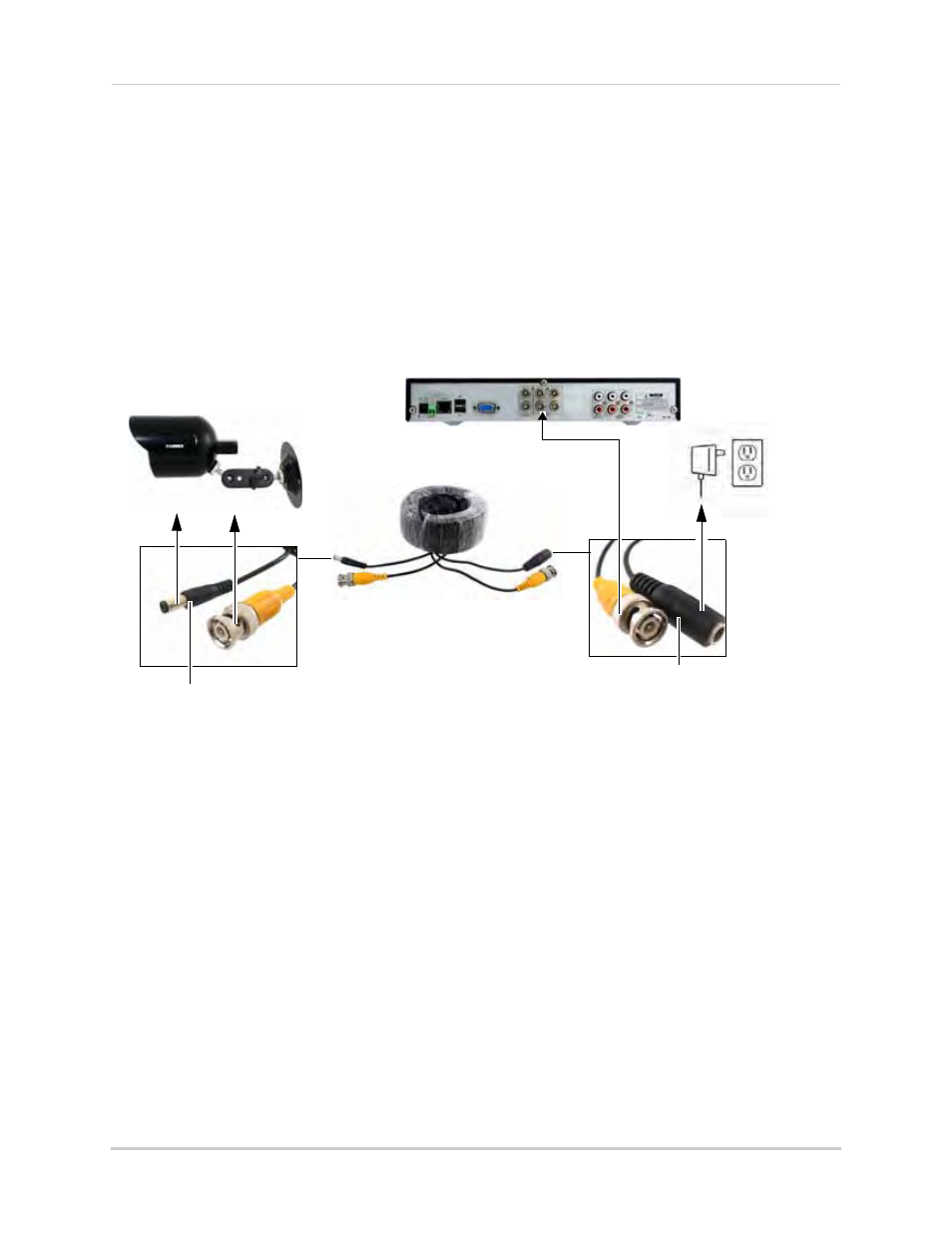

BNC Extension cable
Female power connector
Digital Video Recorder
Male power connector
