90
Mobile Apps

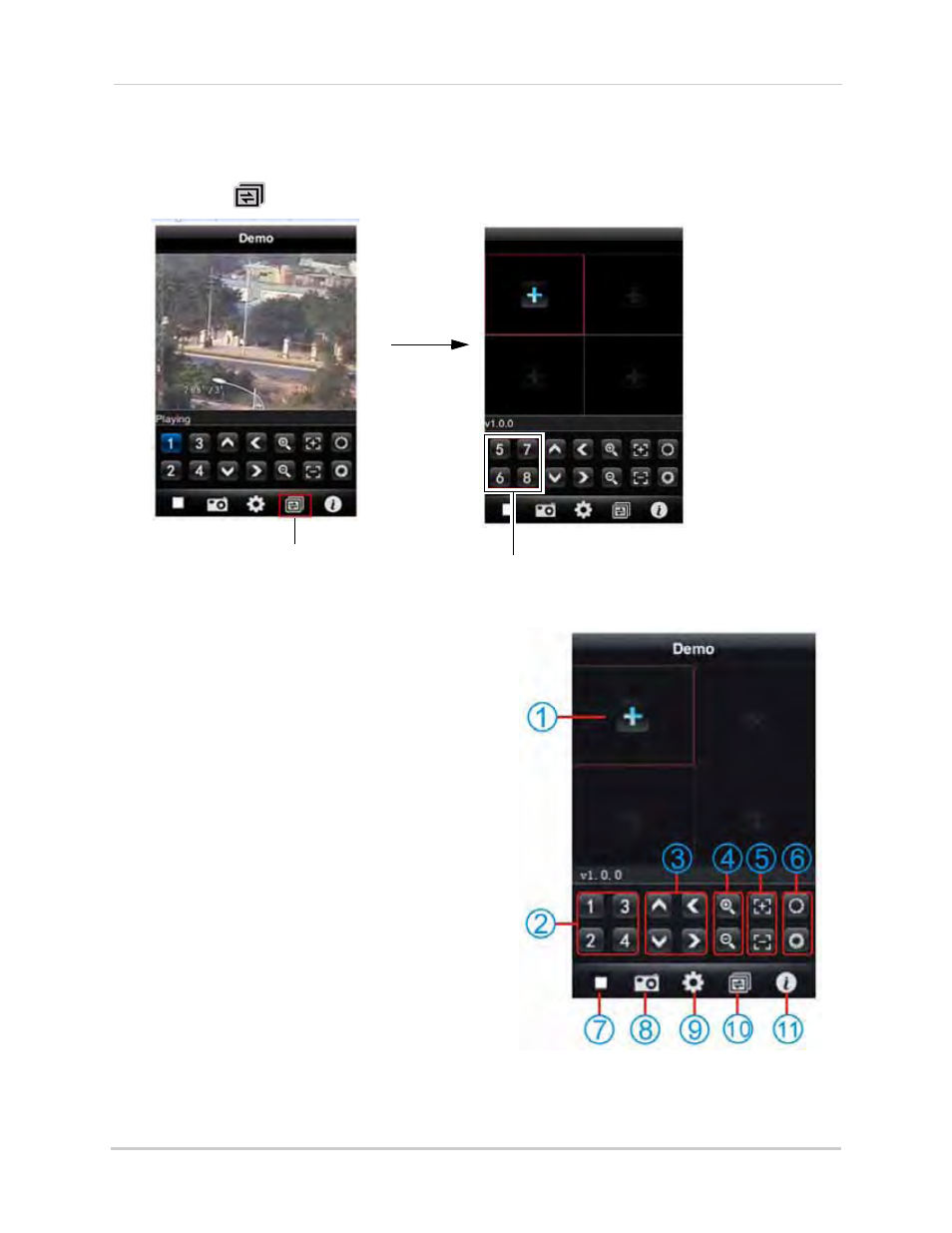

Changing channels in Quad View
• Touch the button repeatedly to display channel 1~4, 5~8, 9~12, 13~16.
Interface Overview
1 Add Device: Touch to add a DVR channel.
2 Channel List: Touch to view channel in full
screen.
3 Pan & Tilt camera (PTZ only).
4 Zoom in/out (PTZ only).
5 Focus (PTZ only).
6 Iris (PTZ only).
7 Disconnect : Disconnects channel.
8 Snapshot: Takes an image of the channel.
9 Setup: Touch to enter the setup menu.
10 Channel button : Touch to change the quad
channel numbers (Ch 1~4, 5~8, 9~16).
11 System info : Display system information.
Touch here to change quad view
channels
Channel 5~8
