Page 135: Configuring video margins

121

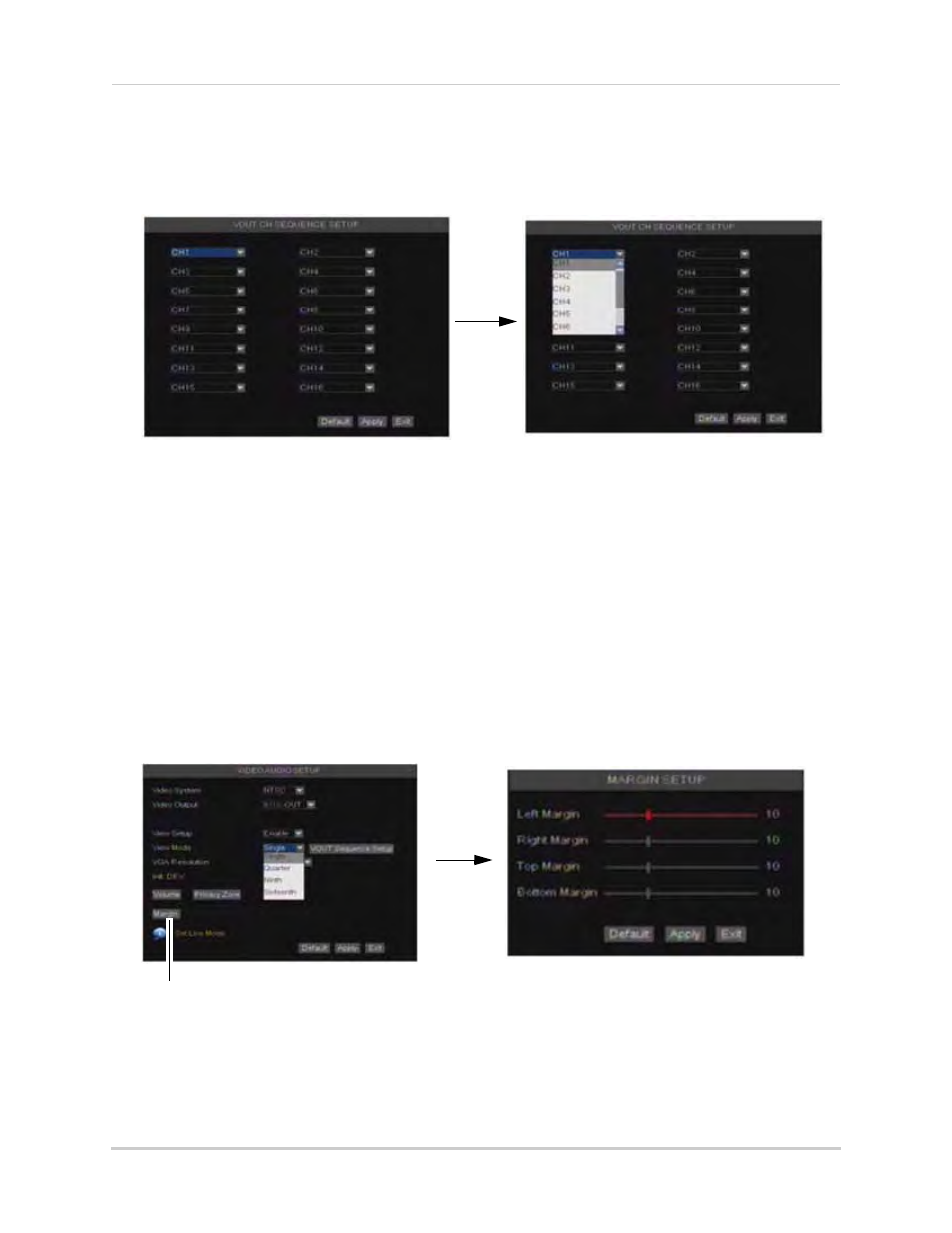

Appendix M: Assigning camera channels (16 Ch. only)
4
In the channel drop-down menus, select the channels that you wish re-arrange.
• For example, selecting CH8 in the channel 1 drop-down menu will change the channel 1
channel to display channel 8.
5
Click Apply to save your settings.
Configuring Video Margins
If you connect your DVR to a BNC monitor, you can adjust the video margins.
To adjust video margins:
1
From the A/V setup menu, click Margin.
2
Drag the sliders to adjust the Left, Right, Top and Bottom margins.
3
Click Apply to save your settings.
NOTE: If you select MAIN-OUT as your Video Output, you can
configure a maximum of 16 channels.
NOTE: If you select SPOT-OUT as your Video Output, you can
configure a maximum of 9 channels.
MAIN OUT menu shown. SPOT OUT menu will have a maximum
of 9 configurable channels.
Margin
